Summary of Contents for Bosch F.01U.323.385

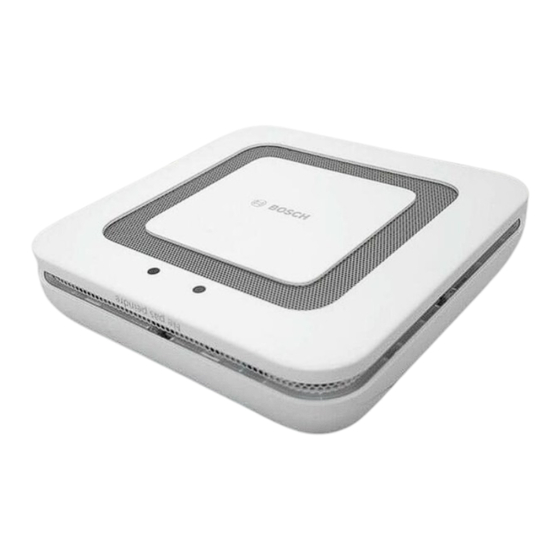

- Page 1 Bosch Smart Home Twinguard Starter Set Instruction Manual...
- Page 2 Before you start you need to make ▶ Start the Bosch ▶ Connect the Gate- ▶ Scan the QR code sure you have installed the Bosch Twinguard App way to the power on the back of the Twinguard App. You also need to supply and WiFi Gateway.
- Page 3 (VOC) of the air. The Gateway enables you to interconnect multiple Twinguard Smoke Alarms, while the Bosch Twinguard App enables you to conveniently view their status on your mobile. You can therefore reassure yourself that everything is OK at home, no matter where you are.
-
Page 4: Table Of Contents
10.3 Switching off the Smoke the Gateway ......28 2.2 Twinguard ......... 16 8.1 Mounting instructions ....40 Alarm ........54 5.1 Starting the Bosch 8.2 Fixing with screws ..... 46 3.0 Warning notices ......18 Twinguard App ......30 11.0 Product details .....55 9.0 Maintenance instructions ..48... -
Page 5: Product Description
1.0 PRODUCT DESCRIPTION The Twinguard Starter Set contains The product reliably warns you of The Gateway connects your Twinguard The Gateway has the following a Twinguard Smoke Alarm and a potential fires in your home. If smoke to the internet and other Twinguards functions: Gateway. - Page 6 The forwarding of alarms from alarm to alarm and to mobile devices will only work when the Gateway is switched on. You can find more detailed information about your products and how best to use them at: www.bosch-smarthome.com Up to 24 Twinguard Smoke Alarms can be connected to one Gateway.
-
Page 7: Intended Use
▶ Follow the safety instructions and in residential buildings. It should only the directions in this manual and the be used together with original Bosch Bosch Twinguard App to ensure that Smart Home components. the product is set up correctly ▶... -
Page 8: In The Box
2.0 IN THE BOX 2.1 Gateway Gateway Power cable Network cable 2 screws, 2 plugs Please check that all products are in the box and are undamaged. To install the Gateway you will need an internet connection and a Please mount only parts that are in immaculate condition. standard WiFi router with a free LAN port. -
Page 9: Twinguard
2.2 Twinguard Twinguard Smoke Alarm Mounting bracket 2 screws, 2 plugs Please check that all products are in the box and are undamaged. Batteries (6 x 1,5 V AA Alkaline) are already included and can be Please mount only parts that are in immaculate condition. replaced as necessary. -
Page 10: Warning Notices
3.0 WARNING NOTICES 3.2 Safety instructions 3.1 Explanation of symbols Warning. The Gateway or Twinguard should not be dismantled. Incase of fault, This alerts you to danger. please contact our customer service team on 00800 843 762 78. Please observe the intended use. Info. -
Page 11: Indicators And Controls
4.0 INDICATORS AND CONTROLS 4.1 Gateway product overview Item Part Explanation LED 1 Status indicator for wireless connection LED 2 Status indicator for internet connection LED 3 Activity indicator LED 4 – LED 5 – Activation button For activating the Gateway during setup Power connection Port for micro USB power cable LAN port... - Page 12 Item Part Explanation Rubber pads For providing grip Mounting holes For fitting to the wall Reset button For resetting the Gateway to the factory settings QR code Scan for device identification Base...
-
Page 13: Twinguard Product Overview
4.2 Twinguard product overview Item Part Explanation 360° LED For indicating the status: red, orange, green, blue light strip Operating button For accessing and carrying out functions Alarm Audible signal Alarm LED Red: alarm or fault Emergency To ensure safe passage out of the danger zone lighting Mounting bracket For ceiling installation... - Page 14 Item Part Explanation Battery – compartment Red plastic pin For activating the Twinguard QR code Scan for device identification Battery compartment can only be closed when all batteries have been inserted.
-
Page 15: Installation And Set Up The Gateway
5.0 INSTALLATION AND SET UP THE GATEWAY Before you start Make sure that you download the Bosch Twinguard App. You will need it for the entire installation and configuration. Für Android-Geräte Für Apple iOS-Geräte ▶ Load up Google Play ▶ Load up the App Store ▶... -
Page 16: Starting The Bosch Twinguard App
There must be a functions Wireless network and internet connection in order for warnings to be sent in the event of a potential fire. Robert Bosch Smart Home GmbH are not able to offer a guarantee on the time it will take for this notification to be transmitted. -
Page 17: Set Up The Gateway
5.2 Set up the Gateway Insert the network cable into the Connect the Gateway to the power When prompted to do so by the app, Gateway and into a free LAN port supply using the USB power cable and please scan the QR code on the base on your router. -
Page 18: Activating The Gateway
WiFi network that your Gateway is already connected to. The app will prompt you to activate to the cable ports on the back of the Follow the instructions in the Bosch This will require scanning the the Gateway. To do so, please press Gateway once. -
Page 19: Activating The Twinguard
6.1 Activating the Twinguard 7.0 FIXING THE GATEWAY 7.1 Mounting instructions Ensure the Gateway is installed in a location that provides a good connection between it and the Gateway. If the connection is lost, notifications cannot be sent. When prompted by the app, activate The Gateway can be used lying flat or the Twinguard Smoke Alarm by remov- mounted on the wall. - Page 20 7.2 Wall mounting When choosing a mounting location and when drilling, pay attention to potential electrical cables and/or supply lines that could be behind the wall. Base On the base of the Gateway there to the wall. Please use the enclosed ▶...
-
Page 21: Mounting Instructions
8.0 MOUNTING THE TWINGUARD 8.1 Mounting instructions It is best practice to install several smoke alarms in your home to be fully protected. As a minimum we recommend that they are installed in every Bedroom, Kids room and in all hallways that serve as an escape route. - Page 22 > 1m The Smoke Alarm should be mounted on the ceiling, its important to note certain factors when choosing the best position. > 20° > 20° ▶ Mount the device in the center of the ▶ In rooms that are divided into ceiling.
- Page 23 In order to prevent injury, the mounting instructions in this instruction manual must be followed and the general safety regulations observed. When choosing a mounting location and when drilling, pay attention to potential electrical cables and/or supply lines that could be behind the wall.
-
Page 24: Fixing With Screws
8.2 Fixing with screws “Click” ▶ Hold the mounting bracket in the ▶ Drill the holes and insert the plugs ▶ Now fit the Smoke Alarm to the ▶ When you hear a “Click” your desired position ▶ Position the mounting bracket and mounting bracket, align and rotate Twinguard is mounted correctly ▶... -
Page 25: Maintenance Instructions
9.0 MAINTENANCE INSTRUCTIONS 9.1 Visual inspection We recommend you inspect and test your Twinguard on a monthly ▶ The smoke inlet openings along ▶ Check for any damage and that the basis. the 360° light strip and the sound bracket is still firmly fixed in place. outlets are not clogged (e.g. -
Page 26: Twinguard Functional Test
If the signals described do not appear, the Smoke Alarm is faulty: Please replace the product in this case. Always press the Smoke Alarm’s operating button in the center at the height of the Bosch logo. ▶ To do this, briefly press the oper- ▶ If the functional test was success- By initiating a test or muting an alarm minutes. -
Page 27: Alarm And Troubleshooting
Flash and fault codes, information about how to reset the Twinguard to lit up green. LEDs 3, 4 and 5 are inactive in this case. its factory settings plus much more can be found in the online FAQs at www.bosch-smarthome.com/faq... -
Page 28: Switching Off The Smoke Alarm
Alternatively you can silence the alarm Model name of Gateway FRS-Gateway the operating button in the center of using the Twinguard App. Article number F.01U.323.385 the Smoke Alarm to mute it. Rated voltage 5VDC Current consumption from max. 500 mA at 5V... -
Page 29: Declaration Of Conformity
11.2 Declaration of conformity Model name of Twinguard FRS-5000-OW-EN Hereby, Robert Bosch Smart Home The full text of the EU declaration of GmbH declares that the radio conformity is available at the following Article number F.01U.322.832 equipment type Bosch Smart Home... -
Page 30: Open-Source Software
All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided This Bosch Smart Home product uses that the following conditions are met: ▶ Redistributions of source code must retain the above copyright notice, this list of conditions and the open-source software. - Page 31 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY Software authored by David M. Gay EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF Copyright (c) 1991 by AT&T. MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, <COPYRIGHT HOLDER>...
-
Page 32: Environmental Protection And Disposal
Smoke Alarms in the online FAQs at following disclaimer in the documentation and/or other materials provided with the distribution. www.bosch-smarthome.com/faq THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. - Page 33 #BeSmarter...
- Page 34 INTERCONNECTED SMART HOME PRODUCTS Bosch Smart Home offers a range of products to make your life more comfortable, safer and more sustainable. More at www.bosch-smarthome.com...
- Page 35 Robert Bosch Smart Home GmbH Schockenriedstraße 17 70565 Stuttgart, Germany 00800 8437 6278 (free for UK) Mon–Fri 7:00 a m –8:00 pm 8:00 a m –6:00 pm service@bosch-smarthome.com...
