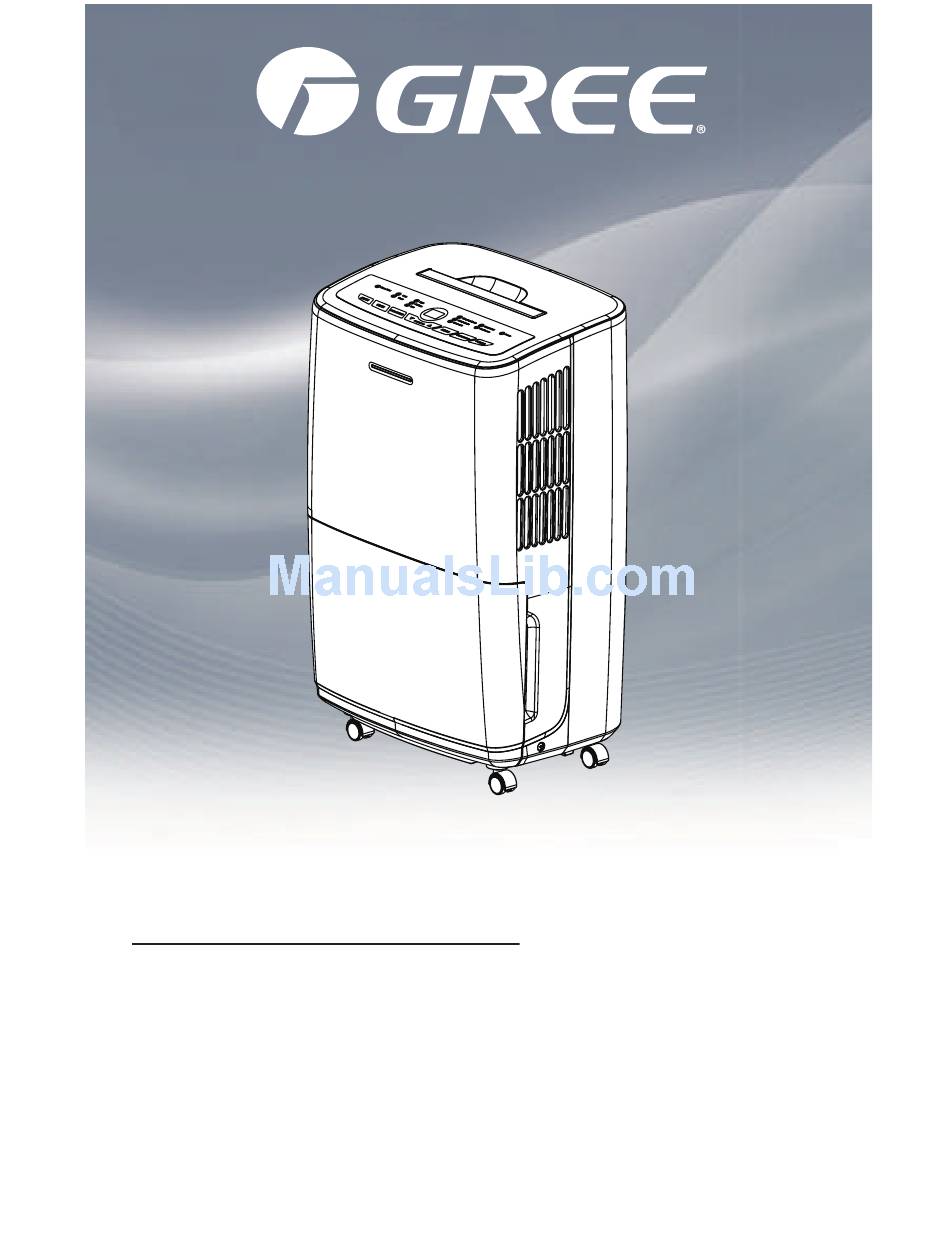

- Page 1 OWNER’S MANUAL Dehumidifier Model: GDN50AP-A3EBA1A GDN70AP-A3EBA1B Thank you for choosing our product. For proper operation, please read this manual carefully and keep it for future reference. Code GREE : 13-06094/095 00754_09//05/2016 © Copyright, GREE Canada, 2016...
- Page 2 OPERATION NOTICES ● Unit Placement..................1 ● Safety Precautions..................2 ● Parts ..................... 3 ● Check Before Operation.................4 OPERATION INSTRUCTIONS ● Operation Method...................5 ● Drainage Option..................8 MAINTENANCE ● Cleaning and Maintenance..............10 MALFUNCTION ● Troubleshooting..................12 ● Malfunction Codes................14 ● Warranty ....................15 Note: The images in this manual are only for reference. Please refer to actual products for specific details.
- Page 3 ● This dehumidifier is intended for indoor residential applications only. It should not be used for commercial or industrial applications. ● Place the dehumidifier on a smooth and level floor. ● A dehumidifier operating indoors will have no effect in drying an adjacent enclosed area, such as a closet.
- Page 4 ● Before operating, please check the power cord to make sure it complies with the requirement indicated on the nameplate. ● Before cleaning, please turn the unit off and unplug it. ● Make sure the power cord is not being compressed by any hard object. ●...
- Page 5 Front side CONTROL PANEL ON LIGHT FRONT GRILL WATER BUCKET ROLLER Back Side FILTER POWER PLUG...
- Page 6 Before operating, please first check that the float is properly placed. Below are the steps to do this: 1. Hold the handles on both sides of the water bucket and pull out in the direction indicated by the arrows. 2. Check that the float in the water bucket is properly placed. It may have shifted during transportation.
- Page 7 Bucket full light sleeping indicates bucket space needs to be lock on high, med living space mode on emptied or it is power on indicator and low fan mode on indicator not in the indicator indicator light light indicator light indicator light light proper place...
- Page 8 will lock the buttons. If this function is turned on, the Button Locked Indicator will come on and the display window shows LC, which will blink 3 times. Then the ambient humidity is displayed again. To turn off this function, hold simultaneously for 3s and the indicator will turn off.
- Page 9 Continuous button Press this button to set continuous dehumidify. Note: The drain hose must be installed to use the CO mode. Otherwise, unit will stop when the water bucket is full. FILTER Button Press this button to turn off the Filter Cleaning Indicator. (When the dehumidi- fier has been operating for 250 hours, the Filter Cleaning Indicator will light up to remind to clean the filter.) Other Instructions...
- Page 10 Option 1 Emptying Manually Notes ● Do not remove the bucket when the unit is in operation or has just stopped. This may cause the water to drip on the floor. ● Do not use the hose if using the water bucket to collect water. When the hose is connected, the water will drain out through it instead of into the bucket.
- Page 11 Other Instructions 1. The hose is not provided, so the user must procure it. [Size: The hose thread should have an outer diameter of 11/16 inches (1.0625 inches or 27.0mm), and a pitch of 11.5 TPI.] 2. Remove the bucket from the unit as instructed. 3.
- Page 12 Warning: ● Before cleaning, turn off the dehumidifier and disconnect the power to avoid electric shock. ● Do not wash the dehumidifier with water to avoid electric shock. ● Do not use volatile liquid (such as thinner or gasoline) to clean dehumidifier. Otherwise it will damage unit's appearance.
- Page 13 (3) After cleaning, replace the drain lid and handle and make sure the float in the water bucket is placed properly. The side with foam should be Float beneath the drain lid. Do not remove the foam from the float. 3.
- Page 14 ● Not all the following problems are malfunctions. PROBLEM POSSIBLE CAUSES Dehumidifier is not operating. ● Unit is operating in an area where the temperature Controls cannot be set. is higher than 32°C or lower than 5°C. ● Bucket is full. Noise suddenly starts when ●...
- Page 15 ● Dehumidifier does not start. PROBLEM Possible causes Solu ons ● Power is not supplied to ● Check if power is lost. If When using the drain hose, there is water in the dehumidifier or the yes, wait for the power to power plug is not well restore.
- Page 16 ● Unit's Malfunction Codes Malfunc on Display Unit's Name Code Condi on Possible Causes Display Window ● Ambient temperature sensor is loose or is poorly connected to the terminal of display board. ● An element of display board may have been put in upside Ambient down and caused short circuit.
- Page 17 ONE (1) year from the date of original purchase in Canada. During the warranty period, if the dehumidifier fails under normal use, GREE will, at its option, either repair the unit or replace it, free of charge, within a reasonable period of time after the dehumidifier is returned.
