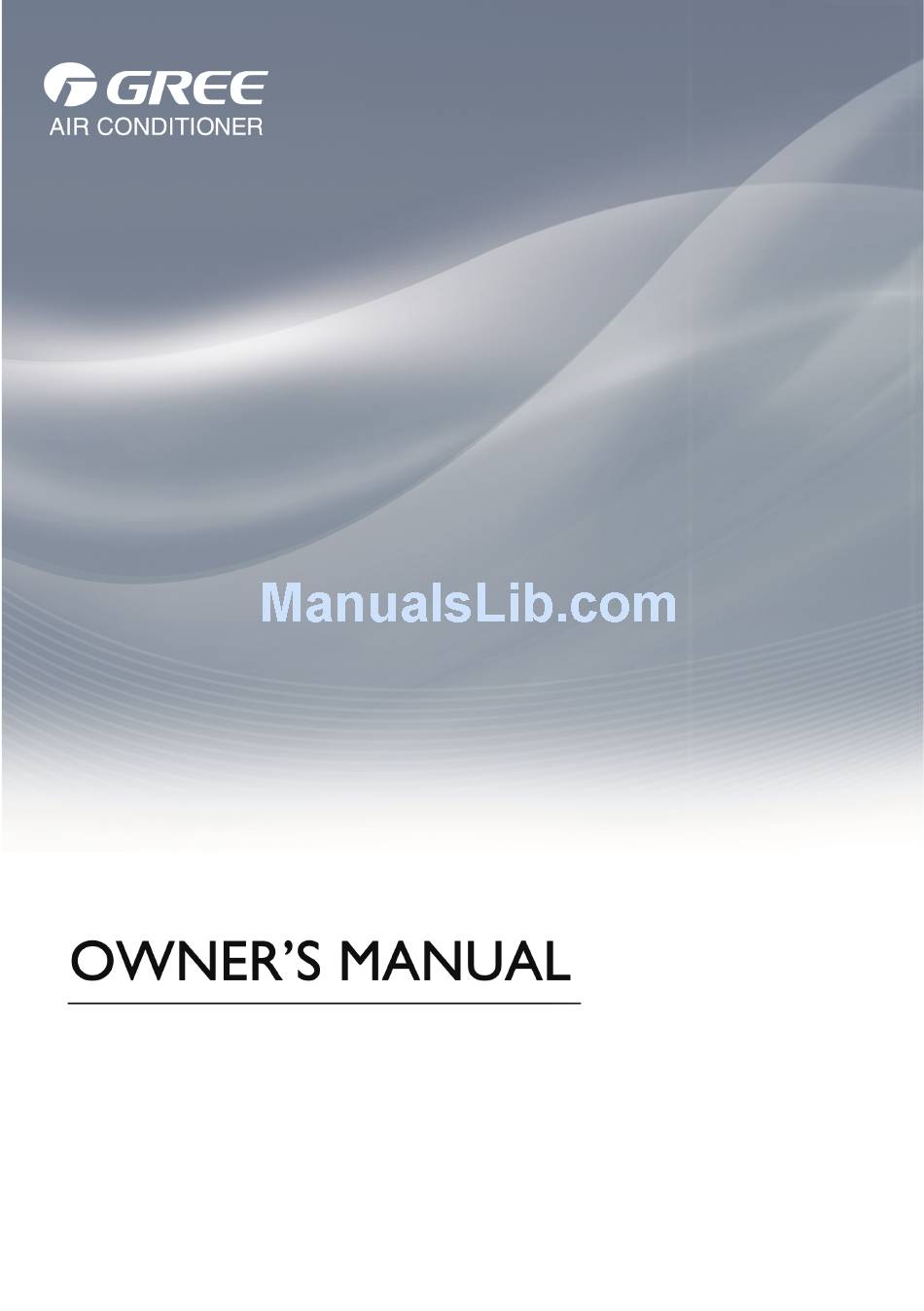

Dehumidifier
Model: GDN20AX-K4EBA1A、GDN20AX-K4EBA1B
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the Owner's Manual, please contact the local agent or visit
www.gree.com or sent email to global@gree.com.cn for electronic version.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gree GDN20AX-K4EBA1A
Summary of Contents for Gree GDN20AX-K4EBA1A
- Page 1 Model: GDN20AX-K4EBA1A、GDN20AX-K4EBA1B Thank you for choosing our product. For proper operation, please read and keep this manual carefully. If you have lost the Owner’s Manual, please contact the local agent or visit www.gree.com or sent email to global@gree.com.cn for electronic version.
-
Page 2: Table Of Contents
Content Operation Notices ● Safety Precautions..................1 ● Operation Area..................2 ● Parts Name.....................3 ● Check Before Operation.................4 Operation Instructions ● Operation Method...................5 ● Drainage Method ..................8 Maintenance ● Clean and Maintenance................11 Malfunction ● Troubleshooting..................13 ● Error Codes ..................15 Note: Graphics in this manual are only for reference. -
Page 3: Safety Precautions
Safety Precautions ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the app- liance in a safe way and understand the hazards involved. -
Page 4: Operation Area
Operation Area ● This dehumidifier is intended for indoor applications only. It should not be used for commercial or industrial applications. ● During operation, the nearby enclosed space, such as wardrobe can't be dehumidified. temperature will not below 5°C or above 35°C. -
Page 5: Parts Name
Parts Name Front Side Control Panel Air outlet Display Window Cover plate (continous drainge) Air-in grille Back Side Fixing hole of power cord Water Bucket Power cord... -
Page 6: Check Before Operation
Check Before Operation aced. Below are the checking steps: 1. Hold the handles on both sides of the water bucket and pull it out following the arrow direction. moved a little after long-time transportation. If it's not placed properly, move it to the correct position by hand. -
Page 7: Operation Method
Operation Method Display Window Bucket Full Indicator Speed Indicator Filter Cleaning Dehumidify mode indicator Timer Indicator Indicator High Med Low Smart Cont Quiet Dry Timer ON/OFF Water Full Filter Clean Mode Humidity Timer ON/OFF Notes: ● Water bucker must be correctly installed for operation. ●... - Page 8 Humidity Button Press Humidity button to set your required humidity. If hold Humidity button, humidity can be set in 10% increment among 30%-80% circularly. After that, the set humidity will be displayed for 5s. Mode Button Press Mode button can set 4 kinds of dehumidify mode - Smart, Cont., Quiet and Dry.
- Page 9 Other Instructions 1. Auto Stop When bucket is full, remove the unit or not placed the unit correctly or the humidity is 5% lower than the set humidity, the unit will stop operation automatically. 2. Memory Function If power failure, all settings will be memorized. After power recovery, the unit will resume operate according to the memorized settings.
-
Page 10: Drainage Method
Drainage Method Method 1: Drain water through water bucket Notes: ● Do not remove the bucket when unit is in operation or has just stopped. ● Do not use the hose if using water bucket to collect water. When the hose is connected, water will be drained out through it instead of into the bucket. - Page 11 Method 2: Drain water through drain hose This unit is connect with drain outlet. User can purchase the drain hose whose inner diameter is 14mm (length is 1.3-1.5m) and assemble it on the drain adapter to drain condensate water. When assembling the continuous drain equipment, do turn off the unit and pull out the power plug.
- Page 12 3. Insert the drain hose into drainage adapter to make sure the water won't leak out. The horizontal height of drain hose should not be higher than the drain outlet. Do not block the drain outlet to make the condensate water can be drained out smoothly.
-
Page 13: Clean And Maintenance
Clean and Maintenance Warning: ● Before cleaning, turn off the dehmidifier and disconnect the power. Otherwise, it may lead to electric shock. Otherwise it will damage unit's appearance. 1. Grille and Case To clean the case: When there is dust on the case, use soft towel to dust it off;... - Page 14 3. Clean air filter Use dust catcher to absorb dust on the surface of air filter. If the air filter is very dirty, clean it with warm water melted with neutral detergent and then dry it completely. 4. Install air filter Insert the clasp at lower part of air filter into the unit and then press the air filter downwards until you have heard a sound.
-
Page 15: Troubleshooting
Troubleshooting ● Not all the following problems are malfunctions. Problem Possible Causes ● Unit is operating in an area where temperature is higher than 35°C or lower than 5°C. Controls can not be set. ● Bucket is full. ● Noise will rise if compressor has just started. Noise suddenly rises during ●... - Page 16 ● Dehumidifier can't be started up. Problem Possible Causes Solution ● Check if power is lost. If yes, wait for the power to restore. ● If not, check whether the ● Power is not supplied for power circuit or power socket Power indicator is has been damaged.
-
Page 17: Error Codes
Error Codes ● Unit's Malfunction Codes Display Code Malfunction Unit's Possible Causes Name Condition Display Window ● Ambient temperature sensor is loosen or is poorly connected with the terminal of display board. ● Some element of display board Ambient may have been put upside down Temperature and cause short circuit. - Page 18 Display Code Malfunction Unit's Possible Causes Name Condition Display Window Freon-lacking ● Refrigerant is leaking. protection ● System is blocked The compr- essor stops; ● Ambient operation condition is the fan mo- bad. tor keeps on Overload ● The evaporator and condenser running.
- Page 19 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn www.gree.com 66160000222...
