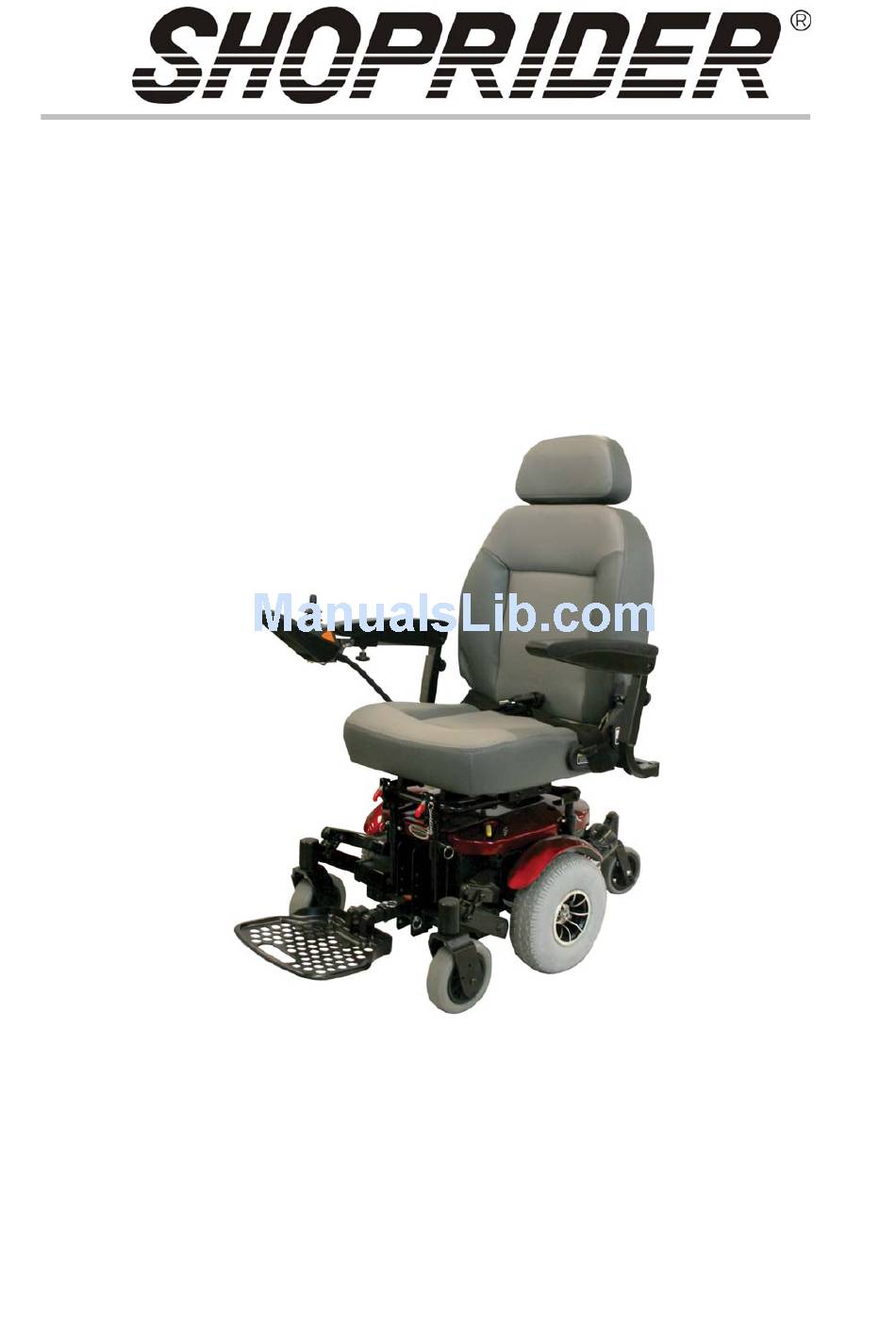

Page 1: User Manual
ISO9001 ISO14001 ISO13485 CERTIFIED Mid-wheel Powerchair USER MANUAL 858WM... -
Page 2: Table Of Contents
ELECTROMAGNETIC INTERFERENCE FROM RADIO WAVES ....5 POWERED CHAIR ELECTROMAGNETIC INTERFERENCE (EMI) SAFETY INSTRUCTIONS .............. 6-7 FEATURE GUIDE................8 GETTING TO KNOW YOUR SHOPRIDER……………………………………… 9-10 ........11-12 JOYSTICK CONTROLLER (nVSI) OVERVIEW FREEWHEEL LEVERS ..............13 DRIVING YOUR POWERCHAIR............14 CARING FOR YOUR POWERCHAIR ..........15 BATTERIES AND BATTERY CHARGING ........ -
Page 3: Introduction

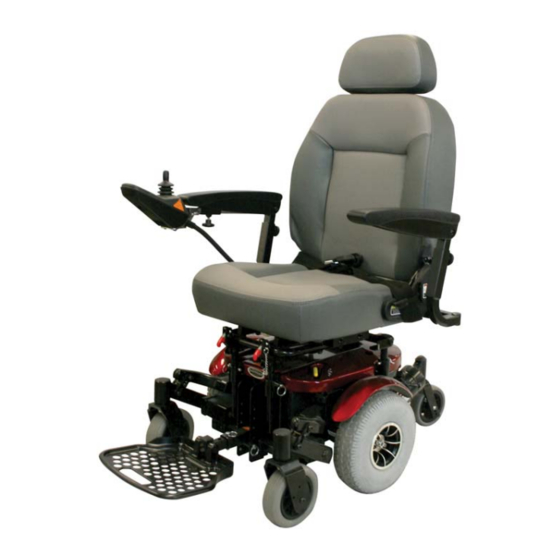

The innovative design of the includes articulating double frames that move in any direction. This intelligent feature keeps all 6 wheels on the ground at all times, even when driving on uneven terrain, hence the name 858WM. Combine this with the programmable joystick controller, fully adjustable footplate and arm assemblies, flat- free tires, deluxe reclining captain seat, easy access batteries and quick-change color shrouds. -
Page 4: Emi Warning
ISO9001 ISO14001 ISO13485 CERTIFIED EMI WARNING Electromagnetic Interference (EMI) from Radio Wave Sources Powered electric chairs may be susceptible to electromagnetic interference, which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones. -
Page 5: Powered Chair Electromagnetic Interference (Emi)
ISO9001 ISO14001 ISO13485 CERTIFIED Powered Chair Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense the closer one moves to the transmitting antenna (source), the EM fields from hand-held radio sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the Powerchair’s control system while using these devices. -
Page 6: Safety Instructions
ISO9001 ISO14001 ISO13485 CERTIFIED SAFETY INSTRUCTIONS • Do not carry passengers. • This mobility Product is intended to assist you. For your own safety, please read the Owner’s Manual before using the Powerchair. If in any doubt, contact your supplier directly for advice. - Page 7 ISO9001 ISO14001 ISO13485 CERTIFIED • Do not connect any foreign device to the charging port. This could cause failure of the device, the Powerchair and personal injury. • It is not allowed to have any person sitting in the Powerchair when transported by a vehicle, otherwise any injury or damage that might result.
-
Page 8: Feature Guide
ISO9001 ISO14001 ISO13485 CERTIFIED FEATURE GUIDE (1) Removable Armrests with Width, Height & Angle Adjustment (2) nVSI Joystick Controller (3) Charging Port (4) Deluxe Reclining Captain Seat (5) Standard Angle Adjustable Foot Plate (6) Front Castor Assembly (7) Mid-Wheel Assembly (8) Rear Castor Assembly (9) Removable shroud... -
Page 9: Getting To Know Your Shoprider
ISO14001 ISO13485 CERTIFIED GETTING TO KNOW YOUR SHOPRIDER POWERCHAIR The Seat and Arm Assemblies The seat is built for comfort, style, and stability. Your seat comes with a reclining back for comfort. The flip-up arm-rests are especially built for easy side access for getting in and out of your Powerchair, with the greatest of ease. - Page 10 ISO9001 ISO14001 ISO13485 CERTIFIED Seat Height Adjustment and Easy Battery Access 1. Tightening knob that allows for the seat to be removed if needed, if not, there is a pivot point that allows for the seat to move up and away from the base. 2.
-
Page 11: Joystick Controller (Nvsi) Overview
ISO9001 ISO14001 ISO13485 CERTIFIED JOYSTICK CONTROLLER (nVSI) OVERVIEW (FIG. 1) Fig. 1 On / Off Button (1) This button turns the joystick controller (hereinafter referred to as nVSI) on and off. Do not use this button to stop the Electric Wheelchair, except in an emergency. Battery Gauge (2) The battery gauge shows you that the Electric Wheelchair is switched on. - Page 12 ISO9001 ISO14001 ISO13485 CERTIFIED Joystick (7) This controls the speed and direction of the Electric Wheelchair. Push the joystick in the direction you want to go. The further you push it, the faster the speed will be. Releasing the joystick will automatically engage brakes and stop the Electric Wheelchair. Charger &...
-
Page 13: Freewheel Levers
ISO9001 ISO14001 ISO13485 CERTIFIED FREEWHEEL LEVERS The Powerchair will not function while the drive mechanism is disengaged (in freewheel). Both left and right sides must be in drive mode for power chair to operate. Otherwise the Powerchair motors will spin, but the unit will not move, until both freewheel levers are engaged. -
Page 14: Driving Your Powerchair
ISO9001 ISO14001 ISO13485 CERTIFIED DRIVING YOUR SHOPRIDER POWERCHAIR Ramps, Slopes and Cambers The indoor/outdoor Powerchair has the ability to negotiate ramps, slopes and cambers of a low to medium gradient. It is of the utmost importance that the following points are observed: 1. -
Page 15: Caring For Your Powerchair
ISO9001 ISO14001 ISO13485 CERTIFIED CARING FOR YOUR SHOPRIDER POWERCHAIR Tires Since your tires are flat free tires, there is no need to ever worry about tire air-pressure. When tread is worn, it is highly recommended to replace tires. General Maintenance and Lubrication ... -
Page 16: Batteries And Battery Charging
BATTERIES & BATTERY CHARGING Batteries The Shoprider Powerchairs are designed to operate on two 12 volt/50Ah sealed lead acid aka SLA (AGM or gel-cell type) maintenance free batteries. The life of the batteries may be affected by temperature, terrain, weight of user, driving methods, and care of batteries. - Page 17 ISO9001 ISO14001 ISO13485 CERTIFIED Battery Charging (Units Equipped with Off-Board Charger) Familiarize yourself with the safety information below prior to using the battery charger. Safety Information 1. Read the battery charger instructions in this manual and in the manual supplied with the charger prior to charging the batteries.
- Page 18 ISO9001 ISO14001 ISO13485 CERTIFIED Charging Instructions 1. Connect the charger to the charging port at the front of the nVSI joystick (item 8 in Fig.1) 2. Plug the charger into the wall outlet. 3. The charging process will start automatically. Charger Indication Lights Red On or Flashing: Battery reversed polarity or Battery voltage (>30V) fault Yellow On: While in charging...
-
Page 19: Troubleshooting
ISO9001 ISO14001 ISO13485 CERTIFIED TROUBLESHOOTING If a system trip occurs, you can find out what has happened by counting the number of flashes of the battery gauge. Below is a list of self-help actions. Try to use this list before you contact your provider. -
Page 20: Locking / Unlocking The Powerchair
ISO9001 ISO14001 ISO13485 CERTIFIED LOCKING / UNLOCKING THE POWERCHAIR The nVSI controller can be locked to prevent unauthorized use. The locking method is via a sequence of key presses and joystick movements, as detailed below. To lock the wheelchair: While the controller is switched on, depress and hold the on/off button. After 1 second the controller will bleep. -
Page 21: Specifications
0.8 hpx2 (Reference Only) As a part of our ongoing product improvement initiative, Shoprider reserves the right to change specifications and design without prior notice. All specifications and dimensions are approximate. The actual driving range varies with the factors shown below: 1. -
Page 22: Disclaimer
Warranty is only valid when genuine Shoprider parts are used. All modifications on the Powerchair, unless approved and authorized by Shoprider will automatically invalidate the warranties.
