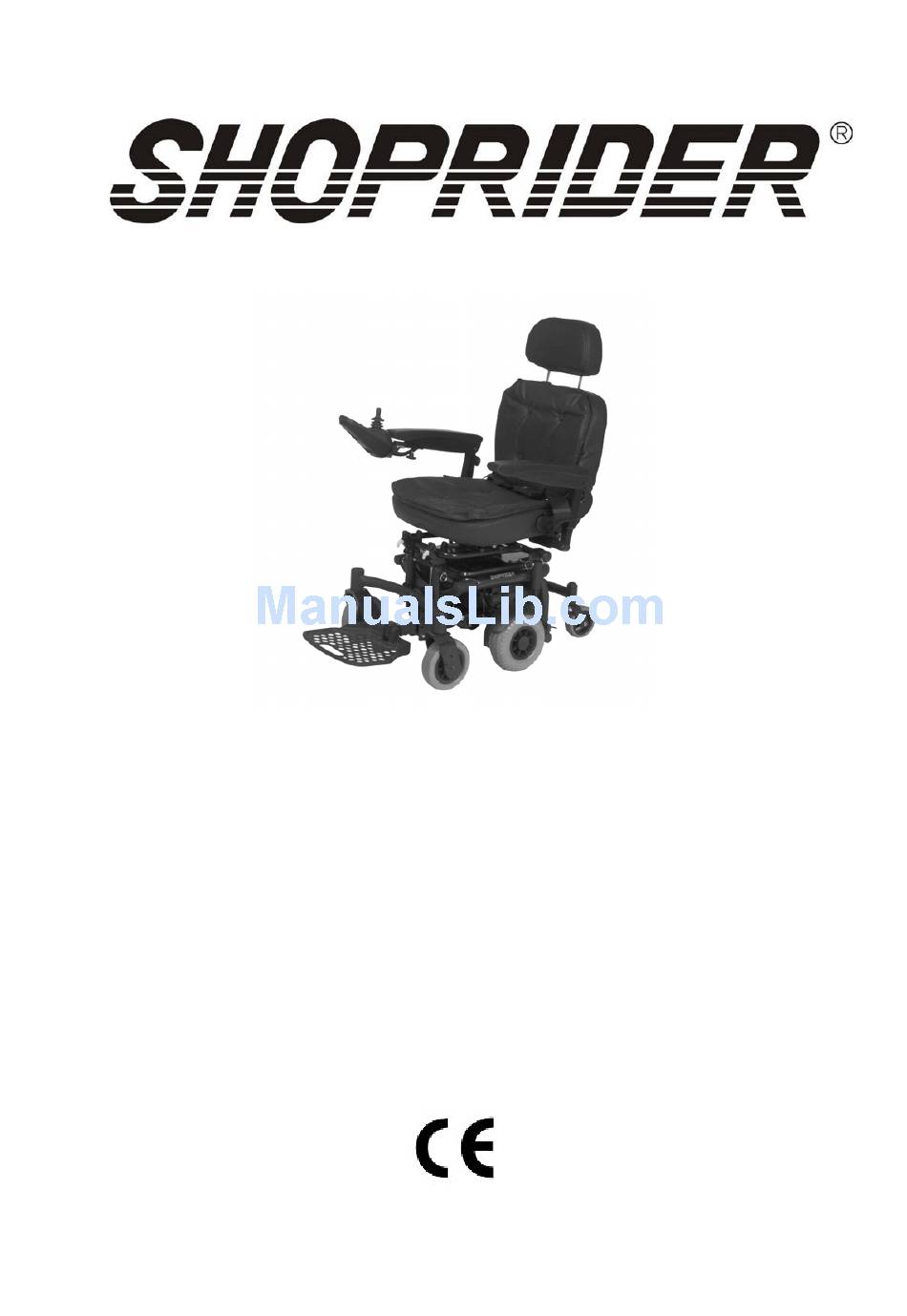

Sena
Model No: 888WNLS
USER MANUAL
Please ensure this manual is read and understood before
using the scooter.
Apr 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sena 888WNLS and is the answer not in the manual?

Questions and answers

Related Manuals for Shoprider Sena 888WNLS

Summary of Contents for Shoprider Sena 888WNLS

  • Page 1 Sena Model No: 888WNLS USER MANUAL Please ensure this manual is read and understood before using the scooter. Apr 2015...

  • Page 2: Table Of Contents

    Contents Page Introduction Intended Use Technical Specification Feature Guide Safety Advice Adjustments  Footrest Settings  Arm Adjustments  Seat Height & Back Angle Controls 7- 8 Electro-magnetic Brake Release (Freewheel Operation) Starting to Drive  Getting started  Moving off and steering ...

  • Page 3: Introduction

    INTRODUCTION ® Congratulations on your purchase of the Shoprider power wheelchair. This model incorporates style and comfort with the latest in technological innovation. This model is able to turn in the smallest of spaces indoors and outdoors due to it’s centre wheel drive layout. It is possible to climb kerbs of up to 2.5cm (1”).

  • Page 4: Feature Guide

    FEATURE GUIDE 1. Adjustable height, width and angle armrests 2. VSI Joystick controller 3. Adjustable height, reclining seat 4. On board battery charger lead 5. Adjustable height and depth footplate 6. Left hand freewheel lever 7. 8” puncture proof centre drive wheels 8.

  • Page 5: Safety Advice

    SAFETY ADVICE  Read this manual carefully before using your powerchair  Turn the controller off when transferring to and from the powerchair  Select a slow speed when going down steep gradients of 6° (10%) or less  Keep your feet on the footplate when you are moving. Never stand on the footplate.

  • Page 6: Adjustments

    ADJUSTMENTS Footrest The footrest on the powerchair can be adjusted for height, depth and angle. To adjust the depth pull out the locking pin (1) and move to the required depth. Ensure the holes are aligned and replace the locking pin. To adjust the height pull out the locking pin (2) and slightly pull out the footplate.

  • Page 7: Seat Height & Back Angle

    Continued….. Seat Height (We recommend that this operation be carried out by two persons) The seat can be set at three different heights. Rear View Firstly, ensure that the power is switched off and carefully unplug the joystick at the rear of the powerchair.
  • Page 8 Joystick Arm Control (VSI Controller) Battery Gauge (1) This is a 10-segment display, which indicates if the VSI is switched on and gives the state of charge of the battery. Also, any faults in your power chair’s electrical system are also indicated by this display.

  • Page 9: Electro-Magnetic Brake Release (Freewheel Operation)

    Continued….. VSI ‘Lock’ Function Your VSI controller is equipped with a lock function to prevent any unauthorised use. To lock the controller:  When the power is on, press and hold the power button for about 1 second until the system bleeps. ...

  • Page 10: Controls

    STARTING TO DRIVE YOUR POWER WHEELCHAIR Getting Started Select an area with plenty of space. Ensure that when seated in the in the powerchair you are in a comfortable position and can easily and freely operate the controls. Moving off and steering Turn the power on and check that your batteries are fully charged.

  • Page 11: Reaching And Stretching

    Continued….. Kerb Descent We do not recommend that you descend a kerb (up to 2.5cm) in reverse mode. Please use a ramp/drop-kerb in forward motion to descend. If a kerb descent is absolutely necessary in these circumstances an attendant must be present to aid the manoeuvre. Warning: NEVER reverse down a kerb or ramp onto a main thoroughfare.

  • Page 12: Dismantling

    Disassembly & Assembly Warning: We advise caution when disassembling and lifting items. You must ensure that the person undertaking the action is able to safely and correctly handle the weight to avoid any personal injury. Ensure that the power is switched off and the joystick is dis-connected before dismantling.

  • Page 13: Patient Transfer

    Storage and Use We recommend that your powerchair is stored in a dry environment, preferably covered and away from extremes of temperature and humidity. Avoid using the powerchair in rain or snow wherever possible and avoid leaving the powerchair in damp environments such as shower/bath rooms for prolonged periods of time.

  • Page 14: Maintenance

    Continued….. Caution: Always charge the batteries in a well-ventilated indoor area. You must still maintain charging the batteries even if the scooter is not to be used for a prolonged period of time (2 to 3 weeks). Failure to do so could result in permanent damage and render the batteries unusable.

  • Page 15: Troubleshooting

    Product Life Expectancy Your powerchair has been designed to provide the user with a long, reliable life provided it is correctly maintained and regularly serviced by an authorised dealer. However due to inevitable wear and tear and technological improvements it is recommended that the average usable life of this powerchair is five years.

  • Page 16: Further Information

    VSI Error Codes Your VSI controller has the ability to diagnose possible errors in the electrical system, which may prevent your powerchair from operating. These are displayed on the battery gauge. The fault is shown against the number of lights flashing on the display. Battery Gauge Possible Fault 10 bars flash...
  • Page 17 Continued….. General Use Take heed of the information given in this manual regarding safety and the maintenance of your powerchair. If adhered to, your powerchair should give you years of reliable mobility. Storage and General Care We recommend that the powerchair is always stored in a dry environment away from damp, preferably in the home to protect the chassis and other components from corrosion or water damage.
  • Page 18 Continued….. Adjustment of your lap belt Ensure that you are sitting back fully into the seat with the pelvis as upright as possible and not leaning to one side. Close the buckle and position the belt so that the hip bones can be felt above the lap belt.
  • Page 19 Notes...
  • Page 20 Serial No: Purchase Date: Dealer Stamp Distributed by:- Roma Medical Aids Ltds York Road, Bridgend Industrial Estate, Bridgend CF31 3TB Tel: 01656 674488 Fax: 01656 674499 Email: sales@romamedical.co.uk www.romamedical.co.uk Shoprider® reserves the right to change specifications without prior notice KB&SXXXXX...
