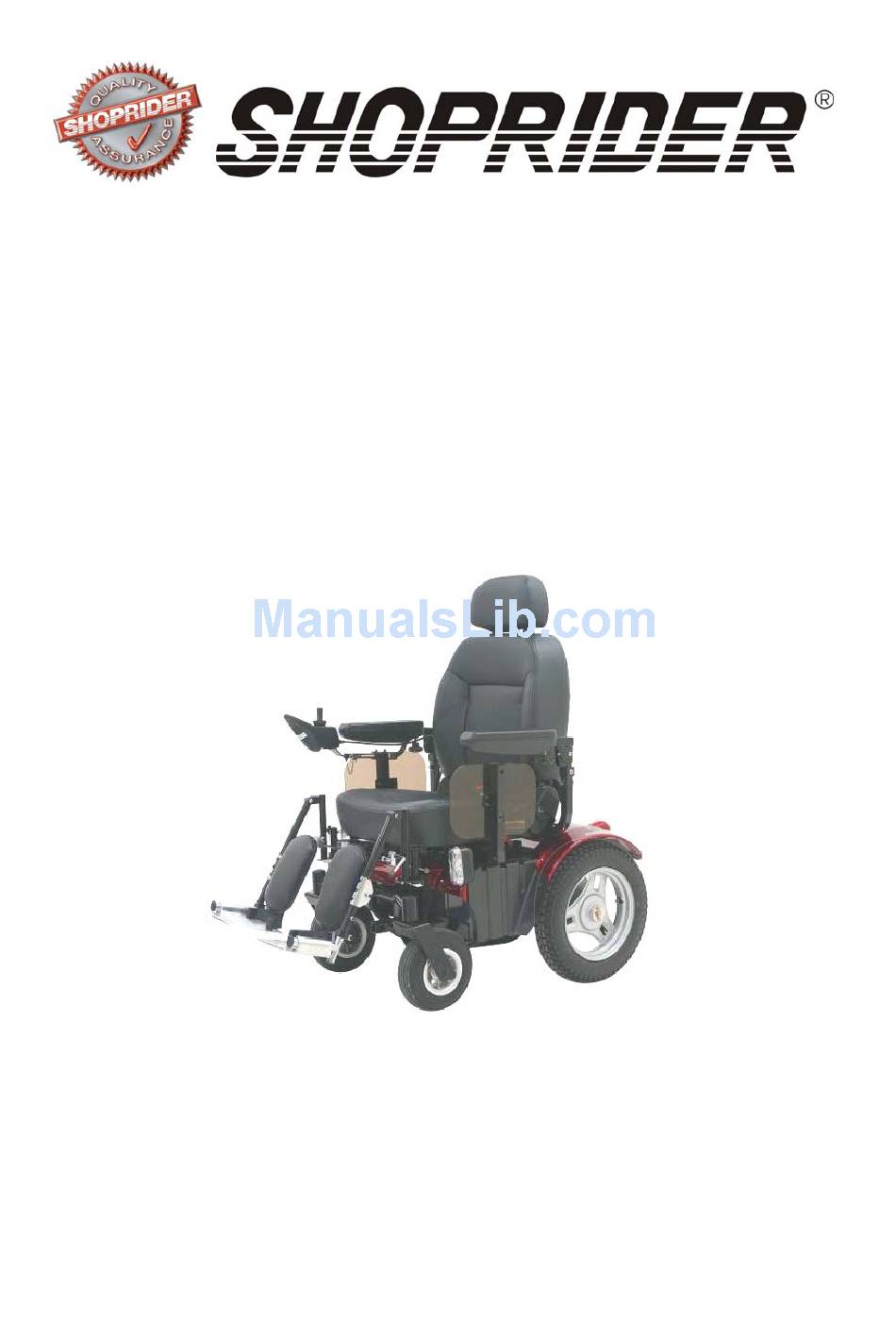

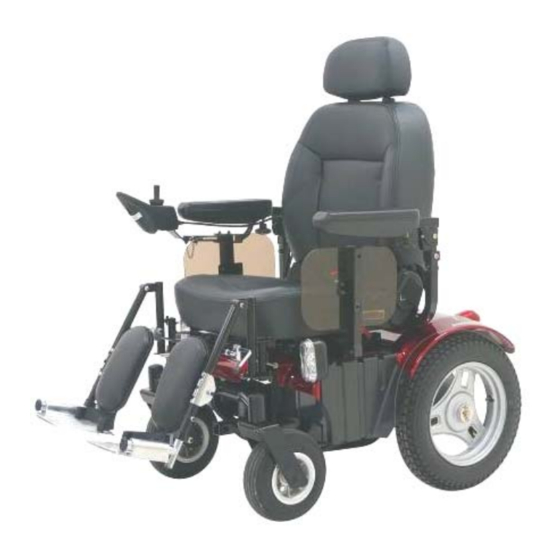

  • Page 1 Mid-Wheel Powerchair USER MANUAL 888WNLD...

  • Page 2: Table Of Contents

    ELECTROMAGNETIC INTERFERENCE FROM RADIO WAVES......4 POWERED CHAIR ELECTROMAGNETIC INTERFERENCE (EMI)....5 SAFETY INSTRUCTIONS................. 6-7 FEATURE GUIDE....................8 GETTING TO KNOW YOUR SHOPRIDER ............ 9-10 THE JOYSTICK CONTROLLER (Shark)............11-12 LOCKING / UNLOCKING THE JOY STICK CONTROLLER………………….13-14 DRIVE/FREEWHEEL MECHANISM..............15 DRIVING YOUR POWERCHAIR...............

  • Page 3: Introduction

    The innovative design of the 888WNLD includes articulating double frames that move in any direction. This intelligent feature keeps all 6 wheels on the ground at all times, even when driving on uneven terrain, hence the name 888WNLD. Combine this with the programmable joystick controller, adjustable arm assemblies, flat-free tires, deluxe reclining captain seat, easy access to batteries and quick-change color shrouds for a complete powerchair package.

  • Page 4: Emi Warning

    EMI WARNING Electromagnetic Interference (EMI) from Radio Wave Sources Powered electric chairs may be susceptible to electromagnetic interference, which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.
  • Page 5 Power Chair Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense the closer one moves to the transmitting antenna (source), the EM fields from hand-held radio sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the Powerchair’s control system while using these devices.

  • Page 6: Safety Instructions

    Safety Instructions Please use your Powerchair often and let it expand your horizons. The more mobility your Powerchair brings, the happier you will be! But, with all things, observing a few rules will ensure safe maneuvering. So please… (1) Do not drive the Powerchair without reading this instruction manual. (2) Do not use the joystick in an erratic manner when going up or down an incline.
  • Page 7 Important Notes The Shoprider Powerchair is designed to assist in your individual mobility needs. Any usage outside of the guidelines in this manual may result in damage to the chair or injury to the user or third party.

  • Page 8: Feature Guide

    Feature Guide (Fig. 1) (10) Fig. 1 (1) Headrest (adjustable with selected height) (2) Armrest (adjustable with selected width, angle and height) (Flips Up for Easy Sideways Transfer) Shark Joystick (mounted onto the armrest) & Main Controller (mounted onto the frame) (4) Charging Port (5) Deluxe Reclining Captain Seat (6) Footrest...

  • Page 9: Getting To Know Your Shoprider

    The flip-up arm-rests are especially built for easy side access for getting in and out of your 888WNLD, with the greatest of ease. The arm-rests have a built in height adjustment knob, that adjusts the arm pad to a comfortable level for the driver.
  • Page 10 Joystick Controller Overview On / Off Button (1) This button turns the joystick controller (hereinafter referred to as Shark joystick) on and off. Do not use this button to stop the Powerchair, except in an emergency. Speed Decrease Button (2) This button decreases the maximum speed.
  • Page 11 Powerchair. Charging Port (10) for Off-Board Charger Only plug a Shoprider certified charger into this port. This port should not be used as a power supply for any other electrical devices. Disregarding this will void the warranty of...
  • Page 12 Locking/Unlocking the Joystick ****PLEASE NOTE**** LOCK MODE: The Shark joystick can be locked to prevent unauthorized use. The locking method is achieved through a sequence of key presses and joystick movements, as detailed below. To lock Powerchair controller:  While the power is ON, press and hold the Power button for 4 seconds. ...

  • Page 13: Drive/Freewheel Mechanism

    Drive/Freewheel Mechanism The Powerchair will not function while the drive mechanism is disengaged (in freewheel). Both left and right sides must be in drive mode for power chair to operate. Otherwise the Powerchair motors will spin, but the unit will not move, until both freewheel levers are engaged.

  • Page 14: Driving Your Powerchair

    Driving Your Shoprider Powerchair Ramps, Slopes and Cambers The indoor/outdoor Powerchair has the ability to negotiate ramps, slopes and cambers of a low to medium gradient. It is of the utmost importance that the following points are observed: 1. Never attempt to go up or down an incline which has a rough, wet or slippery surface (loose gravel, tree roots, wet grass, polished floor, etc.)
  • Page 15  Check the 888WNLD’s batteries on a regular basis. For extended battery life, it is highly recommended that the batteries be fully charged after each use. If the...

  • Page 16: Batteries And Battery Charging

    Batteries & Battery Charging Batteries The Powerchair is supplied with 4 x 35/36 Ah sealed lead acid, maintenance free batteries. These are located under the seat in the center of the Powerchair. For easy handling, Velcro or plastic carrying straps may be provided to assist in installation or removal of the batteries.
  • Page 17 Battery Charging (Units Equipped With Off-Board Charger) Familiarize yourself with the safety information below prior to using the battery charger. Safety Information 1. Read the battery charger instructions in this manual and in the manual supplied with the charger prior to charging the batteries. 2.
  • Page 18 Charging Instructions 1. Connect the charger to the charging port at the front of the Shark Joystick (item 10 in Page 11) 2. Plug the charger into the wall outlet. 3. The charging process will start automatically. Charger Indication Lights The indicator light on the charger gives advice as follows: Red On or Flashing: Fault Yellow On: While in charging...

  • Page 19: Troubleshooting

    Troubleshooting If Shark Joystick is installed: The Self-Help Guide (Table 1) is intended to assist in the location of a fault that may occur in a certain part of the Powerchair. Flash codes indicate the nature of an abnormal condition directly from the Shark joystick Information Gauge.

  • Page 20: Specifications

    Output Power of Motor x2 0.8 hpx2 (Reference Only) As a part of our ongoing product improvement initiative, Shoprider reserves the right to change specifications and design without prior notice. All specifications and dimensions are approximate. Includes the anti-tip wheel.

  • Page 21: Quarterly Inspection

    Quarterly Inspection For your own safety, quarterly inspection and service on the product with inspection by an authorized dealer is strongly recommended. There may be a nominal dealer inspection fee for this service not covered by warranty. Maintenance records (below) should be kept at all times.

  • Page 22: Notes

    NOTE...
  • Page 23 NOTE...
  • Page 24 NOTE...

  • Page 25: Disclaimer

    ZAE Robert Steichen, 5 rue Bommel, L-4940 Hautcharage, Luxembourg +352 26 65 65 77 P/N: ® ® © Copyright PIHSIANG MACHINERY MFG. CO., LTD. 2015. All rights Reserved. SHOPRIDER / PIHSIANG are registered trademarks of PIHSIANG MACHINERY MFG. CO., LTD.
