Page 1: User Manual

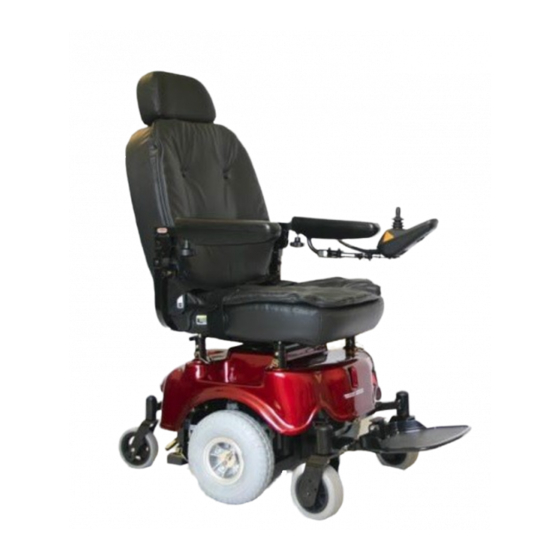

ISO9001 ISO14001 ISO13485 CERTIFIED MEDICAL POWER WHEELCHAIR User Manual WIZZ STREAMER 888WNL 888WB STREAMER STREAMER 888WAB 888WSB JETSTREAM-M JETSTREAM-L 888WAM 888WAL... -
Page 2: Table Of Contents
ISO9001 ISO14001 ISO13485 CERTIFIED CONTENTS INTRODUCTION FEATURE GUIDE EMI WARNING SAFETY INSTRUCTIONS WARNING, CAUTION AND INDICATION LABEL LOCATION PREPARATION FOR USE ADJUSTMENT PROCEDURES OPERATION INSTRUCTIONS DISASSEMBLY INSTRUCTIONS BATTERIES AND BATTERY CHARGING TROUBLESHOOTING SPECIFICATION QUARTERLY INSPECTION DISCLAIMER page 2 page 2 --4 page 5 –... -
Page 3: Introduction
ISO9001 ISO14001 ISO13485 CERTIFIED INTRODUCTION Congratulations on your purchase of our product. This Powerchair is the ultimate combination of style and comfort. The short wheelbase allows easy maneuverability within the smallest spaces both in and outdoors. The middle/rear drive wheels and electromagnetic brakes provide a safe and comfortable ride. - Page 4 ISO9001 ISO14001 ISO13485 CERTIFIED FEATURE GUIDE STREAMER (888WB/888WSB) Armrest (adjustable with selected width, length, angle and height) Joystick Controller Charging Port Captain Seat Assembly Footrest (adjustable with selected length and angle) Front Castor ( 8”） Headrest (adjustable with selected height)
- Page 5 ISO9001 ISO14001 ISO13485 CERTIFIED FEATURE GUIDE JEETSTREAM-M (888WAM) Headrest (adjustable with selected height) Backrest (adjustable with selected height) Joystick Controller Armrest (adjustable height, width and angle selection) On-Board Charger w/ retractable cord Footrest Front Castor Rear Drive Wheel Anti-Tip Wheel...
-
Page 6: Emi Warning
ISO9001 ISO14001 ISO13485 CERTIFIED EMI WARNING ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE SOURCES Medical Power Wheelchairs (Hereinafter referred to as “Powerchair”) may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. - Page 7 ISO9001 ISO14001 ISO13485 CERTIFIED EMI WARNING POWERCHAIR ELECTROMAGNETIC INTERFERENCE (EMI) Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the Powerchair’s control system while using...
-
Page 8: Safety Instructions
ISO9001 ISO14001 ISO13485 CERTIFIED SAFETY INSTRUCTIONS Please use your Powerchair often and let it expand your horizons. The more mobility your Powerchair brings, the happier we will be! But, with all things, observing a few rules will ensure safe maneuvering. So please…... - Page 9 ISO9001 ISO14001 ISO13485 CERTIFIED SAFETY INSTRUCTIONS (20) Whenever a center bolt of the wheel assembly has been loosened, please replace a specified new bolt from authorized providers and secure with a torque of 240 ± 5 kg-cm together with Loc-tite 271 adhesive (or equivalent).
-
Page 10: Warning, Caution And Indication Label Location
ISO9001 ISO14001 ISO13485 CERTIFIED WARNING, CAUTION AND INDICATION LABEL LOCATION To ensure your safety and protect the Powerchair from damage, please find out and read the content of labels listed below before your first ride. Joystick Controller Chassis Shroud of WIZZ (888WNL) Fig. - Page 11 ISO9001 ISO14001 ISO13485 CERTIFIED WARNING, CAUTION AND INDICATION LABEL LOCATION Chassis Shroud of STREAMER (888WAB) Chassis Shroud of STREAMER (888WB/888WSB) Fig. 6 Fig. 7 ~10~...
- Page 12 ISO9001 ISO14001 ISO13485 CERTIFIED WARNING, CAUTION AND INDICATION LABEL LOCATION Chassis Shroud of JETSTREAM-L/M (888WAL/888WAM) YELLOW - CHARGING GREEN - CHARGED Fig. 8 ~11~...
-
Page 13: Preparation For Use
ISO9001 ISO14001 ISO13485 CERTIFIED PREPARATION FOR USE The Powerchair has many features designed to give the user maximum comfort. Adjustments can be made to the following parts of the Powerchair: (1) Footrest can be lengthened outward from the main frame in three positions. -
Page 14: Programmable Controller
ISO9001 ISO14001 ISO13485 CERTIFIED PREPARATION FOR USE NOTE: Before using the Powerchair for the first time, be sure the batteries have been connected. Charge the Powerchair for at least 6-8 hours prior to first time use. NOTE! Maximum efficiency can only be achieved with sufficient battery power and adequate run-up distance. -
Page 15: Adjustment Procedures
ISO9001 ISO14001 ISO13485 CERTIFIED ADJUSTMENT PROCEDURES FOOTREST ADJUSTMENTS (Fig. 9) LENGTH Pull out the safety pin (1) from the first hole in the footrest slide tube (2), adjust the footrest slide tube and refit the safety pin in the hole at the desired length. - Page 16 ISO9001 ISO14001 ISO13485 CERTIFIED ADJUSTMENT PROCEDURES FOOTREST ADJUSTMENTS (Fig. 11) LENGTH Pull out the safety pin (1) from the first hole in the footrest slide tube (2), adjust the footrest slide tube and refit the safety pin in the hole at the desired length.
- Page 17 ISO9001 ISO14001 ISO13485 CERTIFIED ADJUSTMENT PROCEDURES JOYSTICK CONVERSION (right to left or left to right) Beneath each of the arm pads there is a hand knob [Fig.10 (2)] used to adjust the length of the arm pad and secure the arm pad to the arm rest assembly. Remove the hand knob completely and slide off the arm pad.
-
Page 18: Operation Instructions
ISO9001 ISO14001 ISO13485 CERTIFIED OPERATION INSTRUCTIONS GETTING READY TO KNOW THE JOYSTICK CONTROLLER (VSI 50) On / Off Button (1) This button turns the joystick controller (hereinafter referred to as VSI) on and off. Do not use this button to stop the Powerchair, except in an emergency. -
Page 19: Getting Ready To Drive
ISO9001 ISO14001 ISO13485 CERTIFIED OPERATION INSTRUCTIONS Charging Port (8) for Off-Board Charger Only plug into this port with the qualified charger certified by the original manufacturer of the Powerchair. This port should not be used as a power supply for any other electrical devices. The behavior against the two statements as above will void the warranty of the Powerchair. -
Page 20: Disassembly Instructions
ISO9001 ISO14001 ISO13485 CERTIFIED DISASSEMBLY & ASSEMBLY INSTRUCTIONS COMPONENTS FOR WIZZ 888WNL (1) Reclining captain seat assembly with arm assembly. (2) Chassis shroud. (3) Rear Chassis Assembly. (4) Batteries. (5) Front Chassis Assembly. COMPONENTS FOR STREAMER 888WB/WAB/WSB (1) Captain seat assembly with arm assembly. -
Page 21: Disassembly Procedures
ISO9001 ISO14001 ISO13485 CERTIFIED DISASSEMBLY & ASSEMBLY INSTRUCTIONS DISASSEMBLY PROCEDURES WARNING! We advise caution when disassembling and lifting items. You must ensure that the person undertaking these actions is able to handle the weight. STEP 1 Ensure the area where the Powerchair is to be dismantled is spacious. -
Page 22: Batteries And Battery Charging
ISO9001 ISO14001 ISO13485 CERTIFIED BATTERIES & BATTERY CHARGING BATTERIES The Powerchair is supplied with 2 x 33/34/36 Ah gel, sealed lead acid, maintenance free batteries. These are fitted under the seat in the center of the Powerchair. For easy handling, Velcro or plastic carrying straps are provided to assist in fitting or removal. - Page 23 ISO9001 ISO14001 ISO13485 CERTIFIED BATTERIES & BATTERY CHARGING 1. Grasp the charging port cover and remove it from the charging port. 2. Plug AC power cord with female connector into the charging port shown as Fig.19. 3. Plug AC power cord with male connector into 110-volt wall outlet.
- Page 24 ISO9001 ISO14001 ISO13485 CERTIFIED BATTERIES & BATTERY CHARGING BATTERY CHARGING FOR STREAMER-888WB & STREAMER-888WSB (UNITS EQUIPPED WITH OFF-BOARD CHARGER) To recharge the Powerchair, connect the charger to the Charging Port at the front of the VSI referred to as (8) in Fig. 14. Switch on the charger.
-
Page 25: Troubleshooting
ISO9001 ISO14001 ISO13485 CERTIFIED TROUBLE SHOOTING The Self-Help Guide (Table 1) is intended to assist in the location of a fault that may occur in a certain part of the Powerchair. If after checking out the fault from the table below and the fault is still showing, do not use the Powerchair. - Page 26 ISO9001 ISO14001 ISO13485 CERTIFIED TROUBLE SHOOTING LOCK MODE: The VSI controller can be locked to prevent unauthorized use. The locking method is achieved through a sequence of key presses and joystick movements, as detailed below. To lock Powerchair controller: While the controller is switched on, depress and hold the on/off button.
-
Page 27: Specification
ISO9001 ISO14001 ISO13485 CERTIFIED SPECIFICATION ITEM Overall Length Inches Overall Width Inches Overall Height Inches Total Weight (w/ 36 Ah Batteries) Battery Weight Lbs*pcs Battery Capacity 12V_Ah x2 pcs Safe Climbing Angle Suggested User Weight (on the level road) Maximum Speed... -
Page 28: Quarterly Inspection
ISO9001 ISO14001 ISO13485 CERTIFIED QUARTERLY INSPECTION For your own safety, quarterly inspection and service on the product has to be performed and signed by an authorized provider. Maintenance records (Table 3) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement is not met. -
Page 29: Disclaimer
The preceding guidances are intended to assist you in the safe operation of this Powerchair. If you should have any questions about the correct operation of the Powerchair, please contact your authorized Provider Stamp SHOPRIDER MOBILITY PRODUCTS, INC 21184 S. FIGUEROA ST CARSON, CA 90745 800-743-0772 ©...
