Summary of Contents for Tornado CK LW 13/1 Roam

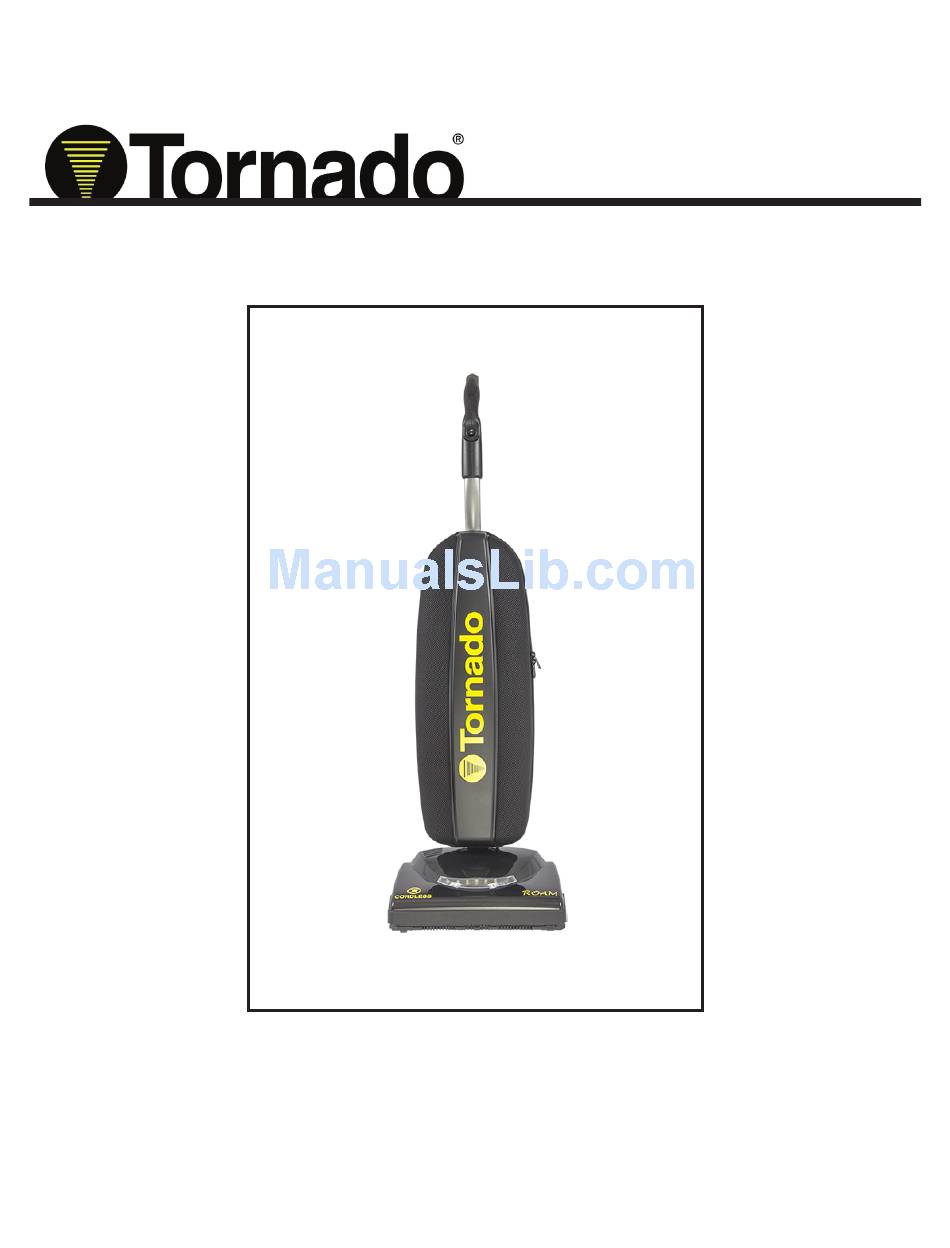

- Page 1 TORNADO INDUSTRIES, LLC 3101 WICHITA COURT FORT WORTH, TX 76140 PHONE: 800-VACUUMS FAX: 817-551-0719 WWW.TORNADOVAC.COM Form No. L7300AA 1/17 ©Tornado Industries, LLC. All rights reserved...
- Page 2 1. Except all Windshears™ Blowers, Storm, TV2SS, Side and Downdraft, Insulation Blowers, CV 30, CV 38, CK14/1 PRO, CK 14/2 PRO, SWM 31/9, CK LW13/1, CK LW 13/1 ROAM, CV 38/48 Dual, PV6, PV10, PV6 ROAM, Wall Mount Vacuum and all chargers are warranted for 1 (one) year for both parts and labor.
- Page 3 Use only as described in this manual. • Do not use charger with damaged cord or plug. If appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, contact an Authorized Tornado service center for service. •...
- Page 4 Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase.
- Page 5 DESCRIPTION OF THE VACUUM 1 Ergonomic Handle MATERIAL FINISH TACONY CORPORATION DESCRIPTION 2 On/Off Power Switch 1760 Gilsinn Lane, Fenton, MO 63026 DRAWN DATE 3 Bag Compartment UNLESS OTHERWISE SPECIFIED TACONY CORPORATION CLAIM RIGHTS IN THE MATERIAL DISC ISSUED DATE THIS DRAWING IS ISSUED FOR .5 mm RADII X.X .5mm...
- Page 6 ASSEMBLING THE VACUUM Attaching the Handle to the Vacuum • NOTE: Do not turn on the vacuum until it is com- pletely assembled. • The vacuum cleaner and the handle are packed separately and require assembly. • Remove the handle bracket by removing the two screws (Fig.
- Page 7 Battery Life Display • Press the button on the battery to illuminate the LED lights. • When the battery is fully charged there will be four (4) green lights and one (1) red light showing (Fig. Fig. 3 • As the battery is discharged, during use, the number of green lights showing will reduce from four (4) to none (0).
- Page 8 OPERATION Bare Floor Cleaning Your vacuum is equipped with a squeegee to improve its effectiveness in cleaning bare floors (Fig. 1). Vacuuming Under Furniture Your vacuum will lay flat on the floor for effective MATERIAL FINISH cleaning under beds and tables. DRAWN DATE Fig.
- Page 9 MAINTENANCE AND CARE Replacing the Vacuum Bag NOTE: Turn the vacuum off and remove the battery. • Unzip the bag compartment. • Remove the used vacuum bag by pulling the green bag collar tab away from the vacuum (Fig. 1). Slide the used bag out of the bag holder which automati- Fig.
- Page 10 MAINTENANCE AND CARE Removing and Reinstalling the Battery NOTE: Turn the vacuum off. If the battery charger is plugged into the charge point on the vacuum, remove the charger from the charge point before remov- ing the battery. The battery can be removed and charged independently from the vacuum.
- Page 11 MAINTENANCE AND CARE Removing and Reinstalling the Bottom Plate WARNING! To Reduce the Risk of Electrical Shock or Injury from Moving Parts, Turn the Vacuum Off and Remove the Battery Before Servicing or Cleaning the Vacuum. To Remove the Bottom Plate: •...
- Page 12 If your squeegee splits or begins to look worn, simply slide the worn squeegee from its track and slide a new one into the track. If you have trouble installing the new MATERIAL squeegee, please contact an Authorized Tornado Service DRAWN Center. ISSUED SCALE 0.250...
- Page 13 3101 Wichita Court may or may not apply based on your specific machine. If any defect occurs, the warranty is voided if service is Fort Worth, TX 76140 attempted by non-Authorized Tornado Service Centers. Fax: 817-551-0719 or online at ©2017 Tornado Industries. All rights reserved.
