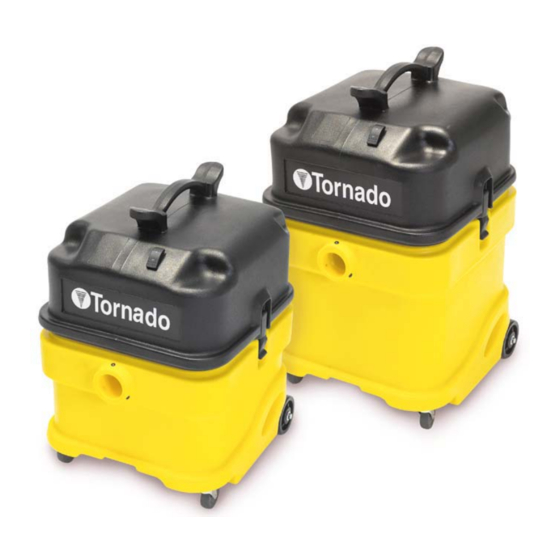

Taskforce 1200 & 1700 wet/dry vacuums

Advertisement

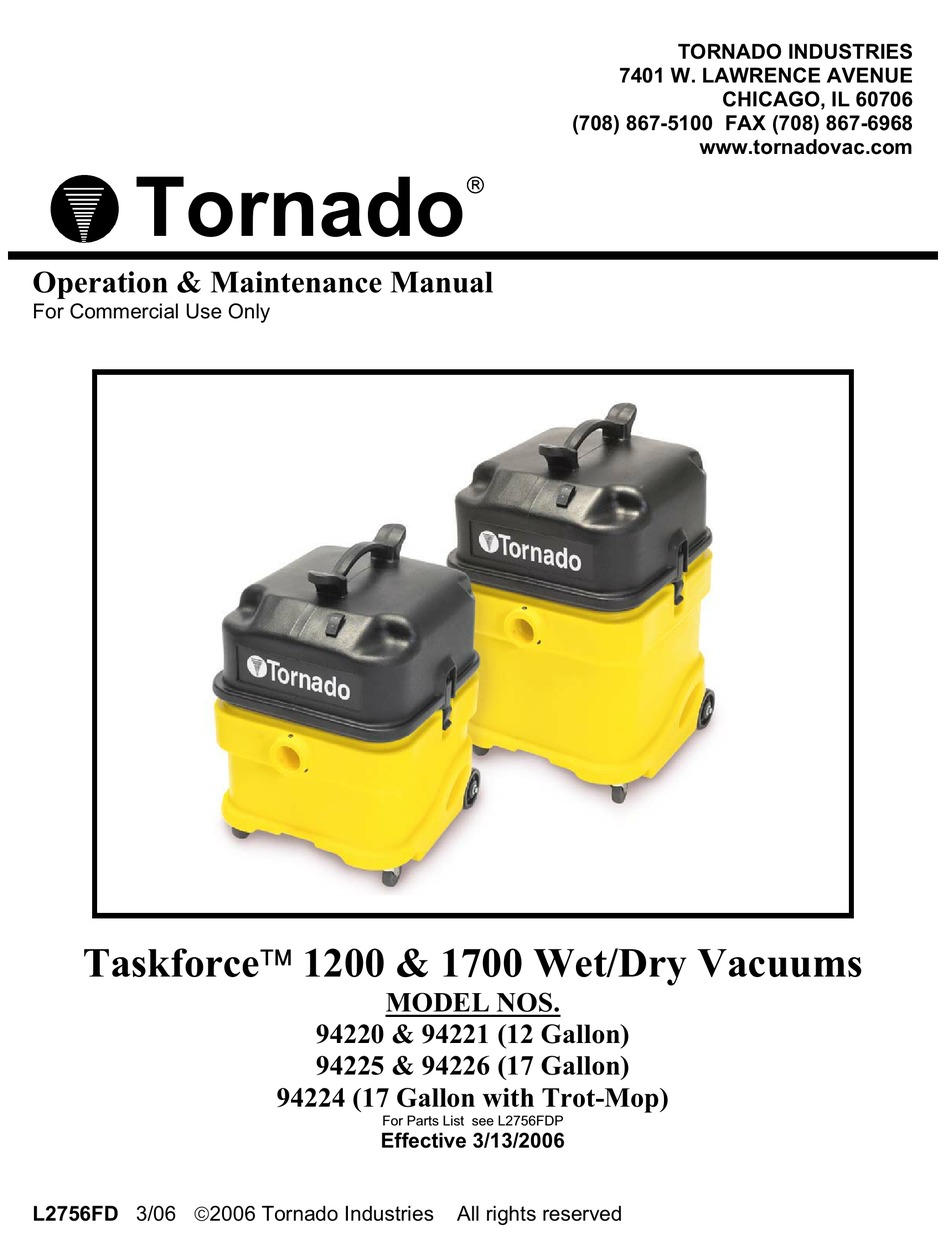

Tornado
Operation & Maintenance Manual
For Commercial Use Only
Taskforce¥ 1200 & 1700 Wet/Dry Vacuums
L2756FD 3/06 ¤2006 Tornado Industries
MODEL NOS.
94220 & 94221 (12 Gallon)
94225 & 94226 (17 Gallon)
94224 (17 Gallon with Trot-Mop)
For Parts List see L2756FDP
Effective 3/13/2006
7401 W. LAWRENCE AVENUE
(708) 867-5100 FAX (708) 867-6968
£
All rights reserved
TORNADO INDUSTRIES
CHICAGO, IL 60706
www.tornadovac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 94220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tornado 94220

  • Page 1 Tornado Operation & Maintenance Manual For Commercial Use Only Taskforce¥ 1200 & 1700 Wet/Dry Vacuums MODEL NOS. 94220 & 94221 (12 Gallon) 94225 & 94226 (17 Gallon) 94224 (17 Gallon with Trot-Mop) For Parts List see L2756FDP Effective 3/13/2006 L2756FD 3/06 ¤2006 Tornado Industries...
  • Page 2 NOTES...
  • Page 3 This instruction book covers: CATALOG NO. 94220 94224 94225 94221 94226 SERIES H.P./CFM 1.3 / 112 1.6 / 119 1.6 / 119 1.5 / 112 1.5 / 112 CAPACITY RECOVERY 13.8 13.8 13.8 WATERLIFT 93” 96” 96” 87” 87” MOTOR TYPE...
  • Page 4 4) All non-wear item parts purchased after warranty expiration are warranted for 90 days. 5) Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months after dealer purchased the unit from Tornado, whichever comes first.
  • Page 5: Features In Brief

    Optional throwaway paper bags for dry applications. Overall Design Features: The Tornado Taskforce 1200 (12 Gallon) & 1700 (17 Gallon) Wet/Dry Vacuums are industrial grade units designed for stack-ability, cord management, durability, maneuverability and ease of operation. They include molded recessed handles for ease of carrying and dumping.
  • Page 6: Safety Instructions

    Use only as described in this manual. Do not leave machine unattended when running. If machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, consult an authorized Tornado service center. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
  • Page 7: Before Operating Machine

    Keep this manual on file and handy. If additional information is needed, please contact your local distributor or contact us at: Tornado Industries, Inc. (708) 867-5100 7401 W. Lawrence Ave.
  • Page 8: Machine Components

    Machine Components ITEM # DESCRIPTION PART # VAC HEAD CANISTER 10' FLEXIBLE HOSE 30257 BARE FLOOR TOOL 90714 14" SQUEEGEE FLOOR TOOL 30486 UPHOLSTERY TOOL 90711 ROUND BRUSH TOOL 90712 2-PIECE EXTENSION WAND 30258 CLOTH BAG (Not supplied wImachine) 19816 PAPER BAG (Not supplied wImachine) 90701...
  • Page 9 Machine Setup and Operation Guidelines (Refer to Machine Components on previous page) NOTE: READ ALL SAFETY INSTRUCTIONS IN THIS MANUAL BEFORE OPERATING MACHINE SET UP 1. Remove the Vac-Head by releasing the side clamps. 2. Remove tools, parts and hose from inside unit.
  • Page 10: Operation

    7. Securely insert the larger end of the flexible hose sleeve into the suction Intake (refer to photo B). 8. Connect the extension wand onto the flexible hose. 9. Connect a floor tool onto the extension wand. 10. Check to make sure the On/Off switch is in the "OFF"...
  • Page 11: Machine Shutdown

    before resuming operation. The Wet/Dry Vac cannot operate properly with the Tank Drain Hose open. Unit Does Not Include Tank Drain Hose: Slowly Tilt the Wet/Dry Vac to empty the Canister. B. DRY PICKUP APPLICATIONS: If using a paper filter bag, install/replace with a new bag at the start of a new operation (refer to photo E).
  • Page 12 B. Rinse the Canister and allow to air dry. B. Turn the Vac-Head upside down and pull the Wet/Dry filter off of the Vac-head while taking caution not to damage filter (refer to photo F). a.) Wet Filter Cleaning: Rinse unit with warm water and shake clean.
