J3
J1
J2
J3
J1
J3
J2
D

VPSK01 SA

Power supply with plug for connection to the electrical mains and cable with connector for the video receiver connection.
4
6
5
4
3
2 1
CN2
CN1
4
3
2 1
J1
J3
J1
J2

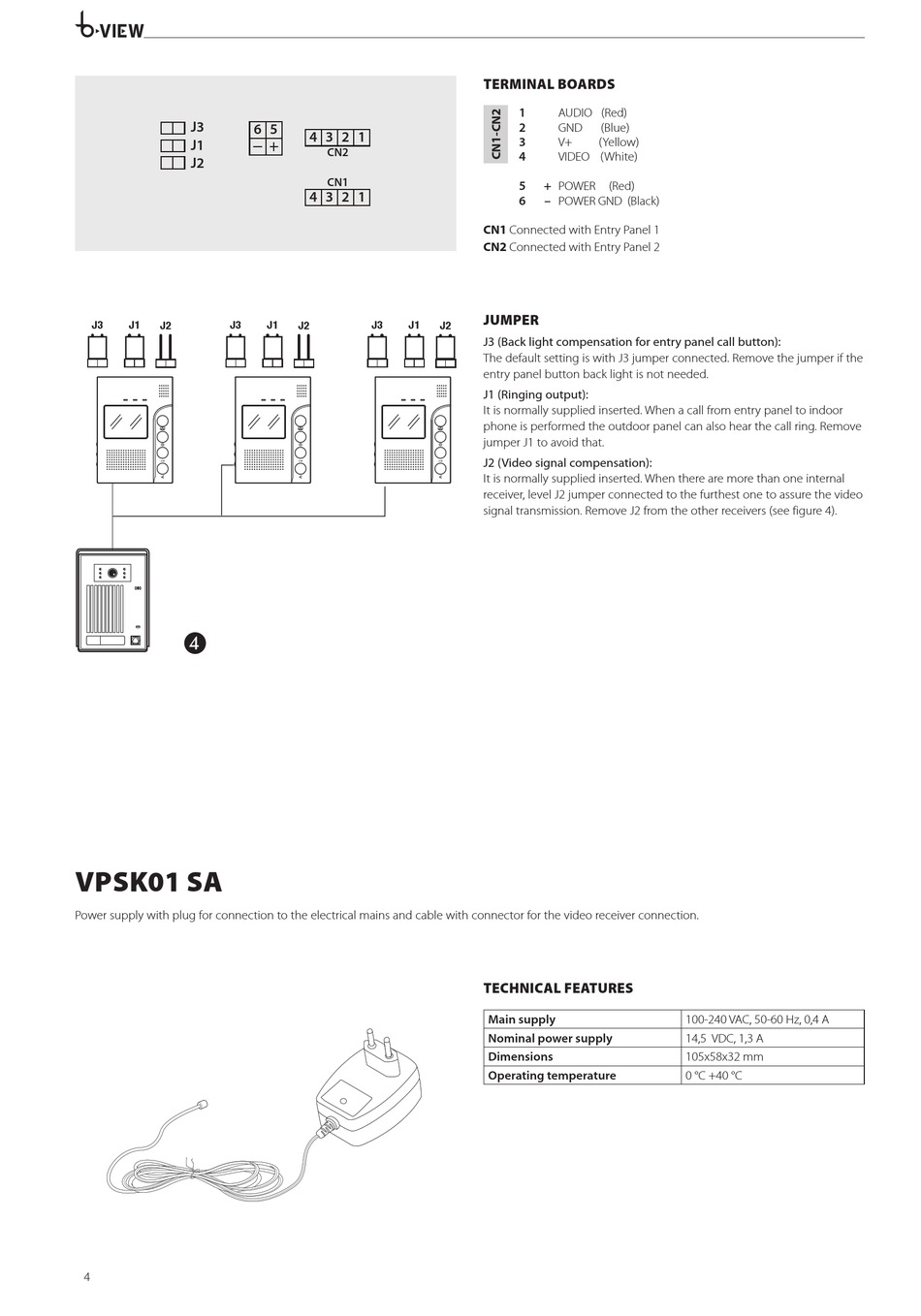

TERMINAL BOARDS

1
AUDIO (Red)
2
GND
(Blue)
V+
(Yellow)
3
VIDEO (White)
4
5
+ POWER (Red)
6
– POWER GND (Black)
CN1 Connected with Entry Panel 1
CN2 Connected with Entry Panel 2

JUMPER

J2
J3 (Back light compensation for entry panel call button):
The default setting is with J3 jumper connected. Remove the jumper if the
entry panel button back light is not needed.
J1 (Ringing output):
It is normally supplied inserted. When a call from entry panel to indoor
phone is performed the outdoor panel can also hear the call ring. Remove
jumper J1 to avoid that.
J2 (Video signal compensation):
It is normally supplied inserted. When there are more than one internal
receiver, level J2 jumper connected to the furthest one to assure the video
signal transmission. Remove J2 from the other receivers (see figure 4).
TECHNICAL FEATURES
Main supply
Nominal power supply
Dimensions
Operating temperature
100-240 VAC, 50-60 Hz, 0,4 A
14,5 VDC, 1,3 A
105x58x32 mm
0 °C +40 °C
