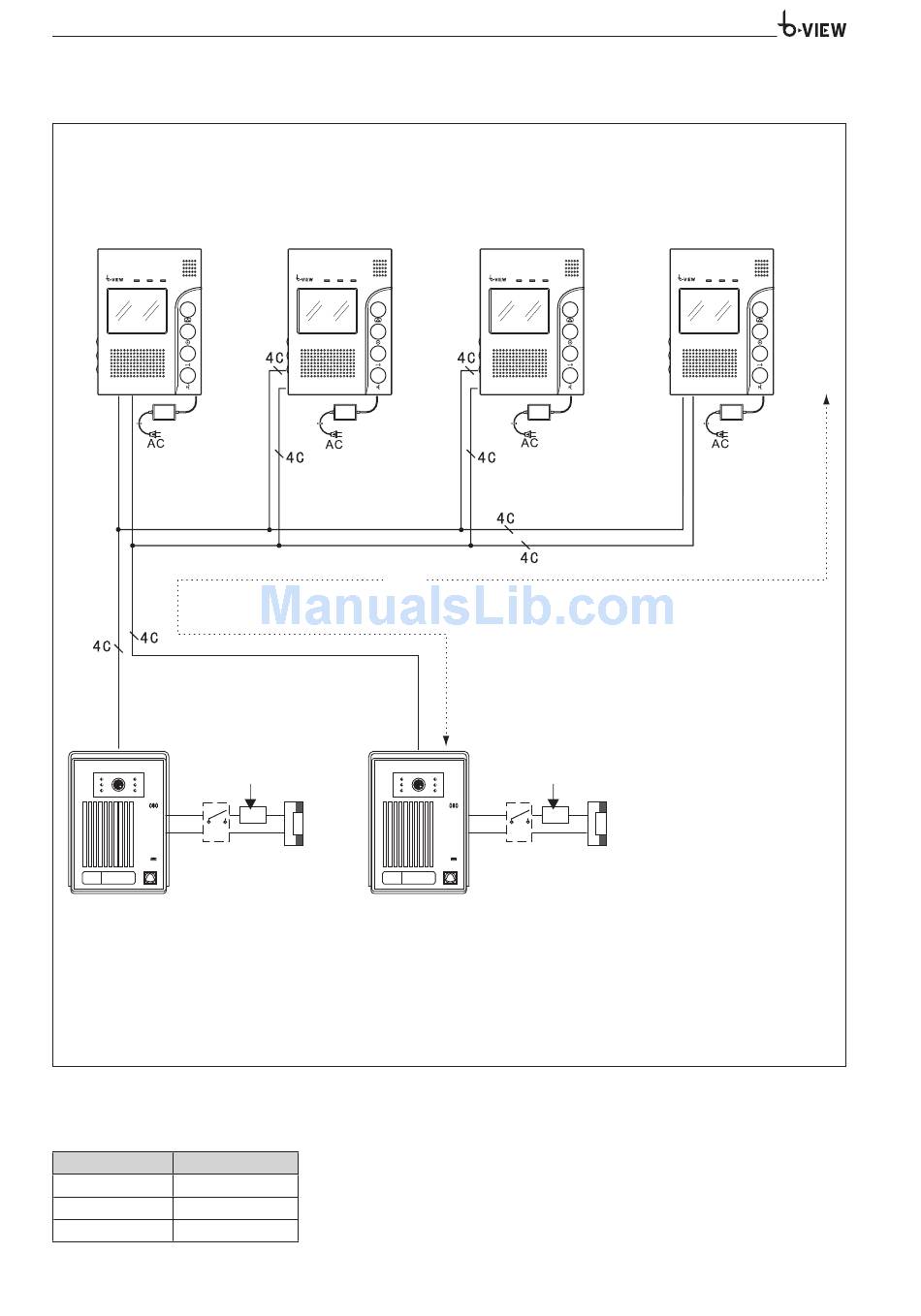

CONNECTION EXAMPLES

Maximum extension system
Power supply adaptor
AC/DC (included)
Power Supply
for lock
Entry Panel 1

DISTANCES

Both twisted or untwisted cables are allowed
Distance Wire
La≤ 28 m ≥ 0.2 mm
La≤ 50 m ≥ 0.3 mm
La≤ 70 m ≥ 0.5 mm
Power supply adaptor
AC/DC (included)
La
Door Lock
Entry Panel 2
2
2
2
Power supply adaptor
AC/DC (included)
Power Supply
for lock
Door Lock
Power supply adaptor
AC/DC (included)
