- Page 1 Installation Manual VRS01 SA 16-07-2012...
- Page 2 • In the case of device failure or malfunction, disconnect it from the power supply and do not tamper with it; • Should the unit be in need of repair, contact only a technical support centre authorised by the manufacturer and always use spare parts provided by Bpt s.p.a.;...

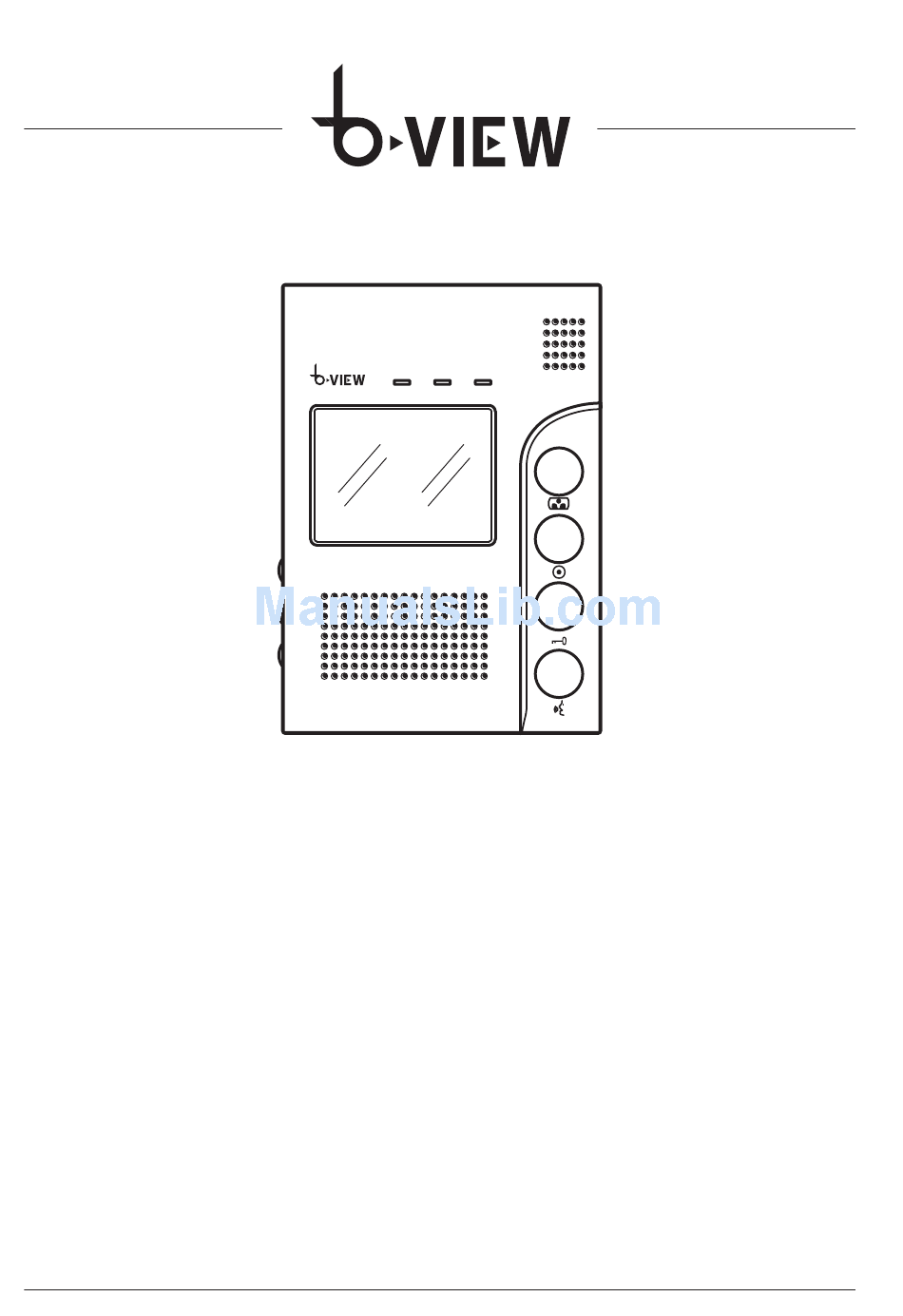

- Page 3 VRK01 SA The video receiver is composed of a wall-mounted hands-free unit equipped with a 3,5’’ TFT colour monitor. The video receiver is composed by: - push buttons to activate the communication, door lock release, camera preview, intercom call; - three potentiometers for the communication volume, brightness and chroma adjustments. INSTALLATION Consider the unit must be fitted at a suitable height in relation to the user.
- Page 4 TERMINAL BOARDS AUDIO (Red) (Blue) (Yellow) VIDEO (White) + POWER (Red) – POWER GND (Black) CN1 Connected with Entry Panel 1 CN2 Connected with Entry Panel 2 JUMPER J3 (Back light compensation for entry panel call button): The default setting is with J3 jumper connected. Remove the jumper if the entry panel button back light is not needed.
- Page 5 CONNECTION EXAMPLES Maximum extension system Power supply adaptor Power supply adaptor Power supply adaptor Power supply adaptor AC/DC (included) AC/DC (included) AC/DC (included) AC/DC (included) Power Supply Power Supply for lock for lock Door Lock Door Lock Entry Panel 1 Entry Panel 2 DISTANCES Both twisted or untwisted cables are allowed...
-
Page 6: Wiring Diagram
WIRING DIAGRAM VRK01 SA 220 V 50Hz VRK01 SA 220 V 50Hz VRK01 SA 220 V 50Hz VRK01 SA 220 V 50Hz VEPK01 SA 1 AUDIO 2 GND 3 V+ 4 VIDEO Power Supply for Lock VEPK01 SA 1 AUDIO 2 GND 3 V+ 4 VIDEO... - Page 8 The equipment must be disposed of in compliance with the regulations in force, recycling its component parts wherever possible. Components that qualify as recyclable waste feature the relevant symbol and the material’s abbreviation. Imported by TRI-BPT Automation (Pty) Ltd. http: www.bpt-sa.co.za. – e-mail: info@bpt-sa.co.za...
