Only encoders with lines per revolution that are a power of 2 can be used with the SM-
NOTE
Encoder Plus, e.g. 256, 512, 1024 etc.
The marker pulse duration must be between 45° to 360° electrical (encoder).
SM-Encoder Plus User Guide
Issue Number: 3

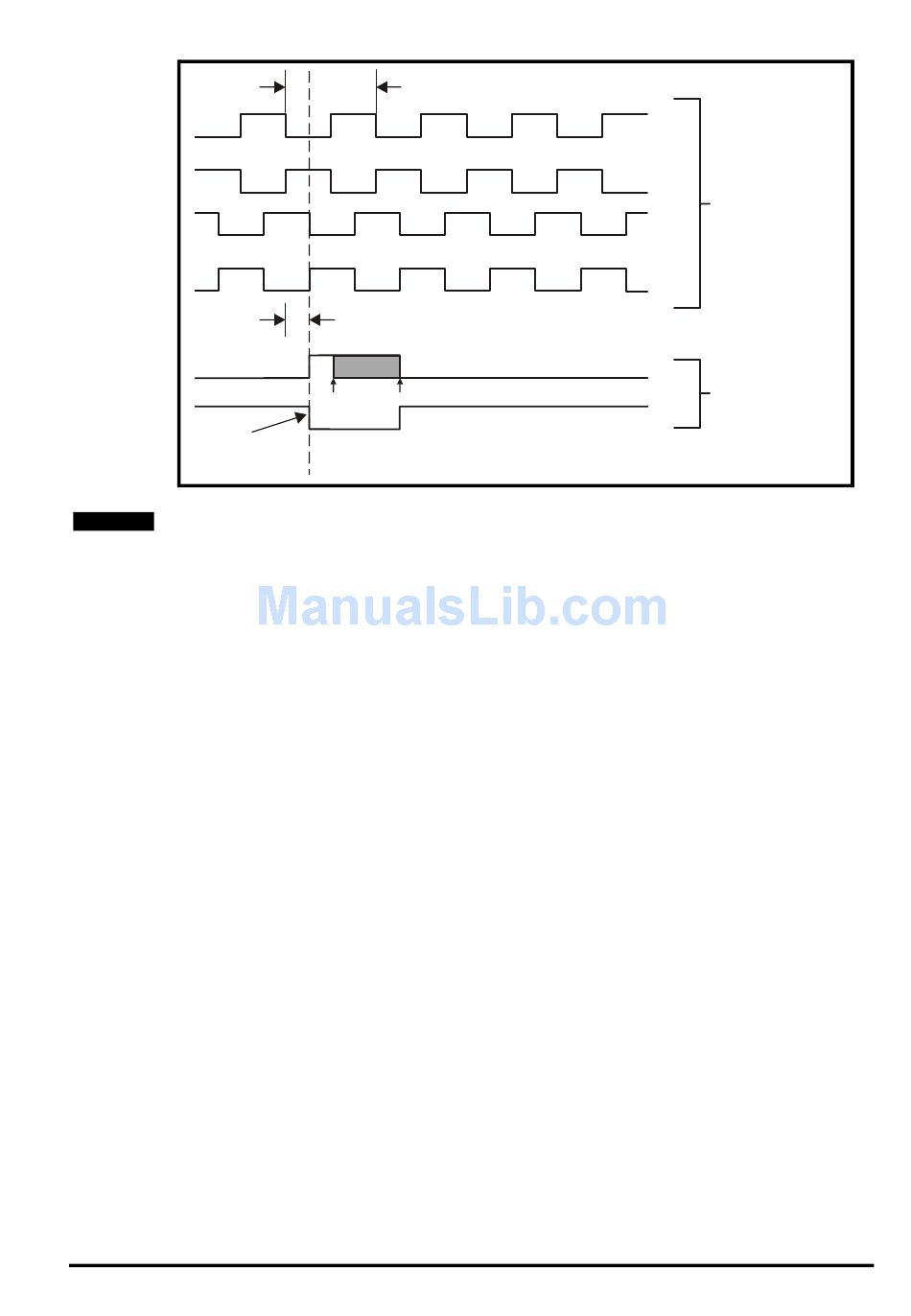

Figure 3-3 Encoder feedback signals
°
360 electrical (encoder)
°
90 separation of A and B
min max
www.controltechniques.com
A
/A Incremental
signals
B
/B
Z
Marker
signals
/Z
