Installation

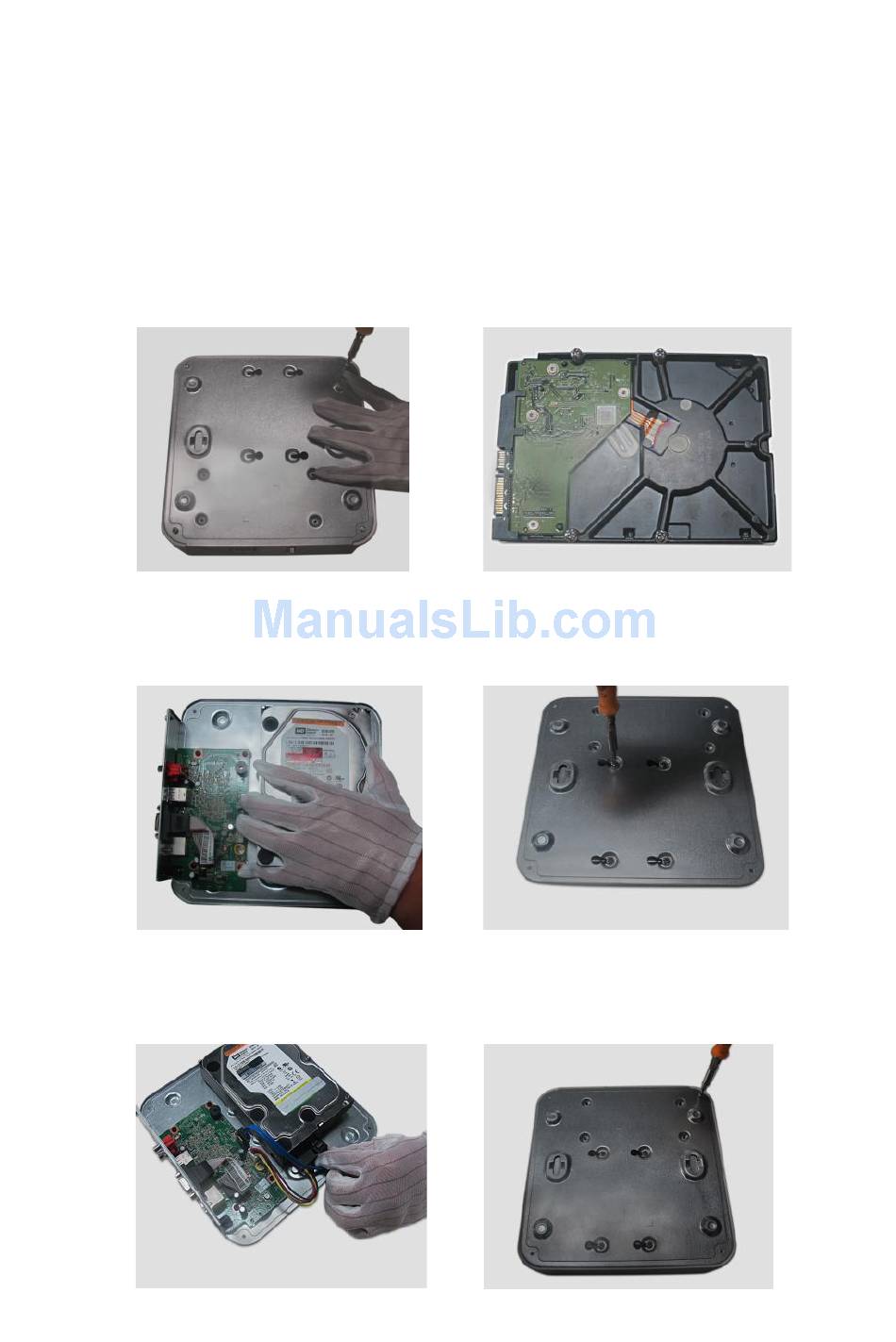

This NVR series has only one hard disk. Please follow the steps to install
the disk. A screwdriver is needed. The following figures are only for
illustration purpose.
1. Loosen the screws on the
bottom cover.
3. Align holes on the disk with
holes on the bottom cover.
5. Connect the data and power
cables.
2. Fix the four screws on the
disk without fully tightening them.
4. Secure the disk to the bottom
cover using four screws.
6. Place the cover in position and
then fix the four screws.
2
