Instant Electric Water Heater
Instruction Manual
For Model:
FWH SPLASH 301CH(WITH PUMP)
FWH SPLASH 302CH(WITH PUMP)
FWH SPLASH 303RS(WITH PUMP)
FWH OTTIMO 501CH(WITHOUT PUMP)
FWH OTTIMO 502PL(WITHOUT PUMP)

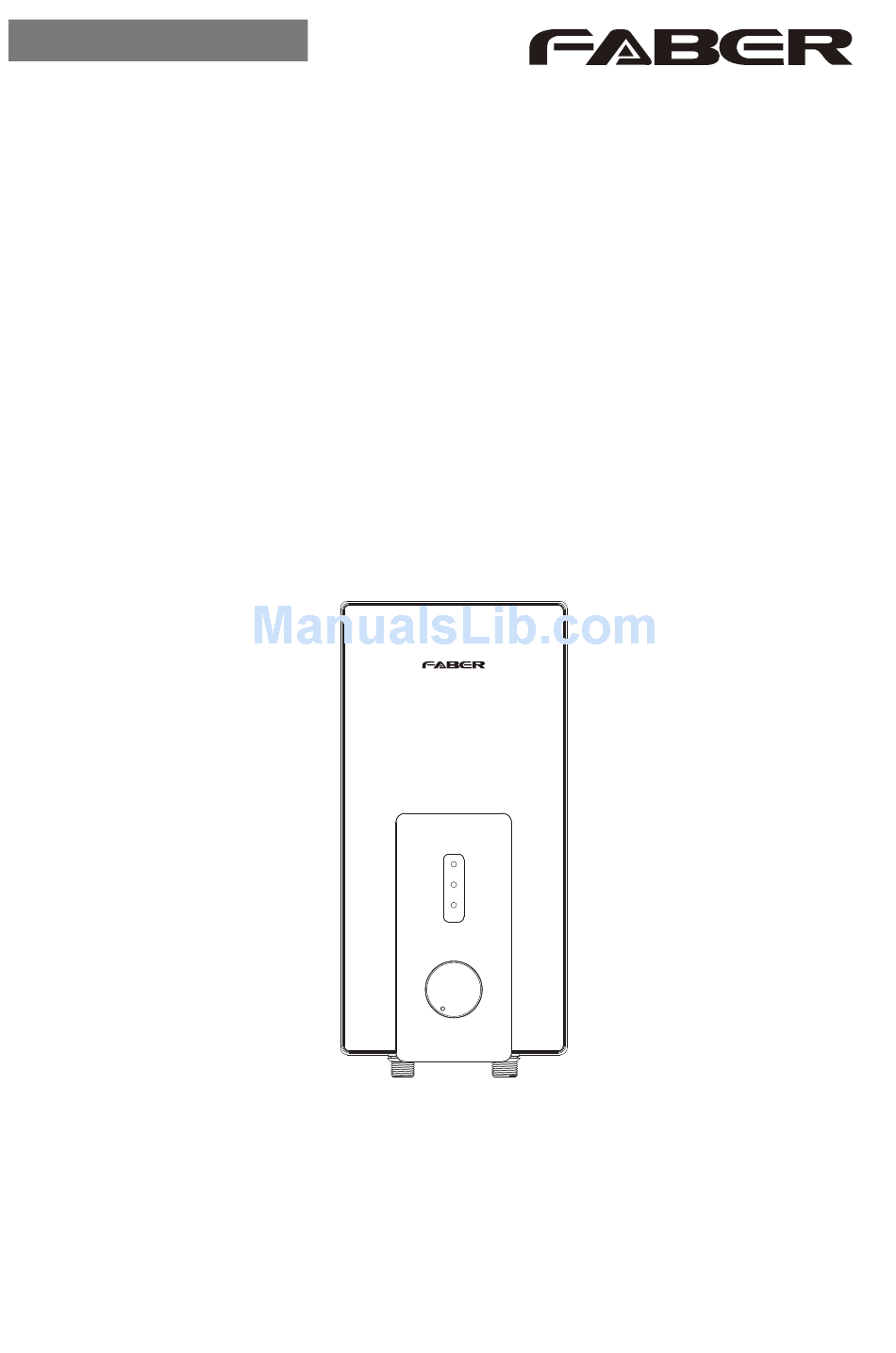

The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Thank you very much for purchasing our water heater.
Before installing and operating your water heater, please
read this manual carefully and keep it for future reference.
Advertisement
Table of Contents
Related Manuals for Faber FWH SPLASH 301CH
Summary of Contents for Faber FWH SPLASH 301CH
-
Page 1: Instruction Manual
Instant Electric Water Heater Instruction Manual For Model: FWH SPLASH 301CH(WITH PUMP) FWH SPLASH 302CH(WITH PUMP) FWH SPLASH 303RS(WITH PUMP) FWH OTTIMO 501CH(WITHOUT PUMP) FWH OTTIMO 502PL(WITHOUT PUMP) The diagram above is just for reference. Please take the appearance of the actual product as the standard. -
Page 2: Table Of Contents
Sincerely thank you for selecting our electric water heater. Please read this manual carefully before use; correctly grasp the methods for installation and use of this electrical water heater, to make full use of its excellent performances. Please do preserve the instruction manual for future reference. -
Page 3: Cautions
1. CAUTIONS To prevent personal injury, injury to others and property damage, the instructions below must be followed. Incorrect operation due to failure to follow instructions will cause harm or damage. Special Cautions ● This water heater is for household, and it can be installed wherever place that need hot water. ●... -
Page 4: Product Introduction
WARNING The water heater should be earthed before use. Please ensure that the resistance of household earth wire is <4Ω. Using water heater without earthed is highly prohibited. 2. PRODUCT INTRODUCTION NOTE This manual is applicable to the instant electric water heaters manufactured by this company. -
Page 5: Parts Identification
2.2 Parts Identification Terminal block Main control board Thermal Wire pressing board cut out Indicator light board DC pump Stainless steel circlip Silicon control Temperature sensor Flow sensor Marker for Marker for wateroutlet water inlet Blue Water inlet Water outlet PRODUCT STRUCTURE FOR SPLASH SERIES Terminal block Main control board... - Page 6 2.4 Internal Wire Diagram ①： Key Board ②： Terminal Block ③： Main Control Board ④： Indicator Light Board ⑤： Thermal Cut Out ⑥： Heating Elements ⑦： Temperature Sensor （Water Outlet） ⑧： DC Pump ⑨： Flow Sensor ⑩： Silicon Control WIRING DIAGRAM FOR SPLASH SERIES ①：...
-
Page 7: Unit Installation
3. UNIT INSTALLATION 3.1 Installation Instruction ① Check the capacity of power circuit; ④ Plumbing connection; ② Power cord installation; ⑤ Power supply connection; ③ Water heater installation; ⑥ Water Supply. WARNING Minimum conductor sizes Live: 4mm² Neutral: 4mm² PE: 4mm² 3.2 Power Cord Installation Step 1 Step 2... -
Page 8: Water Heater Installation
NOTE The installation position of neutral line (blue), live line (brown/red) and earth line (green/yellow) should be corresponding to the other end on wiring terminals. 3.3 Water Heater Installation Determine installation position of the unit according to length of power cord / position ①... - Page 9 Water flow adjusting valve with filter (Fig.2) Cold water inlet NOTE Water flow adjusting valve with filter must be used when install the unit. Blue marker stands for water inlet, red marker stands for water outlet. Do not overexert to avoid damaging the water heater.
-
Page 10: Methods Of Using
4. METHODS OF USING 4.1 Operating Of The Unit Switch on the power supply, the unit will take self-inspection for 2s, “ELCB”; Bottom Left "EARTH" blue indicator light will be on (well connected to the Ground). Green With Without indicator light will be on (under the condition of no electricity leakage). When Pump Pump the water flow exceeds 1.2L/min, rotate the knob clockwise to switch on heating... -
Page 11: Maintenance
5. MAINTENANCE ● This electric water heater should be installed at the place without sunshine or rain spray. Please cut off power supply if not use for long time. ● Please blow down the water for about 10 seconds to drain away the impurities in the pipe before connecting the water source to the electric water heater to avoid blockage of water heater.
