FUNCTIONAL SPECIFICATION
PowerON/OFF
Use a DC12V Power Adapter and connect it to the DC Jack. Turn the
Rapport III ON/OFF by using the slider switch located on the side of
the product. After switching the power switch to the ON position, press
the OSD button and the Rapport III will boot up. To turn the Rapport III
OFF, keep the OSD button depressed for at least 2 seconds and wait
until a POWER OFF message is displayed on the Main Screen.
Release the OSD button and turn off the ON/OFF slider switch; power
is now turned off.
■
When charging the battery, keep it on charge for more than 6 hours
or until the unit is fully charged. On full charge the operational time
is approximately 6 hours. (Max.8hrs)
■
If the battery indication shows less than
the battery. (Full recharge state:

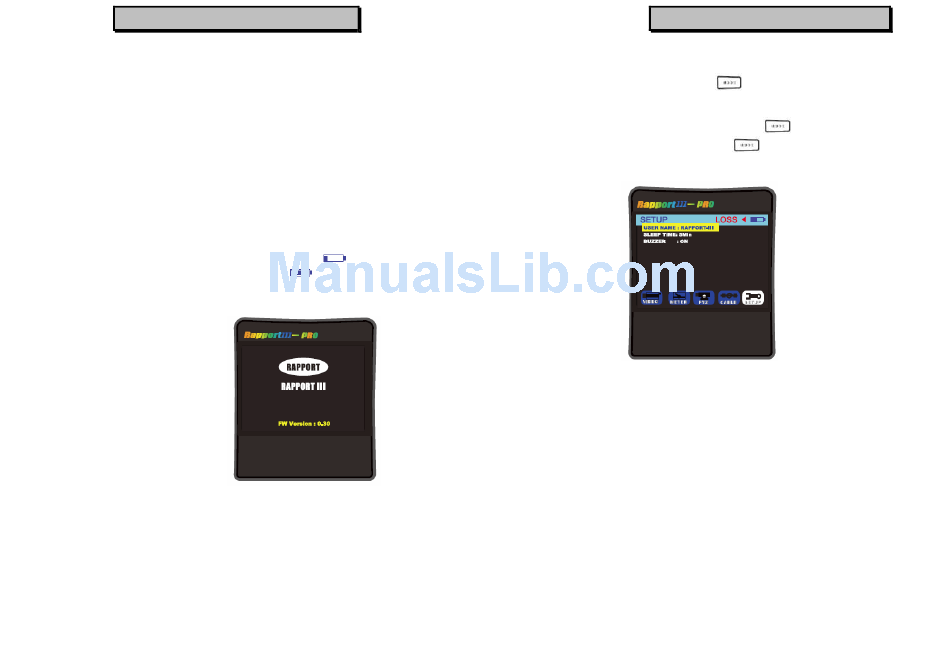

Initial Screen Display at Power On
■
After the power is applied the above on-screen message is
displayed. Approximately 2 seconds later the screen switches to
the last OSD before power was turned off. The Rapport III stores
the last accessed OSD. The initial OSD message displays the
Rapport's firmware level. Versions of the product change whenever
new firmware is uploaded.
you need to recharge
)
20
FUNCTIONAL SPECIFICATION
Mode setup
■
The OSD menu changes whenever the
sequences through in the following order: VIDEO - METER - PTZ - CABLE -
SETUP
■
The MODE SELECT menu is displayed when the
and moves to the next menu whenever the
Video Tester Mode:
This function displays the image of an externally input video signal, or is used to
output internally generated signals when in PATTERN GENERATOR mode.
DVR MODE (Rapport lll-PRO only):
Used to record (onto SD Card) and playback input video images.
Digital Multimeter mode:
Tests voltage, resistance, & continuity.
PTZ Controller mode:
This function allows up, down, right and left movements of a PTZ camera to be
made. Also, zoom & manual focus can be adjusted.
UTP Cable Tester mode:
Tests UTP cable connectivity - tests for straight & crossed cables, for breaks
and short circuits.
Main Setup mode:
This function allows changes to be made to the basic setup of the Rapport III
(user name, auto power off time, beeper etc).
key is pressed, and
key is depressed
key is pressed
