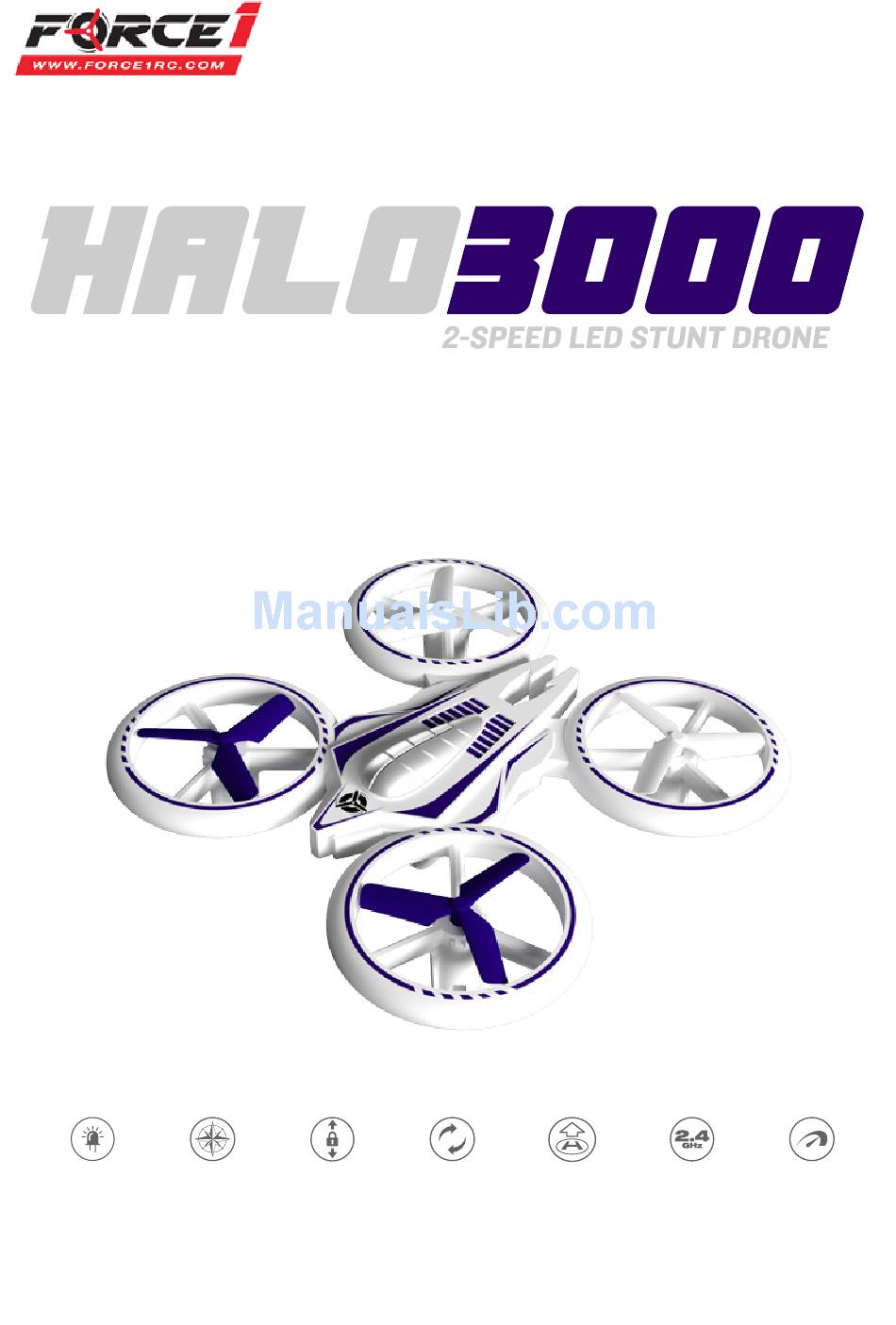

- Page 1 USER MANUAL ° 360° 1-Key 2.4Ghz 2 Speed LED Lights Headless Altitude Flips Lift/Land Transmitter Mode Hold FOR MORE INFORMATION Visit us online at force1rc.com for product information, replacement parts and flight tutorials.
- Page 3 ATTENTION: PLEASE WATCH THIS FLIGHT INSTRUCTION VIDEO BEFORE FLYING YOUR DRONE. https://youtu.be/tk3qzsUwoWs...
-
Page 4: Table Of Contents
FORCE1 CONTENTS Welcome & General Safety Precautions ······················· 3 LI-PO Battery Care ······················································· 4 Drone Battery Charging ··············································· 5 Contents & Drone Overview ········································ 6 Transmitter Overview ···················································· 7 Drone Assembly ··························································· 8 Preflight Operation ····················································· 10 Flight Controls ···························································· 11 Trim Adjustments ························································... -
Page 5: Welcome & General Safety Precautions
HALO3000 User Manual WELCOME! Welcome to the Force1 Team, and thank you for your Force1 drone purchase. Please read this manual carefully before drone operation. (1) This drone is not a toy! It’s a pro-level drone suitable for experienced RC drone users aged 14 years and older. -
Page 6: Li-Po Battery Care
FORCE1 LI-PO BATTERY CARE Avoid Overheating Your batteries will sometimes be warm/hot to the touch after use. This is normal, but beware that battery components will fail if not allowed to cool down between uses. Also, do not leave batteries exposed to direct sunlight. -
Page 7: Drone Battery Charging
HALO3000 User Manual DRONE BATTERY CHARGING 1. First, attach your USB cable to the drone battery, then connect it to your preferred charging source. 2. When the battery is charging, the USB indicator light will be off. When the battery is fully charged, the USB indicator light will appear. -
Page 8: Contents & Drone Overview
FORCE1 BOX CONTENTS DRONE TRANSMITTER 3.7v LITHIUM PROPELLERS (4) USB CHARGER BATTERY (2) DRONE OVERVIEW FRONT PROPELLER A PROPELLER B CLOCKWISE COUNTERCLOCKWISE MOTOR (FORWARD) MOTOR (REVERSE) MOTOR (REVERSE) MOTOR (FORWARD) PROPELLER B PROPELLER A COUNTERCLOCKWISE CLOCKWISE REAR... -
Page 9: Transmitter Overview
HALO3000 User Manual TRANSMITTER OVERVIEW ROLL/FLIP BUTTON SPEED BUTTON FORWARD/BACKWARD THROTTLE LEFTWARD/ ROTATE RIGHTWARD LEFT/RIGHT DIRECTIONAL ROTATIONAL TRIM TRIM HEADLESS MODE FORWARD/ BACKWARD TRIM 1-KEY START/LAND POWER BUTTON TRANSMITTER BATTERY INSTALLATION Open the battery cover and insert 4 AAA batteries as shown below (not included). -
Page 10: Drone Assembly
FORCE1 DRONE ASSEMBLY BATTERY INSTALLATION 1. Open the battery cover by sliding the cover over and lifting up (Fig. 1). 2. Connect the wire of the 3.7v lithium battery to the receiver wire in the power port (Fig. 2). 3. Replace the battery cover, and move the power switch to the “ON” position. - Page 11 HALO3000 User Manual DRONE ASSEMBLY • To remove propeller, lift upwards on propeller until in snaps off (Fig. 3) • The replacement propeller should have the same rotational direction; place on the correct motor pin, and apply pressure until it snaps into place (Fig. 4)
-
Page 12: Preflight Operation
FORCE1 PREFLIGHT OPERATION PAIRING WITH DRONE 1. Insert the drone battery. 2. Turn on the drone and place it on a flat surface; drone lights will flash quickly. 3. Make sure the left stick is in the center position. 4. Turn on the transmitter; it will beep twice (Fig. 6). -
Page 13: Flight Controls
HALO3000 User Manual FLIGHT CONTROLS HOVER UP AND DOWN Push the THROTTLE/RUDDER STICK up to fly the drone up, and pull the THROTTLE/RUDDER STICK down to fly the drone down. FLY FORWARD OR BACKWARD DIRECTION CONTROL Push STICK up to fly the drone forward, and pull the DIRECTION CONTROL STICK down to fly the drone backward. -
Page 14: Trim Adjustments
FORCE1 TRIM ADJUSTMENTS If your drone drifts in an unwanted direction, try adjusting the trim as shown below. FORWARD/BACKWARD TRIM FORWARD/BACKWARD Adjust TRIMMER backwards if the drone drifts forward when taking off, and adjust the FORWARD/BACKWARD TRIMMER forwards if drone drifts backwards. In Mode 1, the FORWARD/BACKWARD TRIMMER is on the left side. -
Page 15: Functions
HALO3000 User Manual FUNCTIONS 360° FLIP/ROLL CAUTION: Only execute rolls when you have plenty of airspace. The drone can only perform flips when it is at least 7 feet in the air. Front/Back Flip Press the Flip/Roll button to flip the drone. The transmitter will beep, indicating the drone is in Flip/Roll Mode. - Page 16 FORCE1 FUNCTIONS 1-KEY START Place the drone on a flat surface. Press the 1-Key Start/Land Button (Fig. 10) – the drone propellers will start spinning, and it is ready to fly. Push the left stick up to fly the drone upwards.
- Page 17 When this happens, correct the drone’s elevation using the throttle stick. SPEED MODES The HALO3000 has two speed modes: Low and High. To switch speed modes, press the Speed Mode button (Fig. 14). The transmitter will beep twice to indicate that it is in High Speed Mode, or once for Low Speed Mode.
-
Page 18: Troubleshooting
FORCE1 TROUBLESHOOTING GUIDE Problem Cause Solution The LED indicator The transmitter and drone are not paired. Refer to pg. 10 to pair again. on the drone flashes continuously after connecting the battery; there is no response from the transmitter. The drone is not 1. -
Page 19: Spare Parts
HALO3000 User Manual SPARE PARTS Upper Cover Lower Cover Propellers (A/B) Battery Cover Lithium Battery Circuit Board Reverse Motor Forward Motor Blue LED Green LED USB Charger... - Page 20 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
