- Page 1 USER MANUAL 0.6 Miles FOR MORE INFORMATION Visit us online at force1rc.com for product information, replacement parts, and flight tutorials.
- Page 2 ATTENTION: PLEASE WATCH THIS FLIGHT INSTRUCTION VIDEO BEFORE FLYING YOUR DRONE. https://youtu.be/tk3qzsUwoWs...
-
Page 3: Table Of Contents
Throttle Mode Selection ············································· 10 Drone Assembly ························································· 11 Calibration ·································································· 13 Preflight Checklist ······················································· 14 Basic Flight Controls ··················································· 15 Functions ···································································· 16 Force1-F200W App Overview ··································· 19 Indicator Lights Overview ·········································· 21 Spare Parts ································································· 23 Troubleshooting ························································ 24... -
Page 4: Welcome & General Safety Precautions
F200W Shadow User Manual WELCOME! Welcome to the Force 1 RC Team, and thank you for your Force1 drone purchase. Please read this manual carefully before drone operation. (1) This drone is not a toy! It’s a pro-level drone suitable for experienced RC drone users aged 14 years and older. -
Page 5: Li-Po Battery Care
FORCE1 RC LI-PO BATTERY CARE Avoid Overheating Your batteries will sometimes be warm/hot to the touch after use. This is normal, but beware that battery components will fail if not allowed to cool down between uses. Also, do not leave batteries exposed to direct sunlight. -
Page 6: Drone Battery Charging
F200W Shadow User Manual DRONE BATTERY CHARGING LI-PO BATTERY DISPOSAL & RECYCLING Do not put lithium-polymer batteries in household trash. Please contact your local waste management agency or LI-PO battery recycling center for more info. -
Page 7: Contents & Drone Overview

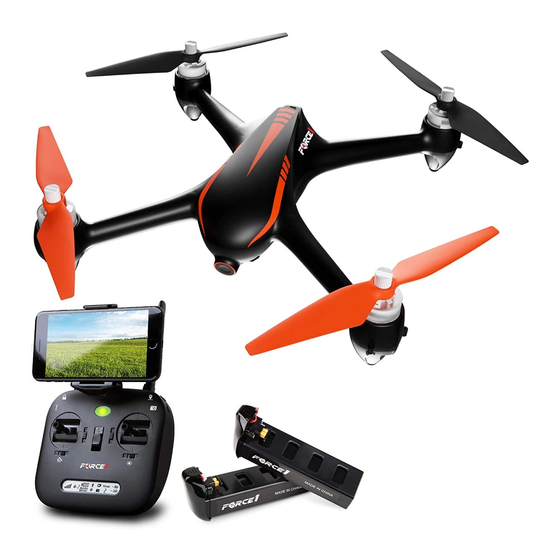

FORCE1 RC BOX CONTENTS DRONE WITH CAMERA TRANSMITTER 7.4V 1800MAH LIPO BATTERY (2) PHONE CLIP DRONE TOOLS BALANCE CHARGER PROPELLERS (4) DRONE OVERVIEW FRONT A PROPELLER B PROPELLER CLOCKWISE COUNTERCLOCKWISE LEFT RIGHT B PROPELLER A PROPELLER COUNTERCLOCKWISE CLOCKWISE REAR... -
Page 8: Transmitter Overview
F200W Shadow User Manual TRANSMITTER OVERVIEW UNLOCK (SHORT-PRESS) LOCK (LONG-PRESS) ENTER/EXIT RETURN TO HOME ONE-KEY TAKE OFF/ ONE-KEY LANDING PHOTO (SHORT-PRESS)/ VIDEO (LONG-PRESS)* POWER SWITCH POWER INDICATOR THROTTLE/RUDDER STICK (DEFAULT) DIRECTION CONTROL STICK (DEFAULT) GESTURE/GPS MODE SWITCH HEADLESS MODE SWITCH *APPLICABLE WHEN A MEMORY CARD IS INSERTED. -
Page 9: Transmitter Battery Installation
FORCE1 RC TRANSMITTER BATTERY INSTALLATION Open the battery cover and insert 4 AA batteries as shown below. CAUTION: • The transmitter needs 4 AA batteries to work • Insert batteries in correct polarity (+) and (-) • Don’t mix old and new batteries •... -
Page 10: Channel Selection & Signal Connection
F200W Shadow User Manual TRANSMITTER CHANNEL SELECTION Your transmitter (remote controller) uses 5G Wi-Fi and works on channels 36 (5180 MHz) and 149 (5745 MHz), both of which are available in the United States. The factory default setting is channel 36. -
Page 11: Throttle Mode Selection
FORCE1 RC THROTTLE MODE SELECTION Your transmitter allows for left or right-hand throttle in a total of 4 different modes, depending on your preference. To change the throttle mode press and hold the top-right button for 3 seconds (Fig. 3). The mode number is shown on the LCD screen (Fig. 4). -
Page 12: Drone Assembly
F200W Shadow User Manual DRONE ASSEMBLY BATTERY INSTALLATION Insert the battery into the battery compartment until you hear a click. Turn the lock button on the bottom 90° to the “lock position.” SLIDE BATTERY IN COMPARTMENT LOCK COMPARTMENT CAUTION: Install the battery firmly; failure to do so may affect flight safety. - Page 13 FORCE1 RC DRONE ASSEMBLY PROPELLER INSTALLATION/REMOVAL PROPELLER A INSTALLATION Place propeller A on the corresponding motor shaft (Fig. 5). The side marked A should be facing upwards. Fix the rotor propellers by rotating them as per the “lock direction shown on the propellers.”...
-
Page 14: Calibration
F200W Shadow User Manual CALIBRATION TRANSMITTER CALIBRATION 1. Turn on the transmitter. 2. Push the Calibration button and hold for 3 seconds (Fig. 6). 3. Transmitter will beep 3 times, and the indicator light will start flashing slowely. 4. Rotate control sticks in any direction for 2 full rotations (Fig. 7). -
Page 15: Preflight Checklist
FORCE1 RC DRONE COMPASS CALIBRATION Drone compass calibration should be done before every flight, after every battery change and after every successful initialization detection. HORIZONTAL CALIBRATION When the drone’s front and rear lights flash light green, hold the drone upright and rotate it 360° 3 times along the central axis (Fig. -
Page 16: Basic Flight Controls
F200W Shadow User Manual BASIC FLIGHT CONTROLS HOVER UP AND DOWN Push the THROTTLE/RUDDER STICK up to fly the drone up, and pull the THROTTLE/RUDDER STICK down to fly the drone down. FLY FORWARD OR BACKWARD Push the DIRECTION CONTROL STICK up to... -
Page 17: Functions
FORCE1 RC FUNCTIONS ONE-KEY TAKEOFF / LANDING • After the drone is unlocked, press the one-key button (Fig. 12). The drone will automatically take off and hover at an altitude of around 5 feet • When the drone is flying, press the one-key button; drone... - Page 18 F200W Shadow User Manual FUNCTIONS RETURN TO HOME (RTH) GPS SIGNAL STRENGTH The Return-to-Home function brings your drone back to the last recorded home point. A GPS signal of 7+ must be available for the drone to record its home point (Fig. 16).
- Page 19 FORCE1 RC FUNCTIONS PHOTO / VIDEO • Press the photo/video button on the top right of the transmitter to take a photo (Fig. 18). The camera icon on the LCD screen will flash once indicating that a photo has been taken •...
-
Page 20: Force1-F200W App Overview
The Force1-F200W app is what you will use to enjoy first-person view (FPV) control and photo/video capture via your mobile device while flying your F200W Shadow drone. The app is compatible with iOS and Android phones. To download the app from the App Store or Google Play: 1. - Page 21 Videos and photos will save to the app if there is no memory card in the camera, and you may download them from there. TIP: Make sure your mobile device supports 5G Wi-Fi before linking the Force1-F200W app to the drone camera.
-
Page 22: Indicator Lights Overview
F200W Shadow User Manual DRONE INDICATOR LIGHT STATUS DESCRIPTION The front and rear lights of the The transmitter is not linked to the aircraft, and it drone flash light green rapidly. requires completing the signal connection steps. Front and rear lights flash green The drone is in gyroscope calibration mode. - Page 23 FORCE1 RC TRANSMITTER INDICATOR LIGHT POWER INDICATOR LIGHT TRANSMITTER STATUS OPERATION Indicator lights flash rapidly. The transmitter is under signal connection status. Indicator lights flash slowly with a steady The transmitter has low voltage. beep and the battery icon on display is flashing.
-
Page 24: Spare Parts
F200W Shadow User Manual SPARE PARTS Upper Cover Lower Cover Propellers (A/B) Front/Rear Light Covers Camera PCB GPS Module Front/Rear LED Indicator Screws A/B Interleaving Paper Compass Receiver PCB B2C009 Clockwise Motor Screws Pack Counterclockwise Motor Battery Transmitter Propeller Changing Tool... -
Page 25: Troubleshooting
FORCE1 RC TROUBLESHOOTING PROBLEM SOLUTION The front and rear lights of the drone flash The transmitter is not linked to the aircraft, and it requires completing green rapidly. the signal connection steps. The front and rear lights of the drone flash 1) Check to see if the drone is in the stationary state. - Page 27 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio communications.
