Summary of Contents for VIETA La-115S plus A

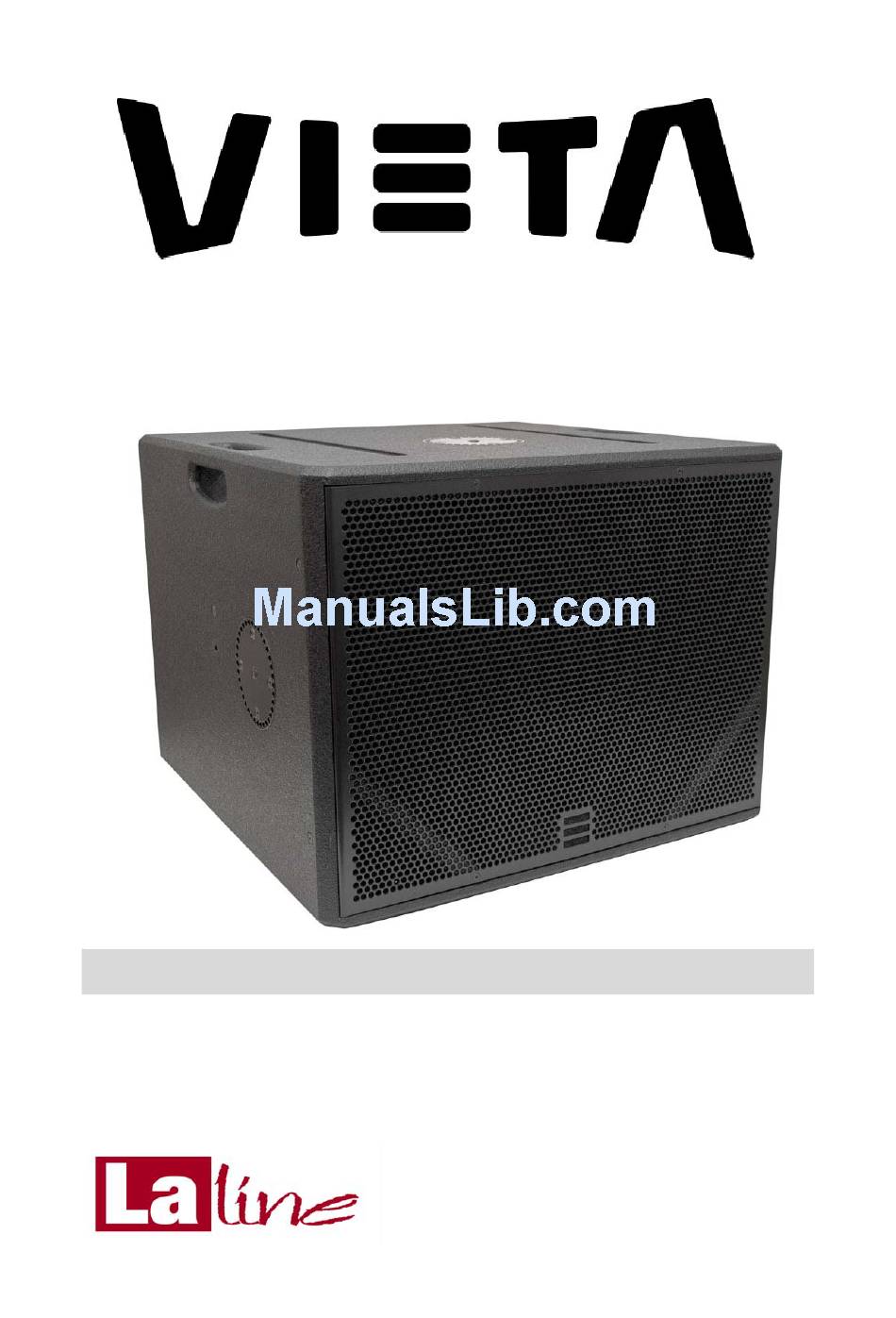

- Page 1 La-115 plus A...
-
Page 2: Table Of Contents
INDEX SAFETY PRECAUTIONS WARRANTY DECLARATION OF CONFORMITY 4,5,6 DESCRIPTION La-plus series La-115S plus A y La-115S plus P Description Amplifier description La-115S plus A Presets Technical Specifications 11,12 DIMENSIONS La-115S plus A y La-115S plus P... -
Page 3: Safety Precautions
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. • Vieta accepts no responsibility for accidents arising from any use of the appliance not in accordance with these instructions. -
Page 4: Warranty
WARRANTY VIETA Warranty covers a period of one year from the date of receipt of this equipment, to cover all repairs made by the Technical Service. WARRANTY EXCLUSIONS: The following are not covered by warranty, and therefore the total repair cost will... -
Page 5: Declaration Of Conformity
DECLARATION OF EC CONFORMITY SeeSound, S.L. C/Vico, 30 - 08021 Barcelona (Spain) Declara que la serie La-115S plus: Declares that La-115S plus series: Cumple con los objetivos de las siguientes directivas: Abide essential objectives relating directives: o Directiva de baja tension (Low Voltage Directive) 2006/95/CE o Directiva de compatibilidad Electromagnética (EMC) 2004/108/CE... -
Page 8: Description
DSP allows the system to achieve high SPL keeping the system controlled and save. La-115S plus A.- The amplifier is used in mono-bridge delivering 1500W continuous (1Khz 0,4% THD) at 8 ohms, with termal, shortcircuit and system overload protection. - Page 9 La-115S plus P Acoustic cabinet with the same format tan the self-powered version. It is very easy to change from one model to the other one as the only part that changes is the amplifier that has the same dimentions tan the passive filter. The speaker cables are connected to +1 and -1 Speakon terminals.
-
Page 10: Amplifier Description
Red LED indicates amplifier has reached the maximum temperature. The system will stop working until the temperature decreases. 8) SIGNAL: Green LED indicates signal presence. 9) READY: Green LED Indicates unit is on and working properly. Voltage selection and fuse: La-115S plus A... -
Page 11: La-115S Plus A Presets
La-115 S Plus A PRESETS PRESET 1: Application: La-8 plus A configuration 1 (2x La-8 plus A and 1x La-115S plus A) PRESET 2: Application: La-8 plus A configuration 2 (1x La-8 plus A and 1x La-115S plus A) PRESET 3: Application: La-12 plus A configuration 1 (2x La-12 plus A and 1x La- 115S plus A) -
Page 12: Technical Specifications
PRESET 4: Application: La-12 plus A configuration 2 (1x La-12 plus A and 1x La- 115S plus A) TECHNICAL SPECIFICATIONS La-115 plus A Frequency response: 40 Hz – 120 Hz (Preset 1) LF operative frequency (-10dB): 36 Hz Maximum SPL: 125dB, pico 131dB Components: 1 x 15”... -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS La-115 plus P características Frequency Response: 40 – 200 Hz (Preset) Frequency Range: 48 – 20 KHz Maximum SPL: 125 dB, pico 131 dB Impedance: 8 Ω Power handling RMS/Prog./Peak 900 W/ 1800/ 3000 W Components: 1 x 15” speaker 4” coil (100 mm.) 1000W AES Important: Use an external crossover with HPF @ 35 Hz, 24 dB/oct Butt. -
Page 14: Dimensions La-115S Plus A Y La-115S Plus P
LA-115 S plus A y La-115 S plus P Dimensions...
