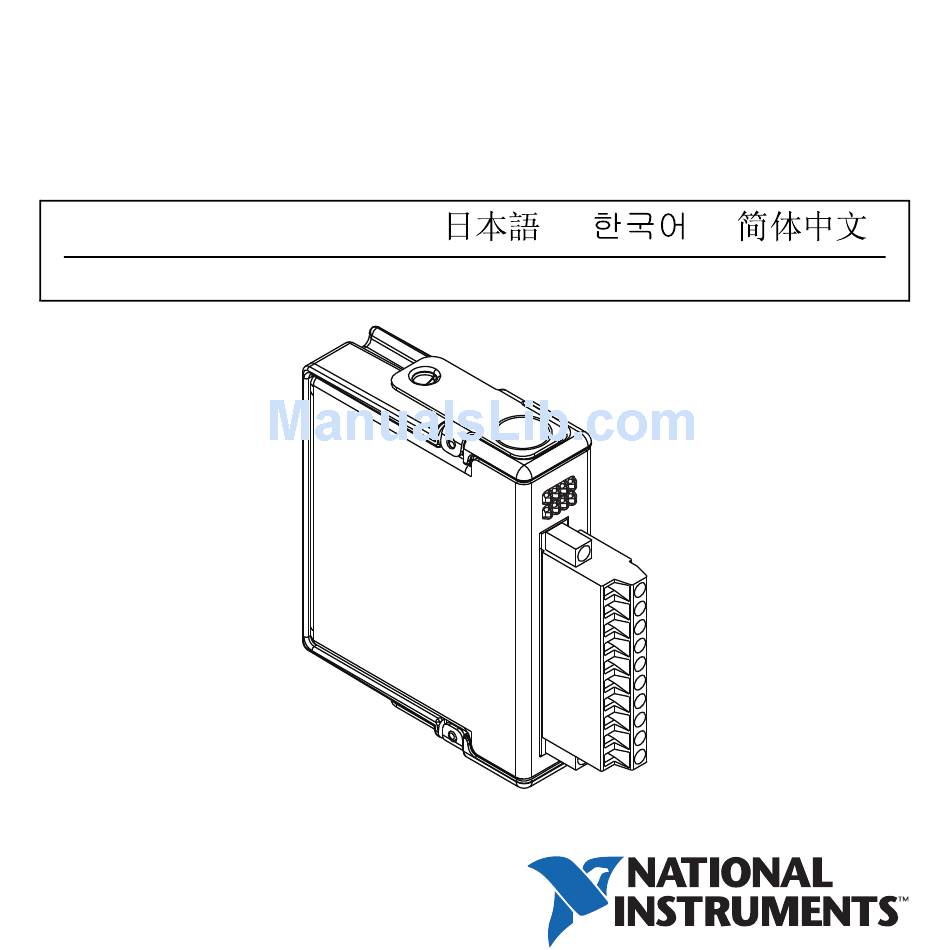

- Page 1 GETTING STARTED GUIDE NI 9437 8-Channel, 250 V Sinking Digital Input Module Français Deutsch ni.com/manuals...
-
Page 2: Safety Guidelines
The guidelines in this document are specific to the Note NI 9437. The other components in the system might not meet the same safety ratings. Refer to the documentation for each component in the system to determine the safety and EMC ratings for the entire system. -
Page 3: Safety Guidelines For Hazardous Voltages
Do not mix hazardous voltage circuits and Caution human-accessible circuits on the same module. Make sure that devices and circuits connected Caution to the module are properly insulated from human contact. NI 9437 Getting Started Guide | © National Instruments | 3... - Page 4 You must use the NI 9932 connector backshell kit to ensure that the terminals are not accessible. Figure 1. NI 9932 Connector Backshell 4 | ni.com | NI 9437 Getting Started Guide...
-
Page 5: Safety Voltages
This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. Do not connect the NI 9437 to signals or use for Caution measurements within Measurement Categories III or IV. -
Page 6: Electromagnetic Compatibility Guidelines
To ensure the specified EMC performance, Caution operate this product only with shielded cables and accessories. Do not use unshielded cables or accessories unless they are installed in a shielded enclosure with 6 | ni.com | NI 9437 Getting Started Guide... -
Page 7: Special Guidelines For Marine Applications
In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. NI 9437 Getting Started Guide | © National Instruments | 7... -
Page 8: Preparing The Environment
Preparing the Environment Ensure that you are using the NI 9437 in an environment that meets the following specifications: Operating temperature (IEC 60068-2-1, IEC 60068-2-2) ..-40 °C to 70 °C Operating humidity (IEC 60068-2-56)......10% to 90% RH, noncondensing Pollution Degree ....... -
Page 9: Connecting The Ni 9437
Connecting the NI 9437 The NI 9437 provides connections for 8 digital input channels. Figure 2. NI 9437 Pinout NI 9437 Getting Started Guide | © National Instruments | 9... -
Page 10: Connecting Sourcing-Output Devices
You can connect sourcing-output devices to the NI 9437. You must connect a supply voltage to the V pin on the NI 9437. Input channels on the NI 9437 read ON or OFF depending on the threshold set by the V pin. The V... -
Page 11: Connecting A Split-Rail Power Supply
Connecting a Split-Rail Power Supply You can connect a split-rail power supply to the NI 9437. A split-rail power supply consists of a floating power supply that is weakly centered around earth ground using bias resistors. Figure 4. Connecting a Split-Rail Power Supply... - Page 12 The NI 9437 has eight LEDs to display the ON/OFF state of the eight channels. When an LED is lit, the corresponding channel is ON and data is being read from the NI 9437. When an LED is dark, the corresponding channel is OFF.
-
Page 13: Connection Considerations
24 VDC to 250 VDC. • Output devices that you connect to the NI 9437 must be able to source enough current to overcome the NI 9437 input load (burden). The NI 9437 burden is dynamic and varies depending on the input voltage. -
Page 14: Where To Go Next
NI 9437 Datasheet NI 9437 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services & Resources ni.com/services ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software 14 | ni.com | NI 9437 Getting Started Guide... -
Page 15: Worldwide Support And Services
United States, visit the Worldwide Offices section of to access the branch office ni.com/niglobal websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI 9437 Getting Started Guide | © National Instruments | 15... - Page 16 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents . You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product.
