WOLFF OGC-TAS Operator's Manual

Ookami gold scissors sharpening system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

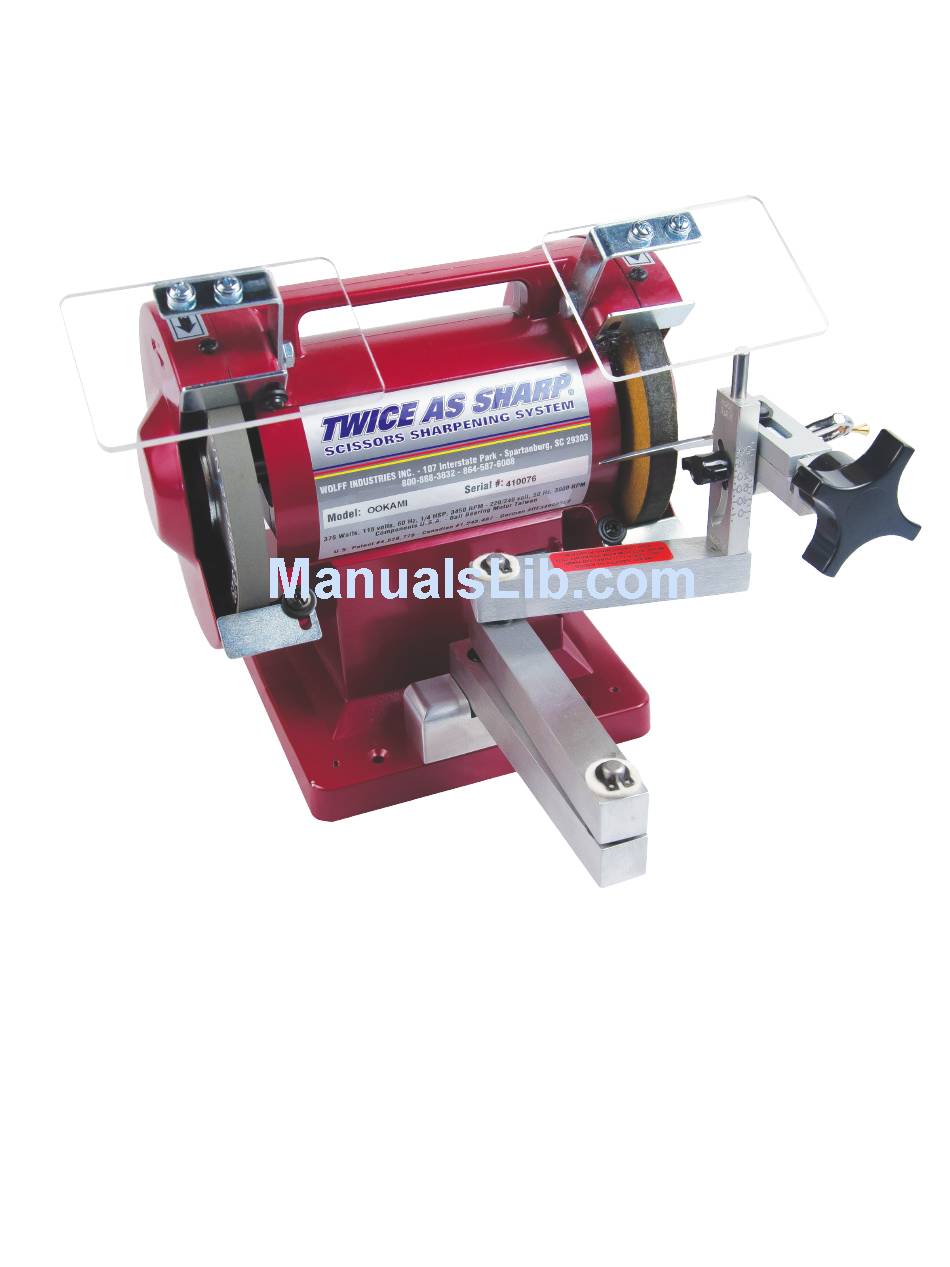

OOKAMI GOLD
®
SCISSORS SHARPENING SYSTEM
OPERATORS MANUAL
CUSTOMER SERVICE 1-800-888-3832
Part # 13000
Developed and manufactured in the USA
by Wolff Industries for sharpening
the world's finest scissors and shears.
Revision 1/11/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OGC-TAS and is the answer not in the manual?

Questions and answers

Related Manuals for WOLFF OGC-TAS

Summary of Contents for WOLFF OGC-TAS

  • Page 1 OOKAMI GOLD ® SCISSORS SHARPENING SYSTEM OPERATORS MANUAL CUSTOMER SERVICE 1-800-888-3832 Part # 13000 Developed and manufactured in the USA by Wolff Industries for sharpening the world’s finest scissors and shears. Revision 1/11/16...

  • Page 2: Background, Technical Support, And Trademark Usage

    The July 1983 Consumers Reports rates the American Scissors designed and produced by Lee Wolff as a best buy. He also designed a full line of unique plastic handled scissors with interchangeable parts.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SUBJECT PAGE Background, Technical Support, and Trademark Usage ............2 Table of contents .........................3 A-1-OGU conversion kit installation instructions ..............4 Installing Diamond sharpening wheel ................4 Installing OOKAMI GOLD® polishing wheel ..............4 Part names for Scissors and Shears Sharpener .................5 Set up and safety ........................5 Machine maintenance .......................6 How to change the wheels ......................7...

  • Page 4: A-1-Ogu Conversion Kit Installation Instructions

    OOKAMI GOLD® Scissors Sharpening System A-1-OGU Upgrade Kit Installation Instructions NOTE: These steps are to install the A-1-OGU kit only. Go to safety instructions on page 8 for all other systems. This conversion kit will fit all the Twice as Sharp® Models or the Foley Belsaw #327. See how to change the wheels on page 10.

  • Page 5: Part Names For Scissors And Shears Sharpener

    4. Put one of the flanges from step 3 on the shaft first. Slide the OOKAMI GOLD® Polishing Wheel (supplied with the kit) on the shaft next to the flange. Put the other flange removed in step 3 on the shaft.

  • Page 6: Machine Maintenance

    CONVERTING FROM 110 VOLT TO 220 VOLT: See Page 22 of this Operators Manual to convert the OGC-TAS, OGA-TAS or OGS-TAS OOKAMI GOLD® sharpening systems to run on 220 - 240 volts. As the wheels wear adjust the two finger and two tongue guards to maintain the maximum 1/16 inch between the wheels and the guards.

  • Page 7: How To Change The Wheels

    Self Adjuster STYLE CONVEX SHEAR STEP 1: TAKING SHEARS APART Using the scissors screw pliers, Wolff part number #20940 or a screw driver take the shears completely apart. Set the screw and washer (also nut if shear is a self adjuster)

  • Page 8: Step 2: Installing The Clamp

    SHARPEN STEP 2: INSTALLING CLAMP Place scissors clamp in the hole in the top arm. The word sharpen must be on top as pictured. STEP 3: CLAMPING SCISSORS Place one of the blades in the clamp, move the blade until 1/2 of the screw hole is covered by the jaw of the clamp.

  • Page 9: Step 6: Deburring

    STEP 5: SHARPENING EACH BLADE ON THE DIAMOND WHEEL - CONTINUED Remove the blade and sharpen the other blade following the exact same procedure. STEP 6: DEBURRING Remove the burrs from the inside of the blades. These steps are also important if the ride area is rough or damaged.
  • Page 10 These are enlargements (approximately 120x) of the inside of the cutting edge on a pair of medium priced beauty shears made in Japan. Before honing (factory finish) The same blade after honing on the OOKAMI Deburr paper ® and then 8 - 10 strokes on the OOKAMI Finish paper.
  • Page 11 These are enlargements (approximately 120x) of the inside of the cutting edge on a pair of higher priced beauty shears made in Japan. Before honing (factory finish) The same blade after honing on the OOKAMI Deburr paper ® and then 8 - 10 strokes on the OOKAMI Finish paper.

  • Page 12: Step 8: Assembling The Shears

    STEP 7: POLISHING THE BLADES - Continued Note: Put a slight amount of compound on the OOKAMI GOLD ® wheel each time you polish a blade. a. While the sharpener is running, apply the compound to the ® OOKAMI GOLD wheel (a light 1 second touch is all that is needed).

  • Page 13: Step 9: Polishing The Shears

    STEP 9: POLISHING THE SHEARS (ASSEMBLED) Note: Put a slight amount of compound on the OOKAMI GOLD ® wheel each time you polish a blade. a. Insert one blade of the assembled shear back into the clamp. b. Slide the blade back and forth against the polishing wheel with firm pressure.

  • Page 14: Step 11: Checking The Set Of The Blades

    b. Facial tissue (Kleenex ) separated into single sheets will show ® any burrs or dull spots with a tear or fold. Hang the end of the tissue over the table or from your hand. Hold the scissors without any side pressure and cut. If they do not cut cleanly, repeat step 9.

  • Page 15: Step 12: Balancing The Shears

    1/2 to 3/4 of the way up the blades. It is best to set them about the same as you received them. a. Using the Wolff set screw pliers adjust the free fall. The set screw pliers hold from both sides of the shears and provide more leverage to prevent damage to the screw head.

  • Page 16: Step 14: Matching The Tips

    Handle Bender - the best way to bend the handles to make the tips cross properly. Wolff Part # HB-01 STEP 14: MATCHING THE TIPS The tips of the shears should be the same length. a. While holding the blades closed, grind away the tips until they are the same length.

  • Page 17: How Much To Charge

    HOW MUCH TO CHARGE The usual charges for sharpening and reconditioning of barber and beauty scissors and shears should range from $20.00 to $40.00. This, of course, will vary depending on how much work is needed. Lower priced scissors ($100.00 or less) are better sharpened on the Twice As Sharp ®...

  • Page 18: Corrugating Instructions

    4. Begin close to the pivot, holding your thumb against the side of the file to help guide it straight. NOTE: When using the Wolff Diamond File, part number #22200 use VERY LIGHT PRESSURE to prevent damage to the file! Diamonds cut freely and only a few ounces of hand pressure are needed.

  • Page 19: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Is there only one way to sharpen shears? No. There are many methods to sharpen shears. We at Wolff Industries strive to achieve the follow- ing: • Sharpest edge possible • Longest life • Smooth feel • Reduce slide of hair •...
  • Page 20 Wolff tested many different coatings at a fac- tory with hard to cut materials (Kevlar) and found no difference in edge longevity between coated and non-coated scissors.

  • Page 21: Convexing A Bevel Edge Shear

    CONVEXING A BEVEL EDGE SHEAR USING THE STANDARD CLAMP Follow these steps if you receive a shear to sharpen that should be convex but has a bevel edge from another sharpener. This procedure will help you convert a bevel edge into a convex edge. You will need the OOKAMI GOLD ®...

  • Page 22: Converting From 110 Volt To 220 Volt, With Existing Switch

    CONVEXING A BEVEL EDGE SHEAR USING THE STANDARD CLAMP - CONTINUED h. Insert the blade back into the clamp. Install the clamp into the honing position on the OOKAMI GOLD ® polishing wheel. Polish the blade, see: STEP 7: POLISHING THE BLADES - on page 9 Remove the clamp, reduce the angle on the clamp by 5 o (if was at 55 o , then set to 50 o ).

  • Page 23: Converting From 110 Volt To 220 Volt, With New Switch

    CONVERTING FROM 110 VOLT TO 220 VOLT * * * * WARNING * * * * UNPLUG THE SHARPENER FROM POWER SOURCE BEFORE ATTEMPTING TO CHANGE THE SETTINGS. To convert the Twice as Sharp® scissors sharpening system from 110 volts to 220 volts. 1.

  • Page 24: Scissors And Shears Terms Dictionary

    SCISSORS AND SHEARS TERMS DICTIONARY 40 o Angle: USA angle measurements 30 o 50 o Convex edge Hollow Grind 40 o 60 o Japanese angle measurements 50 o Balance: The final adjustment steps of scissors and shears sharpening are referred to as balancing or finishing.
  • Page 25 Cast: Casting is metal poured into molds while heated to a liquid state. Many of the beauty shears from Taiwan are cast. Ceramic: Ceramic is a porcelain like material, (usually with a high alumina content), pressed from a powder and fused at a high temperature. Ceramics are very hard and have a long wear life, but are also brittle and subject to breakage and chipping.
  • Page 26 Forged: Forged shears are stamped to shape while the metal is red hot (soft). This produces high carbon shears that are good to high quality. Most large tailor and industrial shears are made this way. Free Fall: Free fall is the measurement of how far the scissors close while holding one blade tip pointed up and letting the other handle drop.
  • Page 27 Ice: This is a metal hardening process. Stainless steel is heated to almost 2000 F and then cooled to about -100 F. All quality shears are ice tempered, even if not marked. Left Hand Shears: True left hand shears have the blade reversed. The thumb blade is on the right hand side of the finger blade.
  • Page 28 Set: The set of the scissors is the amount of gap between the blades. With the blades closed, only the tips and the ride actually touch. The set provides the spring pressure that causes the blades to stay touching during the cutting action. Too much set and the blades cut into one another or are very tight.
  • Page 29 Stamped: The shears blades are stamped from rolled steel using a formed die. These are the lowest cost shears to produce and are often very durable, but may not be as smooth feeling. Most plastic handle fabric shears are made this way. Steel: Iron with carbon and other elements added.

  • Page 30: Parts Included With The Ookami Gold

    A must for removing large nicks from high quality barber and beauty shears before sharpening. OOKAMI GOLD ® Optional Equipment Wolff Carrying Case Part #24950 Made of reinforced ballistic material with foam insert which can be custom- ized to your requirements. Additional storage pockets are inside the case.
  • Page 31 (not for free-hand use). OOKAMI GOLD ® Optional Equipment Wolff Dust Collector Part #DC-1000 Made in the USA of powder coated steel. Includes a two stage filtration system (1st stage cyclonic and 2nd stage is a MERV 8 filter) and two blowers which provide unparalleled suction.

  • Page 32: Parts List For Clamps

    PARTS LIST FOR CLAMPS Shears-Lock Clamp Part #30004 This is the clamp that comes with your OOKAMI GOLD® scissors sharpening system. It will adjust to the various tapers of scissors blades and hold them tightly while sharpening. Narrow Clamp Part #30005 This clamp is a great accessory if you sharpen very small surgical and embroidery scissors.
  • Page 33 Convexing Clamp Convexing Clamp With Ergonomic Knob Part #30009 The convexing clamp helps speed up the polishing process when sharpening OOKAMI GOLD® convex edge beauty and grooming shears. A fixed angle is set with the upright, when the clamp is moved out of the detent postion al- lows full movement to polish the back edge of the blade.

  • Page 34: Limited Warranty, Disclaimer, And Guarantee

    There is no expressed warranty other than limited warranty stated above. There is no implied war- ranty for the merchantability or for fitness for a particular purpose. Wolff Industries, Inc., will not be responsible for any consequential damages. Damages are limited to the replacement of defec- tive parts.
