Daewoo DSB-092A Service Manual page 90

Reset(8)
DESCRIPTION

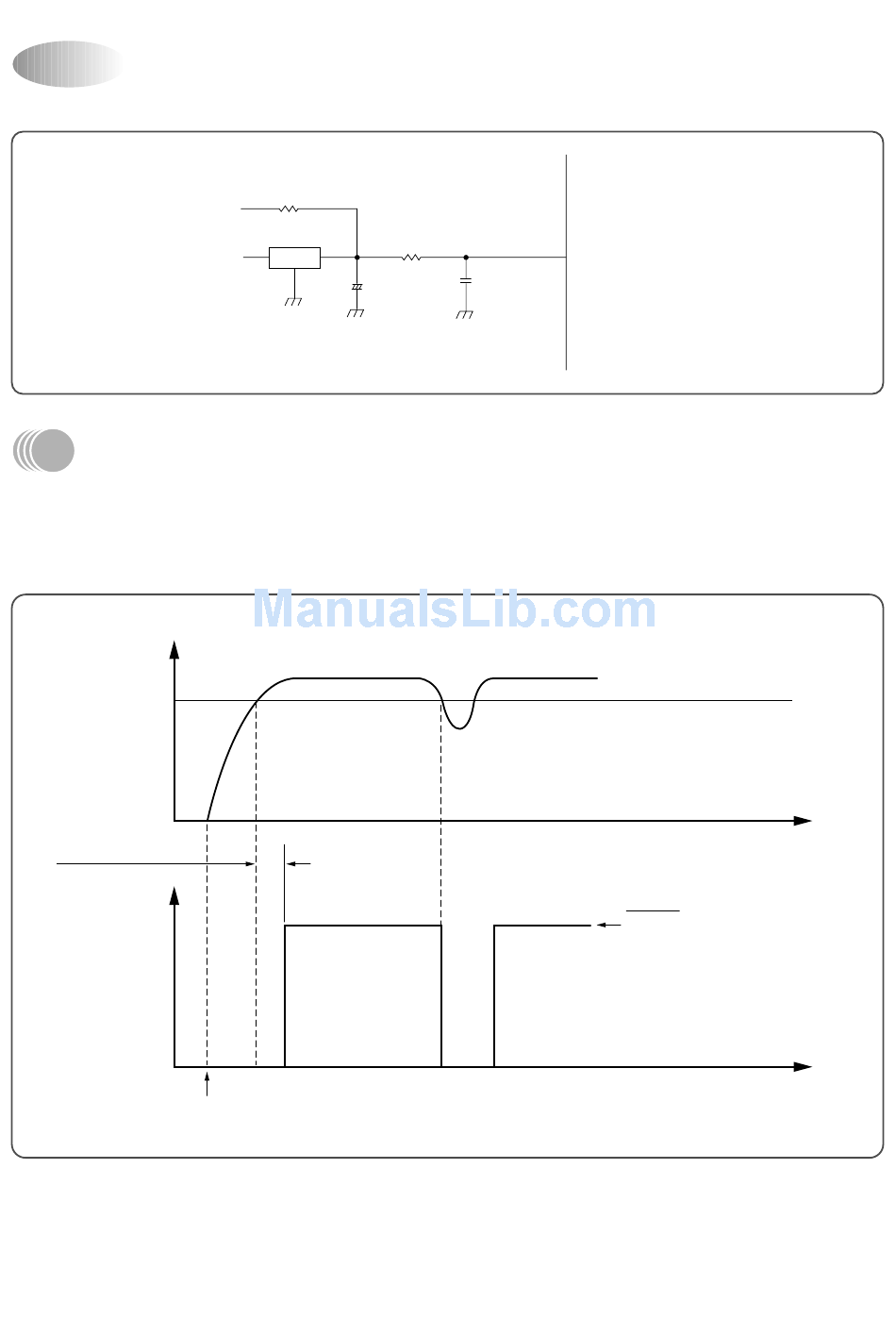

Voltage less than about 0.8V put in Micom Terminal of Number 18 and then Micom reset. Reset IC detect
Power ON and Voltage less than 4.25V, and then send Reset Signal.
4.25V
DELAY TIME
FOR POWER ON
H
L
POWER
R13 5.6K
7042P
IC5
4.7uF/50V
ON
1K R12
CC9
10.3
CE4
85
MICOM
18
Vcc (+5V)
RESET
t
t
