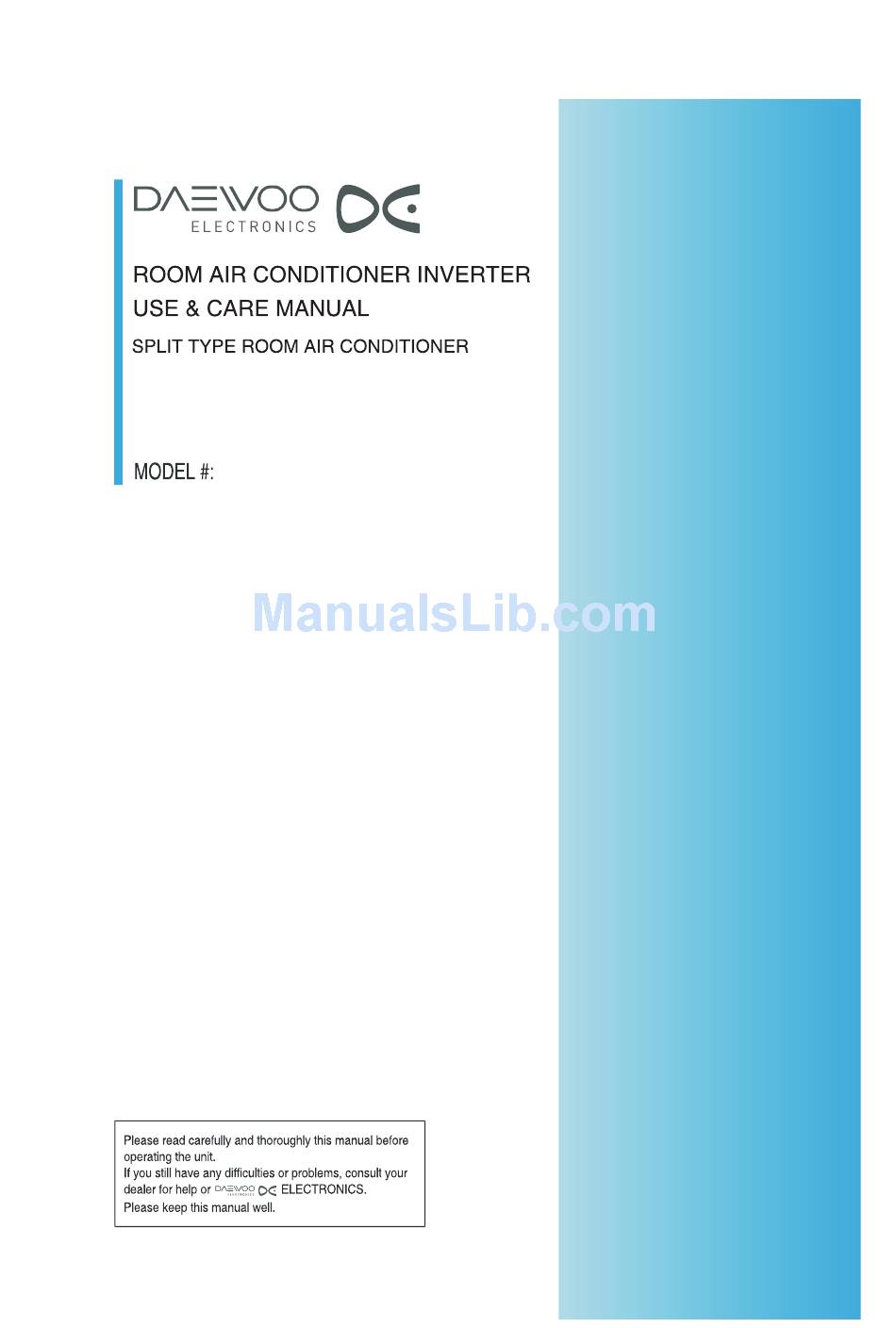

- Page 1 DSB-F0983ELH-V DSB-F1283ELH-V DSB-F1883ELH-V DSB-F2483ELH-V...
-
Page 2: Table Of Contents
Contents safety instructions Preparation before use Preset Safeguarding the envirionment Safety Precautions Identification of parts Indoor unit Outdoor unit Display introduction Maintenance Protection Troubleshooting Installation instructions Installation diagram Select the installation locations Indoor unit installation Wiring diagram Outdoor unit installation Air purging Remote controller operating instructions. -
Page 3: Safety Instructions
Safety instructions To guarantee the unit work normally, please read the manual carefully before installation, and try to install strictly according to this manual. Do not let air enter the refrigeration system or discharge refrigerant when moving the air conditioner. Properly ground the air conditioner into the earth. -
Page 4: Preparation Before Use
Preparation before use Note When charging refrigerant into the system, make sure to charge in liquid state,if the refrigerant of the appliance is R410A.Otherwise, chemical composition of refrigerant (R410A) inside the system may change and thus affect performance of the air conditioner. According to the character of refrigerant (R410A,the value of GWP is 1975), the pressure of the tube is very high, so be sure to be careful when you install and repair... -
Page 5: Safety Precautions
Safety precautions Symbols in this Use and Care Manual are interpreted as shown below. Be sure not to do. Grounding is essential. Warning: Incorrect handling could Pay attention to such a situation. cause a serious hazard, such as death, serious injury, etc. Use correct power supply in accordance with the rating plate requirement. -
Page 6: Identification Of Parts
Identification of parts Indoor unit Front Panel Air Intake Display Panel Emergency Panel Air Outlet Vertical Adjustment Louver Horizontal Adjustment Louver Air Filter Remote Controller Air Intake Outdoor unit Pipes and Power Connection Cord Drain Hose Note: Condensate water drains at COOLING or DRY operation. -
Page 7: Display Introduction
Display introduction Temperature indicator Display set temperature. It shows FC after 200 hours of usage as reminder to clean the filter. After filter cleaning press the filter reset button located on the indoor unit behind the front panel in order to reset the display.(optional) Running indicator It lights up when the AC is running. - Page 8 Display introduction TLseries Emergency button To let the AC run or stop by pressing the button. ON/OFF The symbols may be different from these models, but the functions are similar.
-
Page 9: Maintenance
Maintenance Front panel maintenance Air filter maintenance Cut off the power supply It is necessary to clean the air filter after using it for about 200 hours. Turn off the appliance first before disconnecting Clean it as follows: from power supply. Stop the appliance and remove the air filter. -
Page 10: Protection
Protection Operating condition Noise pollution The protective device maybe trip and stop Install the air conditioner at a place that the appliance in the cases listed below. can bear its weight in order to operate more quietly. Outdoor air temperature is over 24 C Install the outdoor unit at a place where HEATING Outdoor air temperature is below -10 C... -
Page 11: Troubleshooting
Troubleshooting The following cases may not always be a malfunction, please check it before asking for service. Trouble Analysis If the protector trip or fuse is blown,please wait 3 minutes and start again.The protector device Does not run may be preventing unit from working. The batteries in the remote control may be dead Check to see if the appliance is properly plugged in. -
Page 12: Installation Instructions
Installation instructions Installation diagram Distance from ceiling should be over 200 mm Distance from wall should be over 50mm Distance from the wall should be over 50mm Distance from floor should be over 2500mm. Air intake distance from the wall should be over 250mm Air intake distance from the wall should be... -
Page 13: Select The Installation Locations
Installation instructions Select the installation location Location for Installing Indoor Unit Where there is no obstacle near the air outlet and air can be easily blown to every corner. Indoor unit Where piping and wall hole can be easily arranged. Keep the required space from the unit to the ceiling and wall according to the installation diagram on previous page. -
Page 14: Indoor Unit Installation
Installation instructions Indoor unit installation 1. Installing the Mounting Plate Decide an installing location for the mounting plate according to the indoor unit location and piping direction. Keep the mounting plate horizontal with a horizontal ruler or dropping line. Drill holes of 32mm in depth on the wall for fixing the plate. Insert the plastic plugs to the hole, fix the mounting plate with tapping screws. - Page 15 Installation instructions Piping Joints Thermal Insulation: Wrap the piping joints with thermal insulation materials and then wrap with a vinyl tape. wrapped with vinyl type Thermal insulation Piping Thermal Insulation: Large pipe a. Place the drain hose under the piping. Thermal insulation tube b.
- Page 16 Installation instructions 4. Connecting of the Cable Front panel Indoor Unit Terminal (inside) Connect the power cord to the indoor unit by connecting the wires to the terminals on the control board individually in accordance with the outdoor unit connection. Cabinet Note: For some models, it is necessary to remove the cabinet to Indoor unit...
-
Page 17: Wiring Diagram
Installation instructions Wiring diagram Make sure that the color of the wires in the outdoor unit and terminal No. are the same as those of the indoor unit. 7K* 12K* Model Indoor unit Outdoor unit Indoor unit Outdoor unit Terminal Terminal Terminal Terminal... -
Page 18: Outdoor Unit Installation
