- Page 1 Waterproof Digital Refractometer 300058, 300059, 300060, 300062, 300063, 300064 & 300065 Instruction Manual...
- Page 2 Waterproof Digital Refractometer Copyright ©2017 by Sper Scientific ALL RIGHTS RESERVED Printed in the USA The contents of this manual may not be reproduced or transmitted in any form or by any means electronic, mechanical, or other means that do not yet exist or may...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ....4 2. MATERIALS SUPPLIED ... . . 5 3. -
Page 4: Introduction
Housed in a protective rubberized IP65 Waterproof case to safeguard the electronics from wet environments and makes for easy clean ups Model 300058 features a scratchproof sapphire lens.Measure samples as small as 1 ml, in the field with laboratory accuracy. Sample temperature is initially displayed on the large LCD followed by the measurement results. -
Page 5: Materials Supplied
MATERIALS SUPPLIED • Refractometer • One lithium-Ion battery • DC Power Adapter • Distilled Water • Transfer pipet • Instruction Manual • Carrying Case FEATURES • Displays sample temperature followed by measurement result • IP65 Waterproof, rugged exterior • Rechargeable battery •... -
Page 6: Power Supply
POWER SUPPLY The meter is powered by one rechargeable lithium-ion battery. An icon in the upper-right corner of the LCD indicates the level of battery power available: 75%-100% power 40%-75% power 15%-40% power Less than 15% power. (This icon will flash) The DC adapter included plugs into the port on the left side of the meter. -

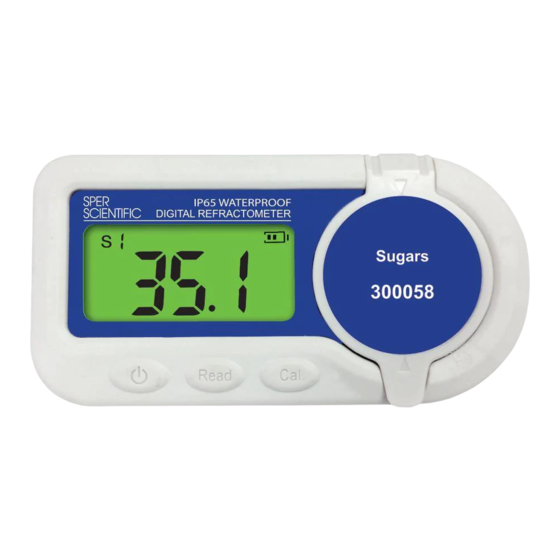

Page 7: Front Panel Description
FRONT PANEL DESCRIPTION 1. POWER - Power on/off 2. READ - Read measurements /select scale 3. CAL - Calibrate meter 4. LENS COVER LCD DISPLAY 1. S 1 - Current scale number 2. BATTERY ICON - Battery power level 3. DISPLAY - Displays temperature and readings... -
Page 8: Calibration
CALIBRATION Use distilled water (refractive index 1.3330 to 1.3340) to calibrate the meter. 1. With the meter turned off, place a few drops of distilled water on the lens. 2. Close the lid to cover the lens. 3. Press POWER to turn the meter on. 4. -
Page 9: Measurement Procedures
MEASUREMENT PROCEDURES After calibration you can remove the distilled water from the lens and begin measurement. Note… Use a clean, lint-free cloth or tissue to remove solutions from the lens. 1. With the meter turned off, place a few drops of the solution being measured on the lens. -
Page 10: Error Codes
Certain conditions can cause an error code to appear on the LCD: Error Code & Cause The measurement is above the upper limit The measurement is below the lower limit SCALE INFORMATION Scale Indicator & Name - 300058 Brix Refractive Index Dextran Fructose Glucose... - Page 11 Scale Indicator & Name - 300062 Salinity % Salinity ‰ Specific Gravity Refractive Index Scale Indicator & Name - 300063 Cleaner Ethylene Glycol Propylene Glycol Battery Scale Indicator & Name - 300064 Urine Specific Gravity Serum Protein Refractive Index Scale Indicator & Name - 300065 ADBLUE Refractive Index...
-
Page 12: Specifications
0.0 °C to 40.0 °C ±0.8 °C Sample Capacity 0.3 mL to 1 mL Measurement Time 0.5 to 1.0 seconds Waterproof Rating IP65 Sugars - 300058 Unit of Measure Range Resolution Accuracy Brix 0.0 to 95% 0.1% ±0.2% Refractive Index 1.3330 to... - Page 13 Brix 0 to 60% - 300059 Unit of Measure Range Resolution Accuracy Brix 0 to 60% 0.1% ±0.2% Refractive Index 1.3330 to 0.0001 ±0.003 nD (nD) 1.4420 Brix 0 to 95% - 300060 Unit of Measure Range Resolution Accuracy Brix 0 to 95% 0.1% ±0.2%...
- Page 14 Automotive - 300063 Unit of Measure Range Resolution Accuracy *Windshield 32 to -40°F 0.1°F ±0.2°F Washer Fluid Ethylene Glycol 32 to -50°F 0.1°F ±0.2°F Propylene Glycol 32 to -50°F 0.1°F ±0.2°F 1.000 to Battery 0.001 ±0.005 sg 1.500 sg Note... *Windshield Washer Fluid is an aqueous cleaner used in a vehicle’s automated spray system.
- Page 15 Clinical - 300064 Unit of Measure Range Resolution Accuracy Urine Specific 1.000 to 1.050 0.001 ±0.002 Gravity Serum Protein 0 to 12 ±0.2 g/dL Refractive Index 1.3330 to 0.0001 ±0.003 nD (nD) 1.3900 Diesel Exhaust Fluid - 300065 Unit of Measure Range Resolution Accuracy ADBLUE...
-
Page 16: Warranty
If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available. This warranty does not cover probes, batteries, battery leakage, or damage resulting from accident, tampering, misuse, or abuse of the product.
