- Page 1 Solar Pack EN - Installation instructions...
-
Page 2: Table Of Contents

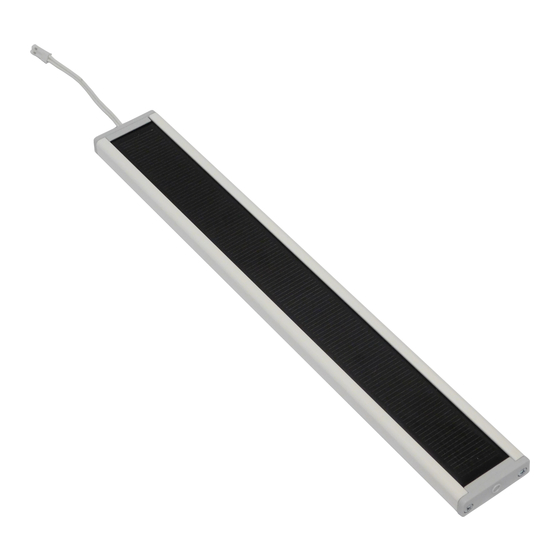

3.3.1 Battery Preparation 3.4 Battery Tube Install Location 1. Introduction Solar Pack is a group of components that work in unison as a long life energy source for Somfy 12 Volt WireFree™ motors. This Product is designed for indoor use only. -
Page 3: Installation
Always leave the photovoltaic cells unobstructed, do not put anything in front of them. The three components which make up the Solar Pack must be installed on the same side as the WireFree™... -
Page 4: Battery State Of Charge
WALL MOUNT CLIPS Shangri La Mount Clips Silhouette Mounting covering product hardware. The battery tube is compatible with Somfy Mounting Clips designed for REF#9013263 REF# 9013266 Clips REF# 9013264 Shangri-La (REF# 9013266) & Silhouette (REF#9013264) window covering products. -
Page 5: Product In Use
If the motorized shade does not operate due to an excessively diminished battery, the battery may require a full recharge by a Somfy Service provider. If the battery no longer provides adequate power to operate your motor, a freshly charged replacement battery & tube assembly may be ordered from your Somfy... -
Page 6: Solar Pack Performance Tables & Solar Zones
Solar Pack Performance Tables & Solar Zones SOLAR PACK FOR WIREFREE™ MOTORS REPLACEMENT ENERGY CHART BASED ON CYCLES / DAY FOR ROLL-UP, CORD LIFT & TILT Cycles per day for this orientation and shade size Solar Region SHADE LENGTH North...
