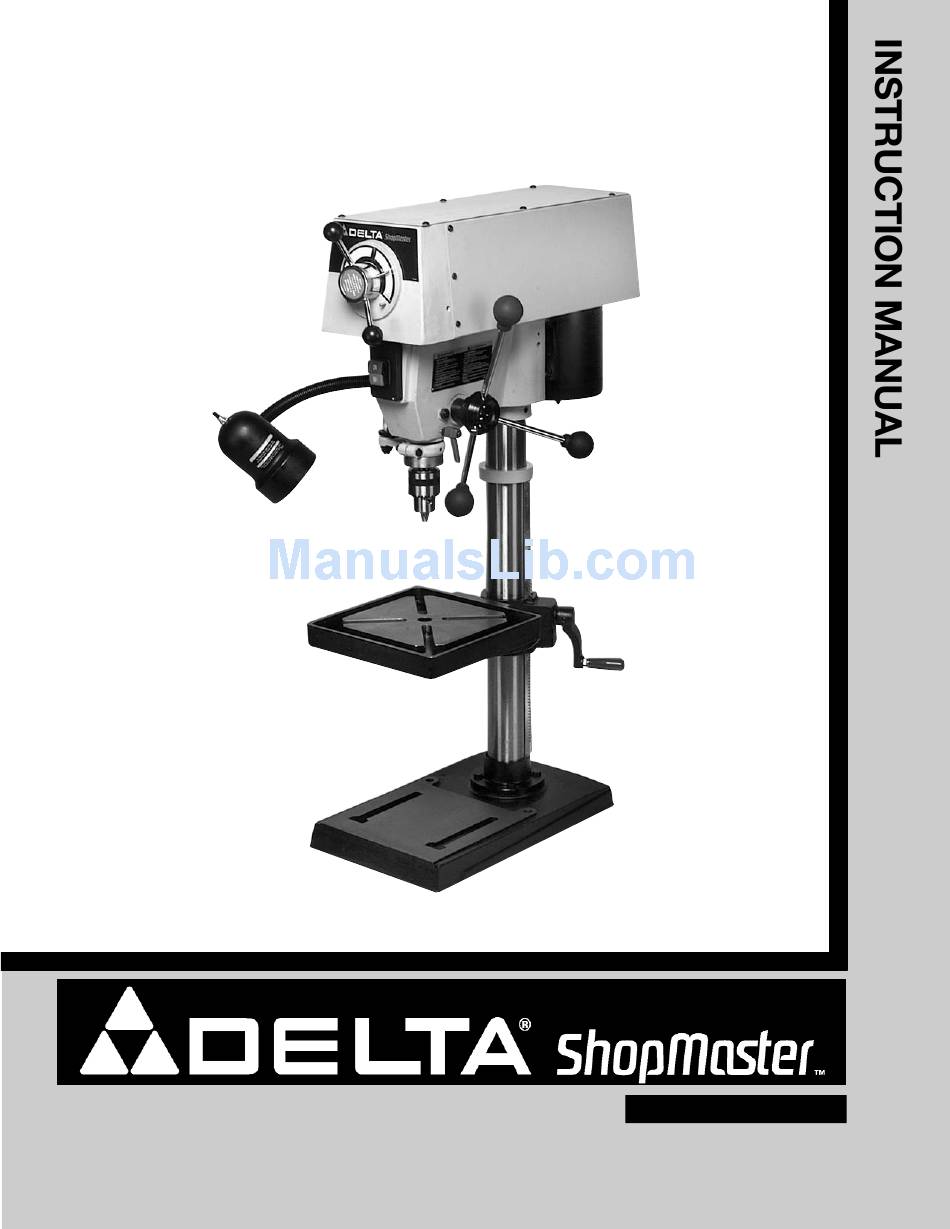

12" Variable Speed Drill Press
(Model DP350)
PART NO. 905584 - 01-31-03
Copyright © 2003 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 17
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ShopMaster DP350 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta ShopMaster DP350

Summary of Contents for Delta ShopMaster DP350

  • Page 1 12" Variable Speed Drill Press (Model DP350) PART NO. 905584 - 01-31-03 Copyright © 2003 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 17 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).

  • Page 2: Safety Guidelines - Definitions

    SAFETY GUIDELINES / DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protect- ing YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols to the right. Please read the manual and pay attention to these sections. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 3: Additional Safety Rules For Drill Presses

    TABLE. Do not attempt to drill a workpiece that does not have a flat surface against the table. Prevent the workpiece from rotating by clamping it to the table or by securing it against the drill press column. SAVE THESE INSTRUCTIONS.

  • Page 4: Power Connections

    A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug.

  • Page 5: Extension Cords

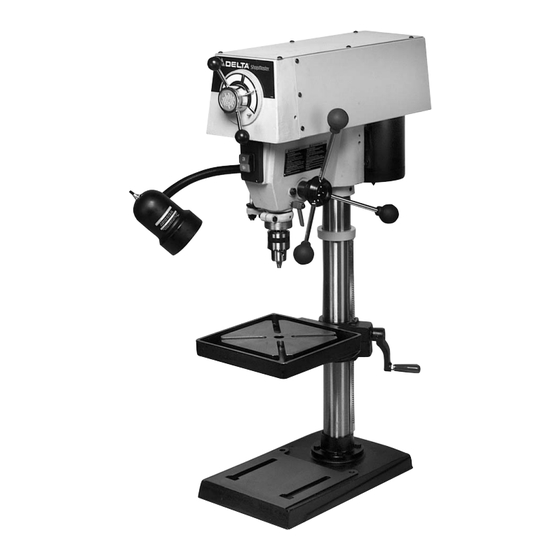

    FOREWORD Delta ShopMaster Model DP350 is a 12", variable speed, bench drill press with a flexible work lamp. The Model DP350 allows the operator to quickly and easily change the drill speeds without removing the cover and adjusting belts. The Delta ShopMaster Model DP350 is a valuable tool for any workshop.
  • Page 6 Fig. 1 Fig. 1 1 - Drill Press Head and Motor 2 - Column, Base Flange, and Rack 3 - Table 4 - Base DRILL PRESS PARTS Fig. 2 5 - Chuck 6 - Clamp Handle 7 - Pinon Shaft Handles (3) 8 - Table Raising and Lowering Handle 9 - M8x1.25x125mm Carriage Head Screws (2),...
  • Page 7 FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. 1. Assemble the column (A) Fig. 3, to the base (B) using the four screws, three of which are shown at (C).
  • Page 8 4. Slide raising rack (F) Fig. 7, table and table bracket onto drill press column, as shown. Make sure bottom of raising rack (F) Fig. 8, is inside the flange (J) on drill press base. 5. Re-assemble ring (E) Fig. 9, which was removed in STEP 1.
  • Page 9 7. Thread stud on clamp handle (M) Fig. 12, into hole in rear of table bracket, as shown. 8. Place the drill press head (N) Fig. 13, onto the column as far as it will go. Align head (A) Fig. 13A, to table (B), and base (C).

  • Page 10: Operating Controls And Adjustments

    STARTING AND STOPPING DRILL PRESS The power switch is located at the front of the drill press head. To turn the drill press “ON”, press the green start button (A) Fig. 17. To stop the drill press, push the red button (B).

  • Page 11: Table Adjustments

    The reflector track type light bulb should not extend below the lamp shade. TABLE ADJUSTMENTS 1. The table can be raised or lowered on the drill press column by loosening the table clamp (A) Fig. 19, and turning the table raising and lowering handle (B) Fig. 20.

  • Page 12: Variable Speed Control

    Raise the drill press table until the material to be drilled just touches the drill bit. 5. Drill a test hole to check the depth and readjust if necessary by rotating stop nut (A) Fig. 25, for fine ad- justment.

  • Page 13: Adjusting Spindle Return Spring

    (A) when tightened. Your drill press is to be used with drill bits with a shank of 1/2" or less in diameter. The following will give the inexperienced operator a start on common drill press operations. Use scrap material for practice to get a feel of the machine before attempting regular work.

  • Page 14: Correct Drilling Speeds

    Do not use hand bits which have a screw tip; at drill press speeds they turn into the wood so rapidly as to lift the work off the table and whirl it.
  • Page 15 (B) Fig. 31, located on top of the variable speed pulleys. Oil the holes when the drill press is turned OFF. Then turn the machine ON and run through the low and high speed ranges a few times.
  • Page 16 A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers, and Delta Authorized Service Stations. Please visit our Web Site www.deltamachinery.com for a catalog or for the name of your nearest supplier. Since accessories other than those offered by Delta have not been tested with this product, use of such accessories could be hazardous.
  • Page 17 PORTER-CABLE (CENTROS DE SERVICIO DE PORTER-CABLE Parts and Repair Service for Porter-Cable (Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable ARIZONA ILLINOIS Tempe 85282 (Phoenix) Addison 60101 (Chicago) 2400 West Southern Avenue 400 South Rohlwing Rd.
