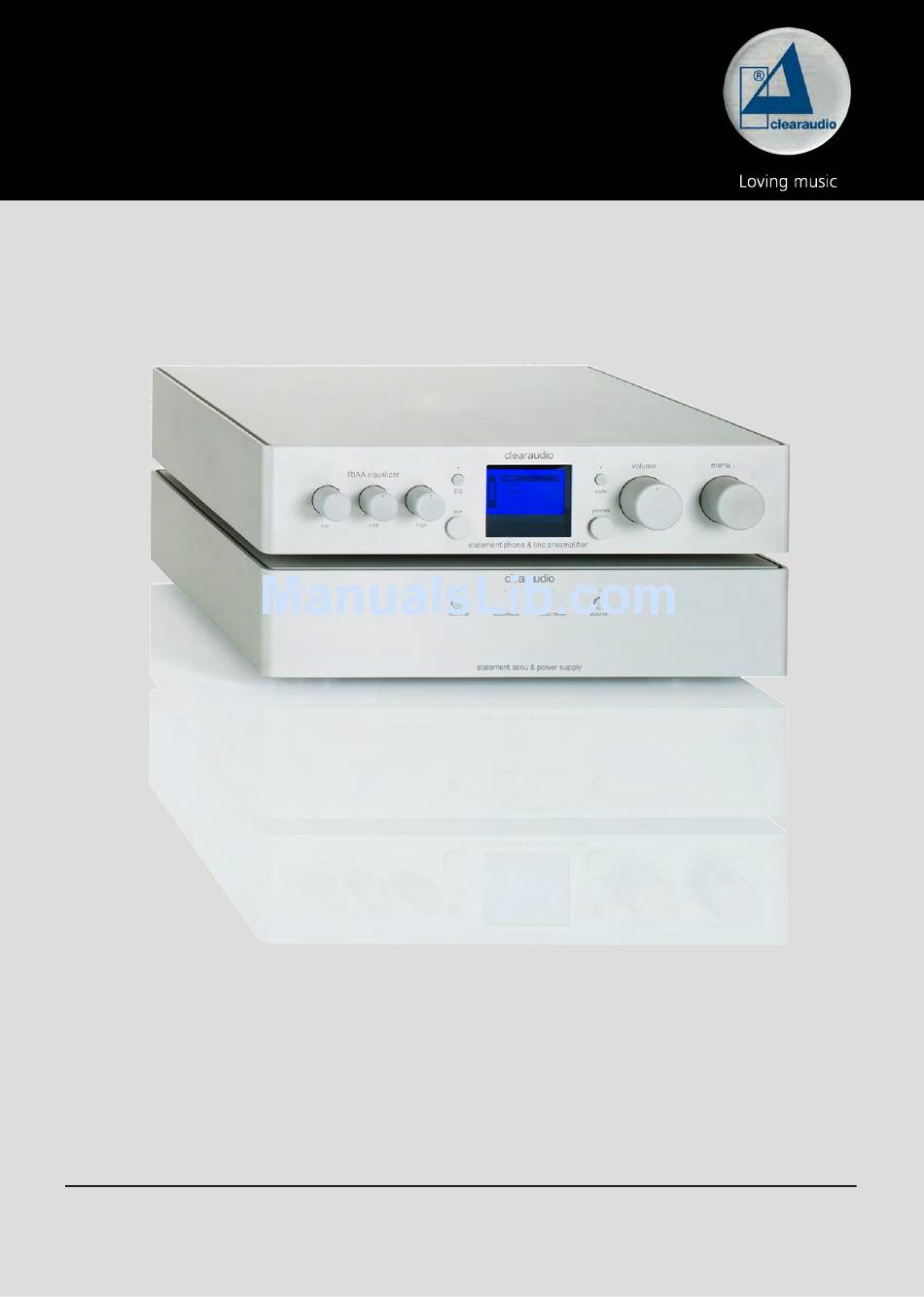

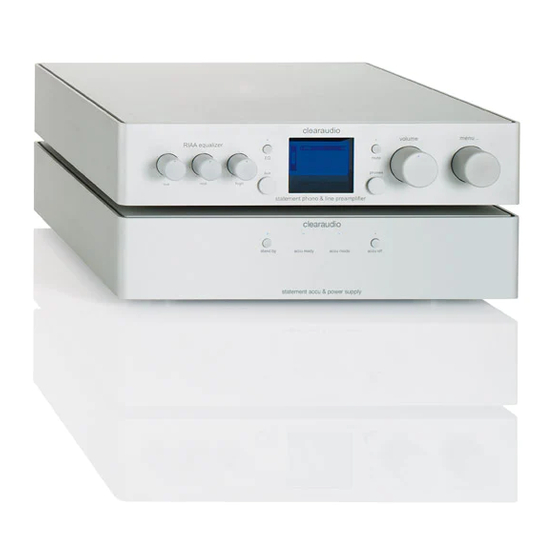

  • Page 1 User manual © clearaudio electronic GmbH, 2017/11 Made in Germany...
  • Page 2 The fully symmetrical circuit topology of the statement phono preamplifier together with the ability statement phono to use either RIAA, or almost any other phono equalization curve makes the pre- amplifier one of the most flexible and sophisticated phono preamplifiers in the entire audio world.

  • Page 3: Table Of Contents

    User manual Contents 1. Packing overview ..........4 2. Setup ..............4 - 5 statement phono 3. Back view of the ..... 6 4. General information of the display modes ..7 - 10 5. Safety instructions ..........10 6. Service ..............10 7. Technical specifications ........11 - 13...

  • Page 4: Packing Overview

    AC Power switch is in the OFF position! Only then you can disconnect the D-Sub connectors. For optimal audio performance we recommend that the statement phono is left continuously swit- ched on stand by made to minimize thermal cycling of the components.
  • Page 5 The automatic mute function will prevent any noise from reaching the louds- peakers if the statement phono is turned on or off while the power amplifiers are still turned on. 2.4. Minimizing Hum Note: You should minimize hum before listening to an LP record! Also we recommend the use of phono cables with symmetrical design such as Clearaudio “Quint”...

  • Page 6: Back View Of The Statement Phono

    User manual 3. Rear view of statement phono Pic. 1: Back view of the statement phono Pin connections: Inputs and Outputs XLR: Pin 1 = GND (Shield) Pin 2 = Hot (+) Pin 3 = Cold (-) Power Supply Pin 1, 9 = -18 V output class A buffer 15-pin.

  • Page 7: General Information Of The Display Modes

    User manual 4. General information of display modes The letters in the display will be highlighted in each menu step or in any location you are. Input signal is too high > DANGER please degrase phono gain signal (54dB>34dB) or preampli- overlimit fier gain (20dB>12dB) If the unit is not in use or if...
  • Page 8 < line 2 < aux 2100E DO tl. AUX < phono 1 Menu for set up of < phono 2 aux input < line 1 (3,15 jack – unbalanced, < line 2 on front pael) < aux © clearaudio electronic GmbH, 2017/11...
  • Page 9 User manual 2100F DO tl.PHONO1/2 + EQ Display indicates that the < phono 1 “RIAA Equalization” is < phono 2 switched on. Only possible < line 1 in phono 1/2 mode. For < line 2 more information please < aux see “RIAA Equalization”.

  • Page 10: Safety Instructions

    Should service be necessary: service for all Clearaudio products should only be carried out by Clearaudio authorized service personnel. In case of any repair, the Clearaudio equipment needs to be send to your nearest authorized dea- ler or distributor. Only if your dealer or distributor cannot support you please contact Clearaudio...
  • Page 11 User manual 7. Technical specifications STATEMENT High End Phono Preamplifier Preamplifier PURE CLASS A: Inputs: 5 (4 x rear, 1 x front) - Phono 1 balanced XLR rear - Phono 2 unbalanced RCA Cinch rear - Line 1 balanced XLR rear - Line 2 unbalanced RCA Cinch rear - Aux unbalanced 3,15 Jack front Outputs: 2 back...

  • Page 12: Technical Specifications

    - 0.5 mV/1 kHz/+70 dB: < 0.03% < 0.015% (“A” weighted) - total gain +50 dB: <0.004% /1 kHz/Vout=10 V <0.0003% (“A” weighted) / 1 kHz/Vout=10 V IMD*: - 5 mV/1 kHz/+50 dB: < 0.01% <0.0035% (“A” weighted) © clearaudio electronic GmbH, 2017/11...
  • Page 13 Warranty: 5 years* * Provided that the warranty card is correctly completed and returned to Clearaudio within 14 days of purchase. Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice.

  • Page 14: Warranty Information

    /card back to Clearaudio, within two weeks after purchase. Only if the product is returned in its original packing Clearaudio can provide the warranty of 5 years. Otherwise Clearaudio provides the legal warranty of 2 years.
  • Page 15 ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá...
  • Page 16 (Änderungen und Irrtümer vorbehalten. Für Druckfehler keine Haftung. Lieferbar solange Vorrat reicht. - Technical specifications are subject to change or improvement without prior notice. Clearaudio accepts no liability for any misprints. Product availability as long as stock lasts.) 2017 © clearaudio electronic GmbH, 2017/11...
