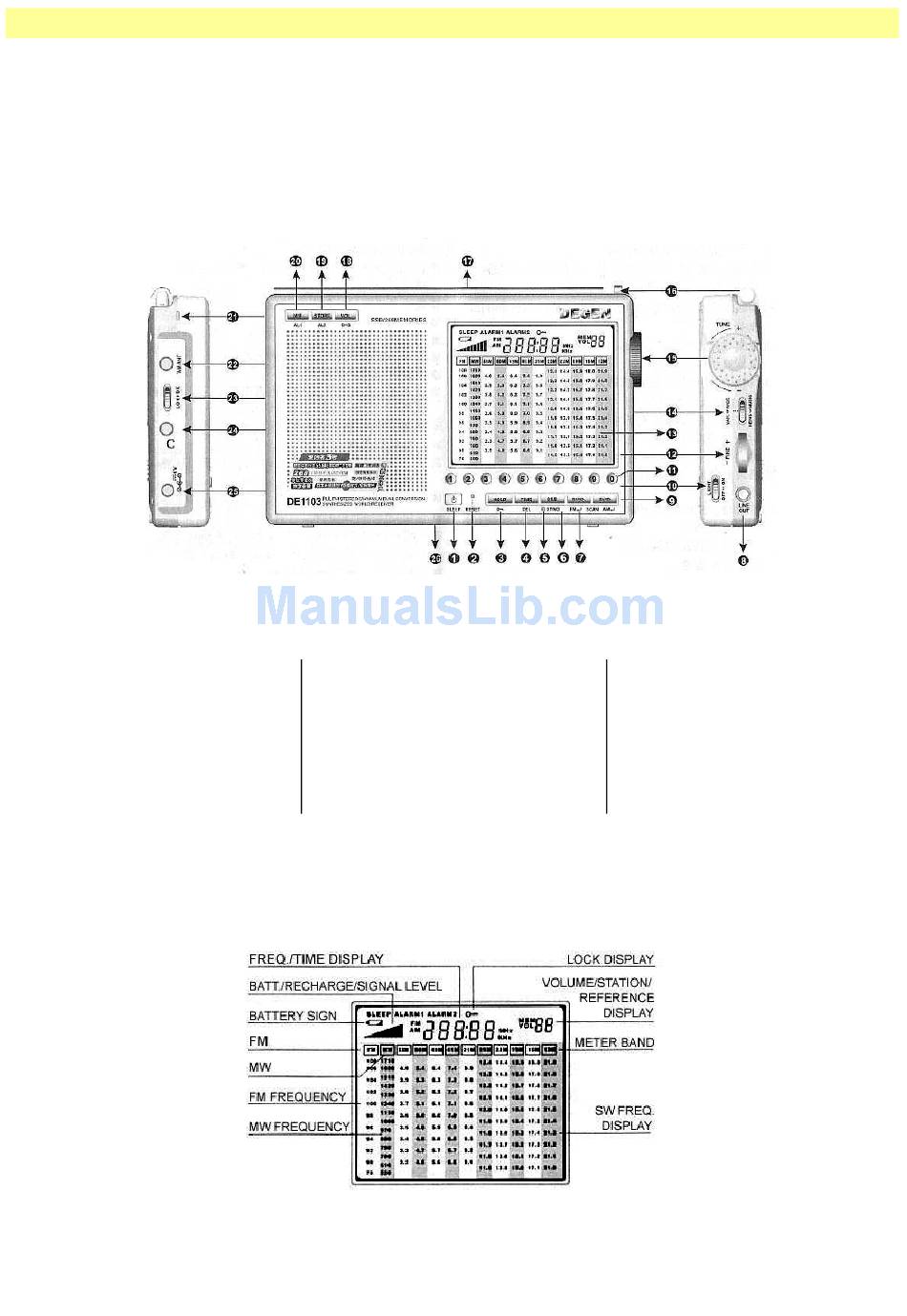

(1) Power/Sleep
(2) Reset
(3) Lock Key
(4) Time/Delete
(5) St./Mono/SSB LED
(6) Stereo/Mono/SSB
(7) FM Band/Station Search Backward
(8) Line Out
(9) FM Band/Station Search Forward
DEGEN DE1103
FM / MW / SW RECEIVER
FM / AM / SSB / CW MODES
OPERATING MANUAL
(10) Light Switch
(11) 0 .... 9 Keys
(12) SSB Fine Tune Knob
(13) Liquid Crystal Display
(14) News/Music, Narrow/Wide Switch
(15) Tuning (Functions) Knob
(16) Pull Out Whip Antenna
(17) Support (Back)
(18) Volume Control / Recharge Knob
DE1103 - page 1/6
(19) Alarm 2, Store Knob
(20) Alarm 1, Memory Selection Knob
(21) Hand Held Belt
(22) AM Antenna Socket
(23) Local / DX Switch
(24) Earphone Socket
(25) DC 6 V Input Socket
(26) Battery Compartment (Back)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DEGEN DE1103
Summary of Contents for DEGEN DE1103
- Page 1 (7) FM Band/Station Search Backward (16) Pull Out Whip Antenna (25) DC 6 V Input Socket (8) Line Out (17) Support (Back) (26) Battery Compartment (Back) (9) FM Band/Station Search Forward (18) Volume Control / Recharge Knob DE1103 - page 1/6...
- Page 2 TWO TYPES OF POWER SUPPLY - Please do not use any other AC adaptor with the DE1103 as this may damage the rechargeable function of the radio. BY BATTERY You can check the battery level when the radio is first turned on, one of the following ladder signs will display.
- Page 3 (15) to select the sleeping turn off time. 2. The radio will be turned on with the word “SLEEP” displayed You can set two alarms within 24 hours : Alarm 1 and Alarm 2. on the LCD panel. DE1103 - page 3/6...
- Page 4 When receiving stations in the AM and SW bands, please note 1. Turn on the radio, press the “M/F” button (20), the “MEM” sign the changes of the ladder style signal level indicator. will be displayed on the LCD panel. DE1103 - page 4/6...
- Page 5 NARROW / WIDE BANDWIDTH 1. Turn on the radio, tune to the station to be stored to the When listening to MW, SW and LW stations, using the memory presets. appropriate bandwidth could enhance reception results. DE1103 - page 5/6...
- Page 6 21000 – 21405 kHz (USB) RESET FUNCTION The IC inside the radio may be affected by outside interference, SPECIFICATIONS OF DEGEN DE1103 RADIO : resulting in the radio not operating properly. When this occurs, use a sharp and thin object to press the Reset Hole (2).
