USER'S MANUAL DE1107

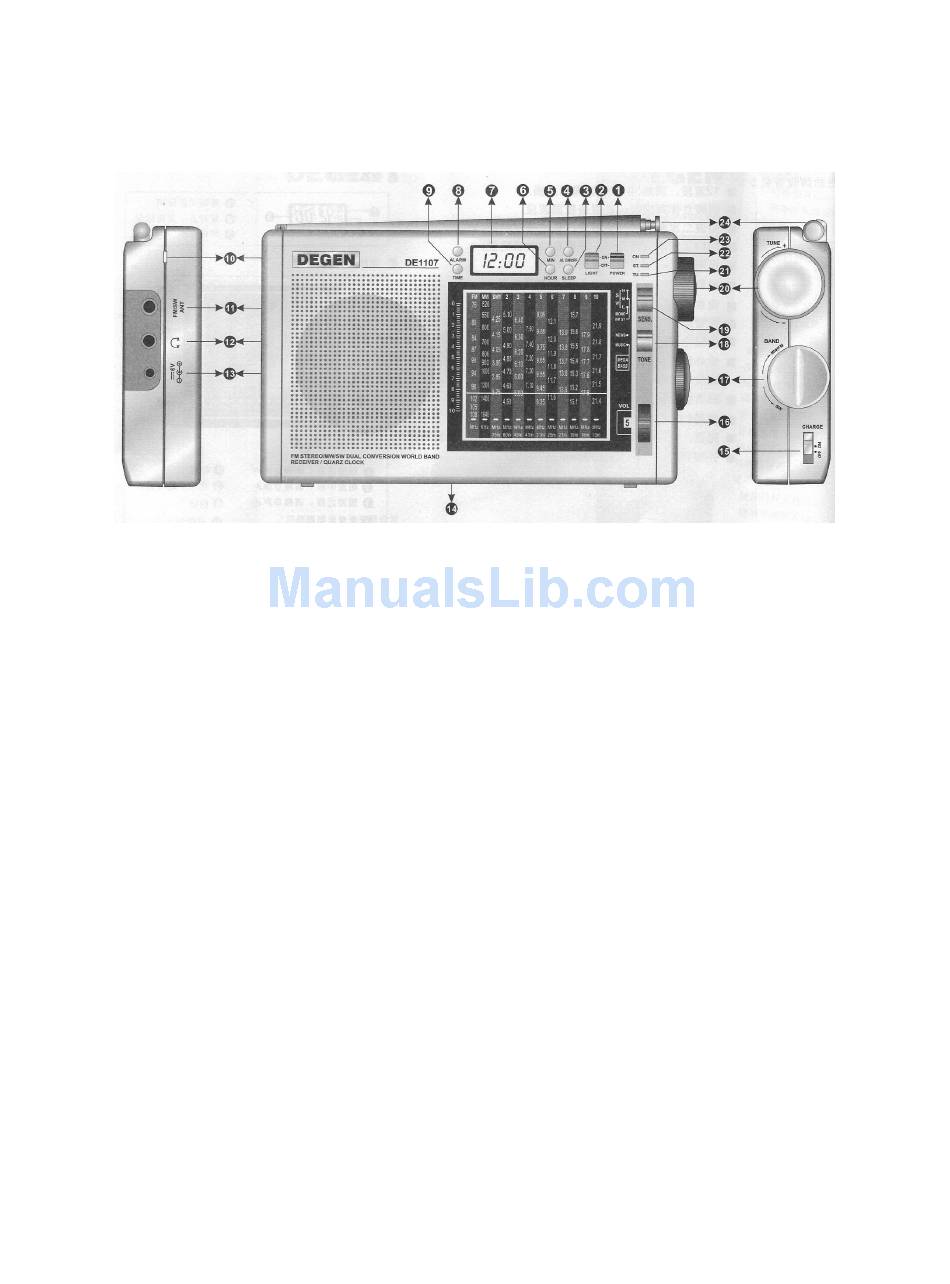

ILLUSTRATION
1.
Power
2.
Backlight
3.
Sleep
4.
AL On/Off
5.
Min
6.
Hour
7.
LCD Display
8.
Alarm
9. Time
10. Hand Strap
11. External Antenna Jack
12.Earphone Jack
BATTERY RECHARGE
1.
Connect the power adapter with the radio.(Buyer please aware that it is a 220V power adapter)
2.
Turn the Battery Recharge button to on position.
3.
It may take up to 16 hours to fully recharge the batteries.
13. External Power Jack
14. Battery Compartment
15. Battery Recharge
16. Volume
17. Band Switch
18. News/Music, Megabass
19. SW Sensitivity, Stereo/ Mono
20. Tuning Knob
21. Tuning Indicator
22. Stereo Indicator
23. Power Indicator
24. Telescopic Antenna
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DEGEN DE1107
Summary of Contents for DEGEN DE1107
- Page 1 USER’S MANUAL DE1107 ILLUSTRATION Power 13. External Power Jack Backlight 14. Battery Compartment Sleep 15. Battery Recharge AL On/Off 16. Volume 17. Band Switch Hour 18. News/Music, Megabass LCD Display 19. SW Sensitivity, Stereo/ Mono Alarm 20. Tuning Knob 9. Time 21.
- Page 2 TIME SETTING Time Display The unit takes 12 hour system. Time Set Press and hold the Time button. At the same time short press the Hour and Min buttons to adjust the time. POWER ON/OFF On/Off Turn the Power button to on position to switch on the radio. Turn the Power button to off position to switch off the radio.
- Page 3 TECHNICAL INDEX Frequency Range : FM 76-108 MHz AM 520 - 1640 KHz SW 3.75 – 21.90MHz Meter Band 75m: 3.75-4.25 MHz , 60m 4.5-5.1 MHz 49m: 5.90-6.40 MHz , 41m: 7.10-7.50 MHz 31m: 9.35-9.95 MHz , 25m: 11.600-12.10 MHz 22m: 13.50-13.90 MHz , 19m: 15.10-15.70 MHz 16m 17.50-17.90 MHz , 13m: 21.40-21.90 MHz Noise Limit Sensitivity...
