USER'S MANUAL DE1105

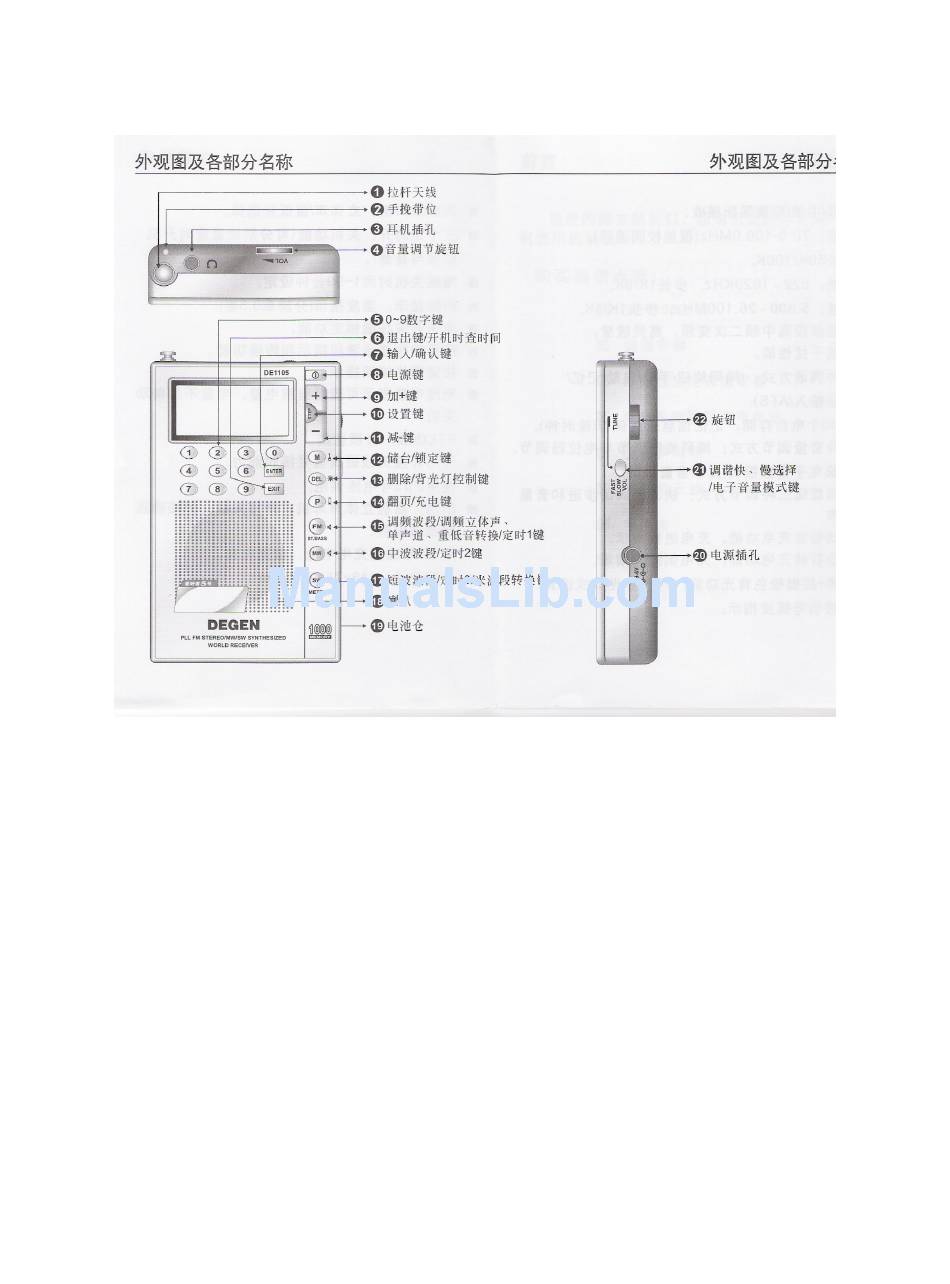

ILLUSTRATION
1.
Antenna
2.
Hand Strap
3.
Earphone Jack
4.
Volume Control
5.
0-9 Numeric Keypad
6.
Exit/Alarm Time Enquiry
7.
Exit/Confirm
8. Power
9. +
10. Step
11. -
12. Memory/Key Lock
13. Delete/Backlight
14. Page/Recharge
15. FM/Stereo/Mono/Bass/Timer1
16. AM/Timer 2
17. SW/Timer 3/Meter Band
18. Speaker
19. Battery Compartment
20. D.C. Jack
21. Fast/Slow/Volume
22. Tuning Knob

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE1105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEGEN DE1105

Summary of Contents for DEGEN DE1105

  • Page 1 USER’S MANUAL DE1105 ILLUSTRATION Antenna 12. Memory/Key Lock Hand Strap 13. Delete/Backlight Earphone Jack 14. Page/Recharge Volume Control 15. FM/Stereo/Mono/Bass/Timer1 0-9 Numeric Keypad 16. AM/Timer 2 Exit/Alarm Time Enquiry 17. SW/Timer 3/Meter Band Exit/Confirm 18. Speaker 8. Power 19. Battery Compartment 9.

  • Page 2: Battery Recharge

    BATTERY RECHARGE Connect the power adapter with the radio. Press the Recharge button, the battery icon will blink for 5 seconds. Auto Charge : The charging function will start automatically and the batteries are fully charged. Manual Charge : When the battery icon is blinking , you can press the no 1-9 to set the charging time in hours.

  • Page 3: Volume Control

    Press the Power button again to turn off the radio. Turn On Sleep Function (i)Under the off mode, press the Power button to turn on the radio, the radio will enter in the sleep mode of 99 minutes by default. You will see the sleep icon blinking. (ii)Under the on mode, long press the Exit button to turn on the sleep mode.

  • Page 4: Band Selection

    turning knob at the right side of the radio. Or long press the Vol button until the VOL message disappears. You can set the volume by the volume tuning knob located on the top of the radio. BAND SELECTION Press the FM , MW , SW button to switch among FM , AM or SW bands. METER BAND SELECTION Under the SW band, press the SW button again to switch between different meter bands.

  • Page 5: Memory Preset

    PAGE The radio can store 10 Pages (0-9) x 100 stations (00-99), total 1000 stations. Power on the radio. Short press “PAGE” button and you will see “P” icon blinking. Short press 0 to 9 to turn to any page. MEMORY PRESET Find the desired frequency with any search method.

  • Page 6: Alarm Setting

    Delete Whole Page Locate the desired page. Long press the DEL button. Press the DEL button again to confirm. ALARM SETTING Turn On Alarm Function Under the off mode, short press ENTER button three times. You can see the bell icon blinking. Press the numeric buttons to set the alarm time e.g.
  • Page 7 Meter Band 49m: 5.800-6.400 MHz , 41m: 6.900-7.400 MHz 31m: 9.100-9.990 MHz , 25m: 11.500-12.200 MHz 22m: 13.510-13.9000 MHz , 19m: 15.000-15.700 MHz 16m 17.260-18.085 MHz , 13m: 21.410-21.950 MHz 11m 25.610-26.100 MHz 3. Memory Presets (1000) Noise Limit Sensitivity FM <= 10uv AM <= 1mV/m SW <=20uV...
