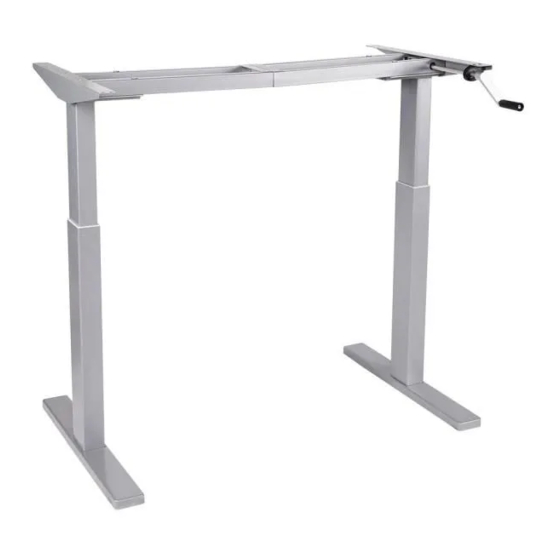

Flexispot H2S Installation Manual

Table of Contents

Download this manual

Enlarged version

·The packaging materials of this product could be dangerous to young children. Please keep all

plastic bags, screws, tools and other small or potentially hazardous materials away from young

children as they may present a choking risk.

·This Flexispot desk should not be used by children. To avoid potential danger, keep children and

people with cognitive impairments away from this height-adjustable desk, its control unit.

The manufacturer is not responsible for unintended use of this equipment.

·Before using this product, please read the instructions carefully and make sure you fully

understand all the product's functions and settings. If you have any questions, please contact us.

Website: www.flexispot.com

Warning

Tel: 1-855-421-2808

Item No. H2S

Installation Guide

Table of Contents

Need help?

Do you have a question about the H2S and is the answer not in the manual?

Page 1 ·This Flexispot desk should not be used by children. To avoid potential danger, keep children and people with cognitive impairments away from this height-adjustable desk, its control unit.
Page 2 Specifications Step 1 Turn the legs (2,3) upside down. Attach the feet (1) to the bottom of the legs using 8pcs M8x16mm Pitch Quantity bolts (F) and tighten with 5x5 hex key (A). Max. Weight Capacity 176 Ibs (80 kg) 28.3"-48.4"(720 - 1230mm) Adjustable Height Wide expand...
Page 3 Step 3 Step 5 Slightly loosen the adjustable nuts to adjust the length of the drive shaft (5). Insert the assembled Insert the crank shaft (8) into the right leg which has a shaft hole, using 2pcs bolts (D) and lock firmly drive shaft into the slots that located at the top of each leg.
Page 4 Step 6 Step 7 Evenly place the work surface onto the legs then attach it to the side brackets (6, 7) using Attach the crank handle holder (10) to the underside of the table top using 2 screws (H). Ensure screws (H).
