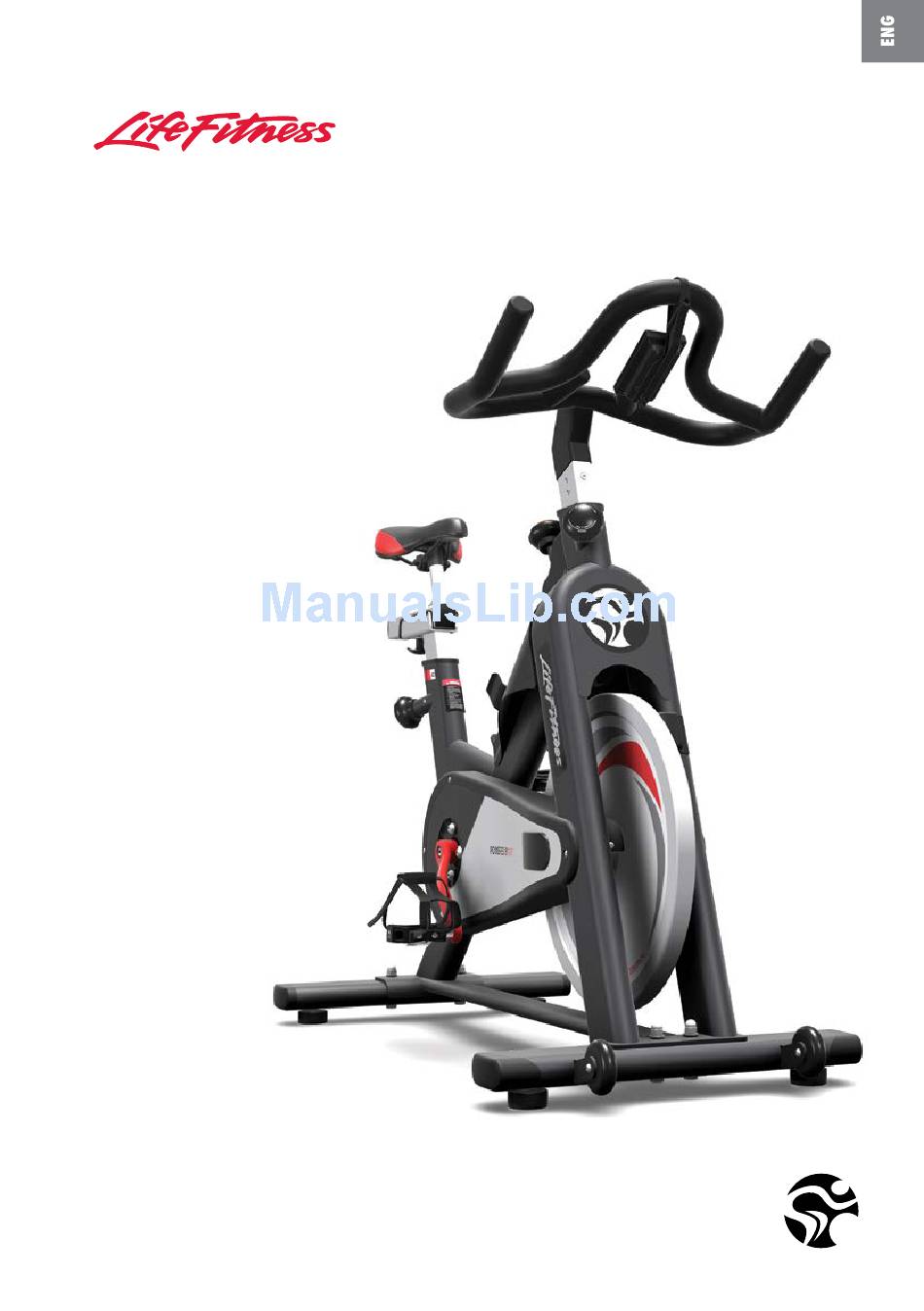

IC2
MODEL NO:IC-LFIC2B1-01
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
Version 1.1 2017 IC-LFIC2B1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
MANUFACTURED BY:
Indoor Cycling Group GmbH
Happurger Str. 86
90482 Nuremberg | Germany
info@indoorcycling.com
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50

Advertisement

loading
Need help?

Need help?

Do you have a question about the IC2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Life Fitness IC2

  • Page 1 MANUFACTURED BY: Indoor Cycling Group GmbH Happurger Str. 86 90482 Nuremberg | Germany info@indoorcycling.com www.indoorcycling.com Phone: +49(0)911 / 54 44 50 MODEL NO:IC-LFIC2B1-01 CAUTION! READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
  • Page 2: Table Of Contents

    P.21-22 TECHNICAL SPECIFICATIONS: The Life Fitness IC2 Bike is according to EN 957 a Class S product for professional and / or commercial use. Such training equipment is intended for the use in training areas of organizations such as fitness clubs or sport associations, where access and control is specially regulated by the person who has the legal responsibility.
  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS 1. It is the sole responsibility of the owner to with loose laces which could become caught ensure that all users of the indoor cycle are on the indoor cycle. informed and aware of all warnings 9. Before using the indoor cycle, make sure and precautions.
  • Page 4: Getting Started

    MAINTENANCE COVER LEVELLING FEET YOU WILL FIND THE PRODUCTION CODE ON THE LEFT SIDE OF THE LIFE FITNESS IC2 WITHIN THE LOWER RANGE OF THE FRAME. PLEASE REGISTER THESE IN SERVICING AND MAINTENANCE LISTS. Version 1.1 2017 IC-LFIC2B1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com...
  • Page 5: How To Assemble The Indoor Cycle

    HOW TO ASSEMBLE THE INDOOR CYCLE 2X 17MM 15MM 1X 13MM PEDAL WRENCH PEOPLE ASSURE THAT PLASTIC GASKET IS PLACED BETWEEN ASSURE THAT BLACK RUBBER WASHER IS PLACED STABILIZER AND FRAME. BETWEEN UPPER FRAME AND BOLT/WASHER. ASSURE THAT PLASTIC GASKET IS PLACED BETWEEN ASSURE THAT BLACK RUBBER WASHER IS PLACED STABILIZER AND FRAME.
  • Page 6 HOW TO ASSEMBLE THE INDOOR CYCLE 2X 17MM 15MM 1X 13MM PEDAL WRENCH PEOPLE STOP MARK WARNING! Make sure the seat is fixed properly in a LEVEL HORIZONTAL position and securely tigthend from both sides! 25NM Version 1.1 2017 IC-LFIC2B1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com...
  • Page 7 18NM STOP MARK WARNING! Pedal marked R installed on right crank (clockwise). Pedal marked L installed on left crank (counter-clockwise) Pedals must be fastened with significant strength to avoid loosening with use of the LIFE FITNESS IC2. 55NM STOP MARK...
  • Page 8: Initial Installation Checks

    (for example BRUNOX), and white lithium grease. 1. Make sure that the LIFE FITNESS IC2 is leveled. If the LIFE FITNESS IC2 rocks on the floor, turn the leveling feet underneath the front and/or rear stabilizer until the rocking motion is elimina ted.
  • Page 9 10. Wipe down bike frame with rag moistened with solvent free spray lubricant 11. Some parts of the LIFE FITNESS IC2 may become loose during shipment. Check crank arms, check all exposed screws, bolts, and nuts, and make sure that they are properly tightened.
  • Page 10: How To Adjust The Indoor Cycle

    The LIFE FITNESS IC2 can be adjusted for maximum comfort and exercise effectiveness. The instructions below describe one approach to adjusting the LIFE FITNESS IC2 to ensure optimal user comfort and ideal body positioning; you may choose to adjust the LIFE FITNESS IC2 cycle differently.
  • Page 11 (see the dotted line in image below). To adjust the horizontal posi- tion of the saddle, first dismount the LIFE FITNESS IC2. Next, loosen the rear adjustment knob, slide the saddle forward or...
  • Page 12 If your LIFE FITNESS IC2 is equipped with a regular 2 way handlebar. If the handlebar is too close to the saddle, your breathing may feel restricted; if the handlebar is too far from the saddle, you may experience back discomfort.
  • Page 13: Resistance Adjustment

    The LIFE FITNESS IC2 does not have a free moving flywheel (wheel); the pedals will continue to move together with the flywheel until the flywheel stops. Reducing speed in a controlled manner is required. To stop the flywheel immediately, push down the red break knob.
  • Page 14: Preventive Maintenance

    SOLVENT- AND ACID FREE LUBRICANT. DAILY MAINTENANCE: 1. Make sure that the LIFE FITNESS IC2 is leveled. If the LIFE FITNESS IC2 rocks on your floor, turn the levelling feet underneath the front or rear stabilizer until the rocking motion is eliminated (see HOW TO MOVE THE LIFE FITNESS IC2 on page 13).
  • Page 15 PREVENTIVE MAINTENANCE BI-WEEKLY MAINTENANCE: 1. The LIFE FITNESS IC2 should not be used if the emergency brake system is not working properly. While sitting on the saddle and pedalling, test the brake by pushing down the brake knob. The flywheel should come to a quick and complete stop.
  • Page 16 PREVENTIVE MAINTENANCE 3. To maintain the easy adjustability of the handlebar post, the handlebar post should be cleaned and lubricated. First, turn the front adjustment knob counter clockwise and slide the handlebar post out of the frame. Apply a small amount of lubricant spray to a lint-free cloth, and clean the handlebar post (A).
  • Page 17 (white lithium grease) to the thread on the brake rod. Then, turn the resistance knob counter-clockwise until it stops. 3. Some parts of the LIFE FITNESS IC2 may become loose as a result of repeated use. Check pedals, toe clips, and pedal straps, and make sure that they are properly tightened.
  • Page 18 PREVENTIVE MAINTENANCE 5. BELT DRIVE Important: A loose belt as well as an overtightened belt may cause injury of the rider or damage to the drive system. Checking belt tension: To check for a loose belt, sit on the saddle, place your feet on the pedals, move the pedals until the crank arms are horizontal.
  • Page 19 MAINTENANCE ACTIVITY REQUIRED SCHEDULE ACTIVITY ROTATION DETAILS FEET LEVELLING, DISINFECTION & CLEANING OF THE BIKE DAILY P 14 SERVICING BRAKE PADS, DETAILED CLEANING OF THE ENTIRE BIKE WEEKLY P 14 CHECK EMERGENCY BRAKE FUNCTION BI-WEEKLY P 15 CLEAN AND LUBRICATE SADDLE &...
  • Page 20: Spare Parts

    SPARE PARTS Due to revisions, spare part order no. and specifications may be subject to change. For further information please contact your local distributor or visit www.indoorcycling.com. 120-01-00015-02 SPORT SADDLE BLACK & RED INCL. SADDLE CLAMP 900-10-00003-01 LEVELING FEET, RUBBER 75° SHORE 150-01-00005-03 COMBI PEDAL SET, SPD COMPATIBLE...
  • Page 21 WARRANTY Indoor Cycling Group GmbH warrants that all new equipment will be free of manufacturing defects workmanship materials, becoming effective date original installation. Parts repaired or replaced under the terms of this warranty will be warrantedfor the remainder of the original warranty period only. Warranty vary region country.
  • Page 22 WARRANTY 10 YEARS WARRANTY: FRAME CONSTRUCTION AND WELDING 3 YEARS WARRANTY HANDLEBAR AND SADDLE ASSEMBLY, BRAKE SYSTEM (EXCLUDING BRAKE PAD), LEVER HANDLES AND KNOBS, CRANKS, BELT DRIVE SYSTEM, BOTTOM BRACKET ASSEMBLY, FLYWHEEL AND HUB ASSEMBLY, POWDER COATING OF FRAME PARTS. 2 YEARS WARRANTY : PEDALS, INSERT SLEEVES FOR HANDLE BAR AND SADDLE POST, LEVELING FEET.
  • Page 24 CAUTION. READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU BEGIN USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY. EMAIL: INFO@INDOORCYCLING.COM WEBSITE: WWW.INDOORCYCLING.COM © 2017 Indoor Cycling Group Manufactured by: Indoor Cycling Group®...

This manual is also suitable for:

Ic-lfic2b1-01
