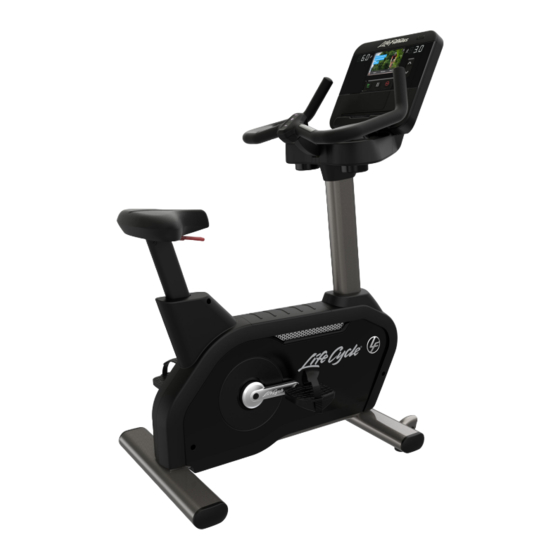

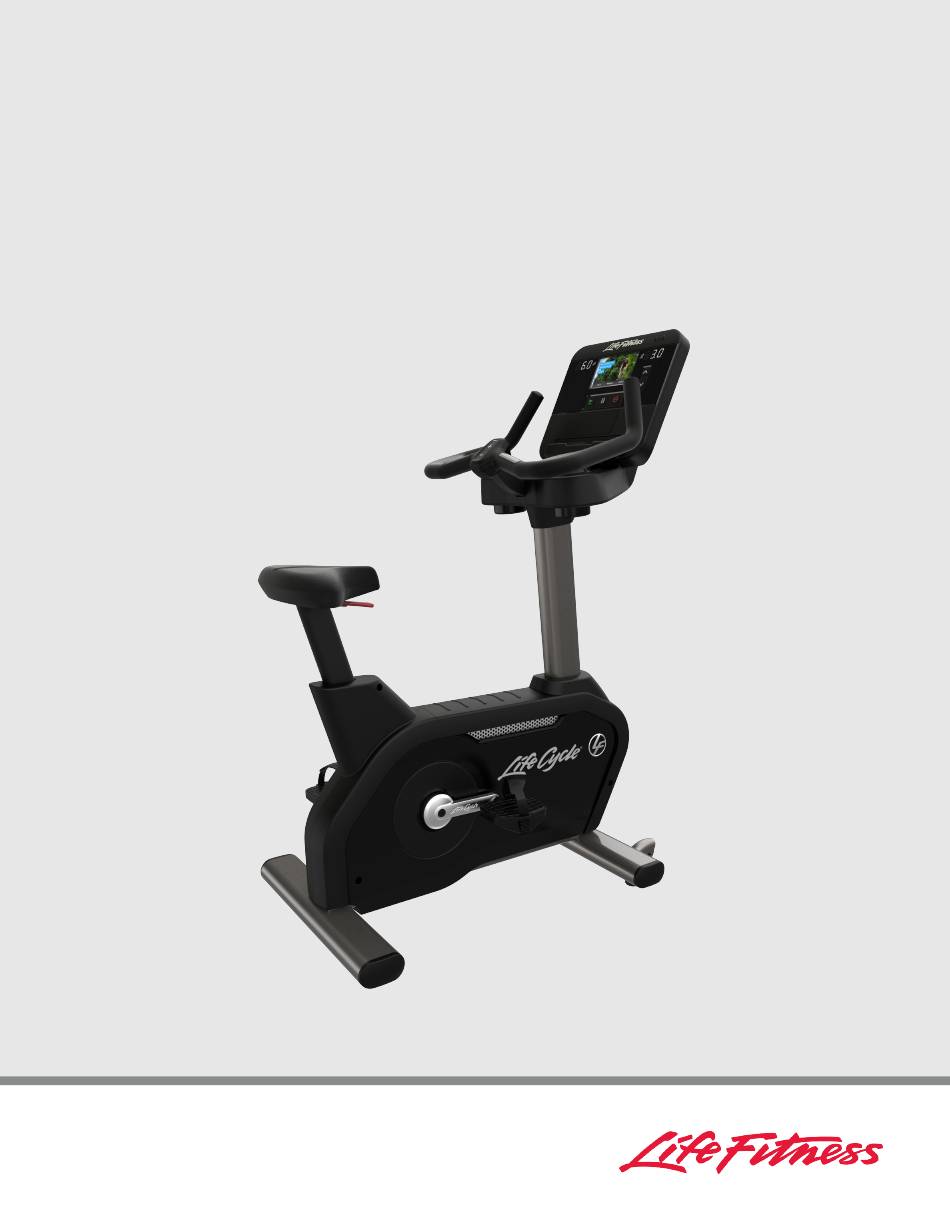

- Page 1 INTEGRITY UPRIGHT LIFECYCLE® EXERCISE BIKE INCSC, INCSX, INCDX, INCDSE, INCSSE, INCDST, INCST, CLUB SERIES +, INT-UB, PF-INT-UB, INT-UB-CS, INT-UB-B1, INT-UB-CS-B1 Assembly Instructions 1006865-0001 REV AD...
- Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
- Page 4 User and Service Documents Link https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the link above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
Polar Electro Inc. © Copyright 2020, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Getting Started
1. Getting Started Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life Fitness STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. - Page 7 • Read all warnings on each product prior to starting a workout. • If warnings are missing or damaged, please contact Customer Support Services immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before product is used. Life Fitness is not responsible for missing or damaged warning labels.
-
Page 8: Consignes De
AVERTISSEMENT : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45 ans ou plus,... - Page 9 • Si certaines étiquettes d’avertissement sont manquantes ou endommagées, contactez immédiatement le service d’assistance à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness n’est pas responsable des étiquettes manquantes ou endommagées.
-
Page 10: Where To Place And How To Stabilize The Upright Lifecycle
Where to Place and How to Stabilize the Upright Lifecycle Bike Read the entire manual before setting up the bike. After following all Safety Instructions, move the bike to the location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the bike is accessed from and 3 ft. (1 m) between the front or rear of the bike or any other objects. -
Page 11: Electrical Power Requirements
The Integrity X and Integrity C consoles are powered by a rechargeable 6-volt battery. Check the battery by pressing the GO button. The console should beep and light up. The console will display the Life Fitness logo. If a prompt doesn’t appear, mount the unit and begin pedaling. -
Page 12: Product Overview
2. Product Overview INCDX, Club Series +, INT-UB-CS, INT-UB-CS-B1, INT-UB (deluxe), INT-UB-B1 (deluxe) Item Description Console Accessory Tray Wheel Leg Leveler Seat Adjustment Lever Contact Heart Rate Sensors Cup Holder Resistance Up / Down Controls INCSX, INCSC, INT-UB, PF-INT-UB, INT-UB-B1 Item Description Console... -
Page 13: Incdse, Incdst, Club Series +, Int-Ub-Cs, Int-Ub-Cs-B1, Int-Ub (Deluxe), Int-Ub-B1 (Deluxe)
INCDSE, INCDST, Club Series +, INT-UB-CS, INT-UB-CS-B1, INT-UB (deluxe), INT-UB- B1 (deluxe) Item Description Console Accessory Tray Wheel Leg Leveler Seat Adjustment Lever Contact Heart Rate Sensors Cup Holder Resistance Up / Down Controls Connections The following connection receptacle is located at the front of the bike. Item Description Coaxial Connection... -
Page 14: How To Adjust
How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees. - Page 15 3. Service and Technical Data Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame / Seat Post Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust...
- Page 16 Troubleshooting the Polar ® Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes. accurate heart rate readings. Belt transmitter electrodes are not laying flat against the Ensure the belt transmitter electrodes are laying flat skin.
-
Page 17: Troubleshooting The Lifepulse
Troubleshooting the Lifepulse ™ Sensors If the heart rate reading is erratic or missing, do the following: • Dry the hands to prevent slipping. • Apply hands to the sensors that are set into the handlebars. • Grasp the sensors firmly. •... -
Page 18: Assembly: Incsc, Incsx, Incdx, Incdse
4. Assembly: INCSC, INCSX, INCDX, INCDSE, INCSSE, INCDST, INCST, CLUB SERIES + Hardware and Required Tools Hardware: Item Description Qty. M4.2 X 19 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW M8 HEX LOCK NUT Required Tools: •... -
Page 19: Attach Monocolumn To Base
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! NOTE: Route console cables through moncolumn. Item Description Qty. -
Page 20: Power
Attach Right Monocolumn Shroud to Left Monocolumn Shroud Secure the clips on the right monocolumn shroud into position on the left monocolumn shroud. NOTE: Push gasket down to shrouds. Item Description Qty. Monocolumn Shroud, Right Gasket (attached to monocolumn) Base to Console Cable Connections - Integrity X or Integrity C Item Description Console to Base Power... - Page 21 Attach Console Item Description Qty. Console M5 X 14 Phillips Pan Head Screw 1.5 Nm (1.1 ft. lbs.) Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket.
-
Page 22: Tools
5. Assembly: INT-UB, PF-INT-UB, INT-UB-CS Hardware and Required Tools Hardware: Item Description Qty. M4.2 X 19 PHILLIPS PAN HEAD SCREW GROMMET Required Tools: • Phillips screwdriver • 13 mm Socket wrench Page 20 of 29... -
Page 23: Before You Begin
Before You Begin The monocolumn with console attached is positioned with the back of the console laying on the bike seat. The seat is set to the lowest position. 1. Remove and discard the metal bracket that holds the monocolumn to the base. Use a 13mm socket to remove the two M8 screws, two plastic washers and two M8 hex lock nuts that secure the monocolumn to the bracket. -
Page 24: Monocolumn
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! Description Qty. Monocolumn M8 Hex Lock Nut Reuse the previously removed M8 Hex Lock Nuts 34 Nm (25.1 ft. - Page 25 Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket. 2. Use two screws and two grommets to attach rear console shroud assembly to the corresponding two holes on the console mounting bracket.
-
Page 26: Assembly: Int-Ub-B1, Int-Ub-Cs-B1
6. Assembly: INT-UB-B1, INT-UB-CS-B1 Hardware and Required Tools Hardware: Item Description Qty. M4.2 X 19 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW Required Tools: • Phillips screwdriver • 13 mm Socket wrench Page 24 of 29... -
Page 27: Before You Begin
Before You Begin The monocolumn is positioned with the back of the console support weldment laying on the bike seat. The seat is set to the lowest position. 1. Remove and discard the metal bracket that holds the monocolumn to the base. Use a 13mm socket to remove the two M8 screws, two plastic washers and two M8 hex lock nuts that secure the monocolumn to the bracket. -
Page 28: Attach Monocolumn To
Attach Monocolumn to Base CAUTION: Remove any protective covering / tape from the monocolumn and console support weldment prior to attaching to base! Failure to remove the protective covering can cause improper grounding! NOTE: Route console cables through moncolumn. Item Description Qty. -
Page 29: Base To Console Cable Connections - Integrity X Or Integrity C
Attach Right Monocolumn Shroud to Left Monocolumn Shroud Secure the clips on the right monocolumn shroud into position on the left monocolumn shroud. NOTE: Push gasket down to shrouds. Item Description Qty. Monocolumn Shroud, Right Gasket (attached to monocolumn) Base to Console Cable Connections - Integrity X or Integrity C Item Description Console to Base Power... -
Page 30: Attach Console
Attach Console Item Description Qty. Console M5 X 14 Phillips Pan Head Screw 1.5 Nm (1.1 ft. lbs.) Attach Rear Console Shroud Assembly 1. Slide the clips on top of the rear console shroud assembly into the corresponding slots on the console mounting bracket. -
Page 31: Specifications
7. Specifications Specifications Heavy / Commercial (INCSX, INCDX, INCSC, INCDSE, INCSSE, INCDST, INCST, INT- UB, PF-INT-UB, INT-UB-B1) EN ISO 20957 Class SA Designed Use Home (CLUB SERIES +, INT-UB-CS, INT-UB-CS-B1 ) EN ISO 20957 Class HA Maximum User Weight 400 lbs. / 181 kg 5 in.
