Isel CSD 405-IMC Wiring And Operation Manual

systro GmbH - a member of isel group

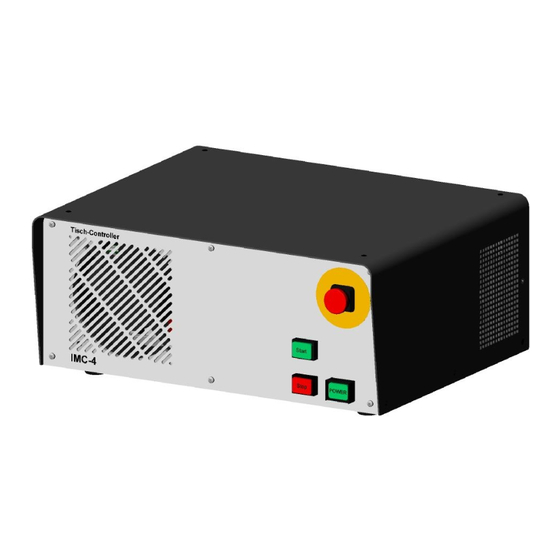

4-axes step motor controller
- Compact powerful unit to drive up to four 2-phase step motors
- CNC / DNC operation through internal microcontroller, flash data memory
- Interpolation modes: linear and circular, helix-interpolation optional
- Motor output 30V/2A per motor, step resolution 1600 steps/revolution
- 300VA power supply with emergency stop circuit according to EN 60204, emergency
stop switching element, Power button, cover switch-output
- 2 freely usable signal inputs (+24V active)
- 2 freely usable switching outputs (relay, +24 switching, 50mA)
- 2 AC outputs (1 relay output 5A, 1 solid-state relay 1.25A)
- Motor connection on the rear via 9-pin Sub-D socket plug
- Dimensions: w x h x d - 274 x 152 x 300mm
- Programmable through the software products: PAL-PC, PAL-PC 2.0 (Windows), ProNC
Wiring and Operation Manual
Document 383025 xxxx MD 01204
Sachsenweg 8
systro GmbH
D-36132 Eiterfeld Tel.: (0 66 72) 898 620
sys
Electronics for systems
CSD 405-IMC
E-Mail: sales@systro.de www.systro.de
