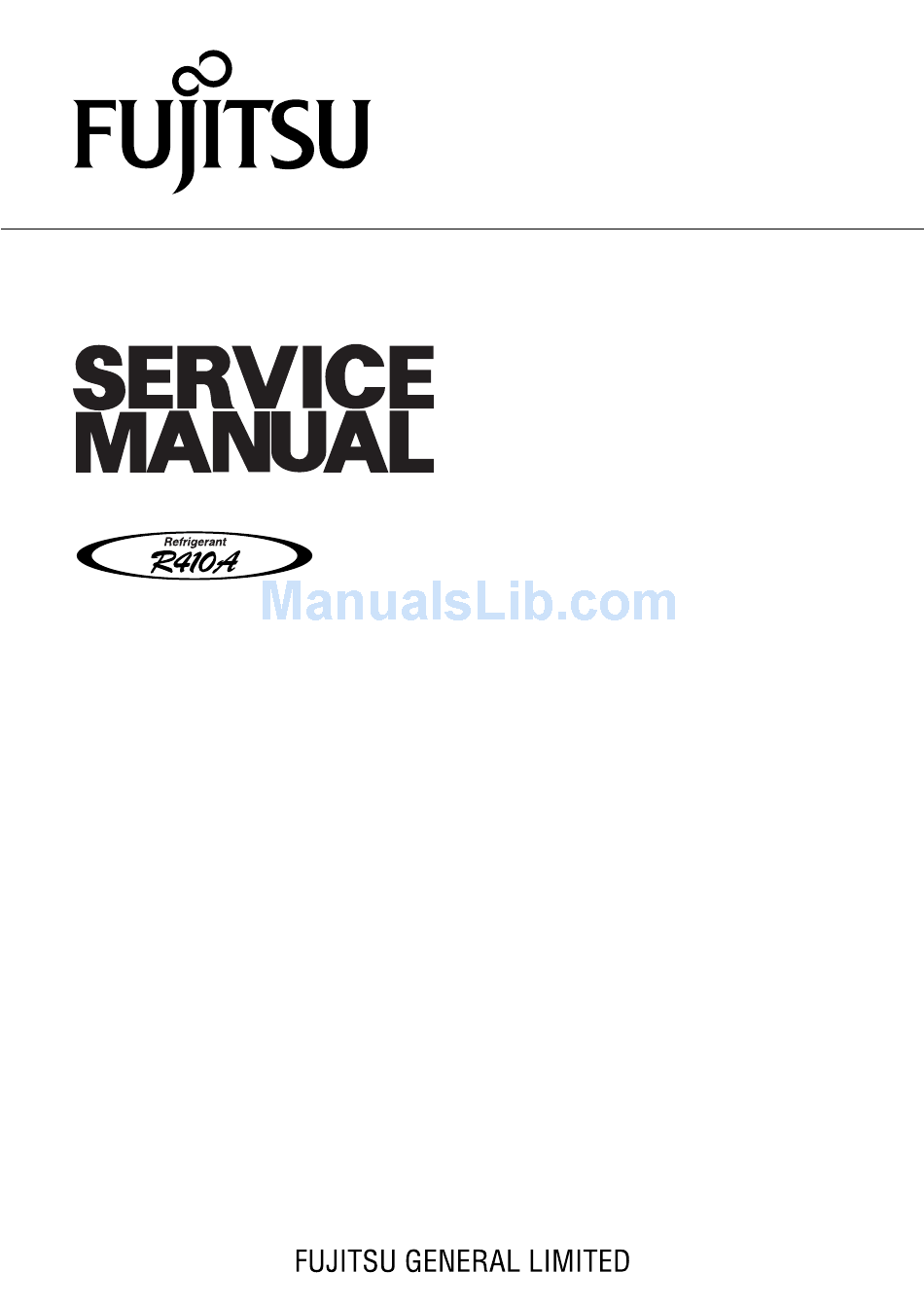

SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASY14FSACW AOY14FSAC ASY14USACW AOY14USAC CONTENTS SPECIFICATIONS ....DIMENSIONS ..... . -
Page 2: Specifications
SPECIFICATIONS TYPE COOL COOL & HEAT INDOOR UNIT ASY14FSACW ASY14USACW OUTDOOR UNIT AOY14FSAC AOY14USAC COOLING CAPACITY (kW) 4.10 - 4.15 3.95 - 4.00 HEATING CAPACITY (kW) ----- 4.85 - 4.95 ELECTRICAL DATA POWER SOURCE 220 - 240 FREQUENCY (Hz) COOLING 7.2 - 7.3... -
Page 3: Noise Level
NOISE LEVEL HI-SPEED (dB) 42 - 42 C 42 - 42 H 42 - 42 MED-SPEED (dB) 40 - 40 C 40 - 40 H 40 - 40 INDOOR UNIT LO-SPEED (dB) 39 - 39 C 39 - 39 H 34 - 34 SUPER QUIET (dB) 37 - 37... -
Page 4: Dimensions
DIMENSIONS INDOOR UNIT Unit : mm OUTDOOR UNIT 2005.02.17... -
Page 5: Circuit Diagram
REFRIGERANT SYSTEM DIAGRAM Models : ASY14FSACW / AOY14FSAC [ INDOOR UNIT ] Evaporator (Flare connection) (Flare connection) [ Connecting pipe ] Gas pipe (12.7 dia.) Liquid pipe (6.35 dia.) (Flare connection) (Flare connection) [ OUTDOOR UNIT ] 3-Way valve 2-Way valve... - Page 6 CIRCUIT DIAGRAM Models : ASY14FSACW / AOY14FSAC TEST 1 2 3 4 5 BLACK BLACK GRAY GRAY WHITE LOUVER Z WHITE DIFFUSER WHITE WHITE WHITE 1 2 3 4 5 BLUE 1 2 3 4 5 MOTOR 1 2 3 4 5...
- Page 7 Models : ASY14USACW / AOY14USAC TEST 1 2 3 4 5 BLACK BLACK GRAY GRAY WHITE WHITE LOUVER Z WHITE DIFFUSER WHITE 1 2 3 4 5 WHITE 1 2 3 4 5 BLUE MOTOR 1 2 3 4 5 1 2 3 4 5 GRAY (LOUVER U)
-
Page 8: Indoor Pcb Circuit Diagram
INDOOR PCB CIRCUIT DIAGRAM Model : ASY14FSACW TERMINAL BOARD BLUE POWER SOURCE 220 / 240V BROWN 50Hz GREEN / YELLOW THERMAL FUSE (102 ) CONTROLLER PCB ASSEMBLY (MAIN PCB) I C1 EZ-00001WSE-C (WHITE) (BLACK) uPD780024AGK-A25-8A8 I C9 <1/10W> RESET 600CMT... - Page 9 Model : ASY14USACW TERMINAL BOAD POWER SOURCE BLUE 220 / 240V BROWN 50Hz GREEN / YELLOW THERMAL FUSE (102 ) CONTROLLER PCB ASSEMBLY (MAIN PCB) EZ-0000SHSE-C I C1 (BLUE) (BLACK) (RED) (WHITE) uPD780024AGK-A25-8A8 I C9 10K <1/10W> 36 RESET 53405-0210 600CMT I C2 <F>...
-
Page 10: Error Contents
ERROR DISPLAY Troubleshooting check table Operation lamp : Red lamp Timer lamp : Green lamp Large division indication Small division indication Error contents LED indication Error contents LED indication Thermistor error Red lamp (2 times) Red lamp Thermistor error (room temp.) Green lamp Green lamp (2 times) -
Page 11: Disassembly Illustration
DISASSEMBLY ILLUSTRATION 2005.02.16... - Page 12 2005.02.16...
- Page 13 Model : AOY14FSAC 2005.02.17...
- Page 14 Model : AOY14USAC 2005.02.17...
-
Page 15: Parts List
PARTS LIST INDOOR UNIT Part number Ref. Description ASY14FSACW ASY14USACW Front Panel Assy 9306817176 9306817176 Flow Control Panel-Z 9306571016 9306571016 69-1 Louver-A 9306583019 9306583019 69-2 Louver-C 9309884014 9309884014 Filter 9306601034 9306601034 Casing Fixture 9307018008 9307018008 Link Plate 9306577018 9306577018 Link-A... -
Page 16: Part Number
OUTDOOR UNIT Part number Ref. Description AOY14FSAC AOY14USAC Emblem-Rear 9308468017 9308468017 Cabinet Front Panel, Plastic 9306386016 9306386016 Connector Cover (Cabinet) 9306119010 9306119010 Cabinet Rear Panel, Plastic 9306385019 9306385019 Base Assy, Painted 9306118068 9306118068 3-Way Valve Assy 9313060015 9313060015 2-Way Valve Assy 9313056018 9313056018 Condenser Assy... -
Page 17: Standard Accessories
STANDARD ACCESSORIES Part No. Name and Shape ASY14FSACW ASY14USACW Wall hook bracket 9306588014 9306588014 Remote control unit 9307979033 9307979040 Remote control holder case 9305642014 9305642014 Battery (penlight) 313187358304 313187358304 Cloth tape 9304232001 9304232001 Seal-A 9304536000 9304536000 Tapping screw (big) ( o 4 x 25) - Page 18 0311G2406...
