BW Technologies GasAlertClip Extreme 2 Year Instruction Sheet

GasAlert Clip Extreme
The GasAlertClip Extreme 2 or 3 year gas detector ("the detector") is a
personal safety device that warns when hazardous gas exceeds factory
set alarm setpoints. The detector stores and transmits gas alarm event
data. It is your responsibility to respond properly to the alarms.
Gases Detected
Oxygen (O ) Percent by volume (%)
2
Carbon monoxide (CO) Parts per million (ppm)
Hydrogen sulfide (H S) Parts per million (ppm)
2
Sulfur dioxide (SO ) Parts per million (ppm)
2
Safety Information—Read First
a
Warning: Substitution of components may impair Intrinsic Safety.
Warning: Bump test the O
sensor before each day's use to confirm its
2
ability to respond to gas by exposing the detector to a gas concentration
that exceeds the alarm setpoints. Manually verify that the audible and
visual alarms are activated.
Do not activate the detector after the date on the package.
This product is a gas detector, not a measurement device.
Perform a self-test each day prior to use.
Ensure the sensor grill is free of dirt, debris, and is not obstructed.
Calibrate and/or bump test the detector in a normal atmosphere
(20.9% O ) that is free of hazardous gas.
2
Periodically test the response of the sensor to gas by exposing the
detector to a target gas concentration that exceeds the low alarm
setpoint. Manually verify that the audible and visual alarms are
activated.
Periodically calibrate the GasAlertClip Extreme
oxygen (O ) detector.
2
Recycling
c e
This instrument contains a lithium battery. Do not mix with the solid
waste stream. Spent batteries should be disposed of by a qualified
recycler or hazardous materials handler.
About This Instruction Sheet
Title GasAlertClip Extreme Instruction Sheet
Description This Instruction Sheet is a reference for the
activation, operation and maintenance of
the GasAlertClip Extreme 2 or 3 year gas
detector.
Part Number 50104153-003
Release Date 05-2012
© 2012 BW TECHNOLOGIES BY HONEYWELL. ALL RIGHTS RESERVED.

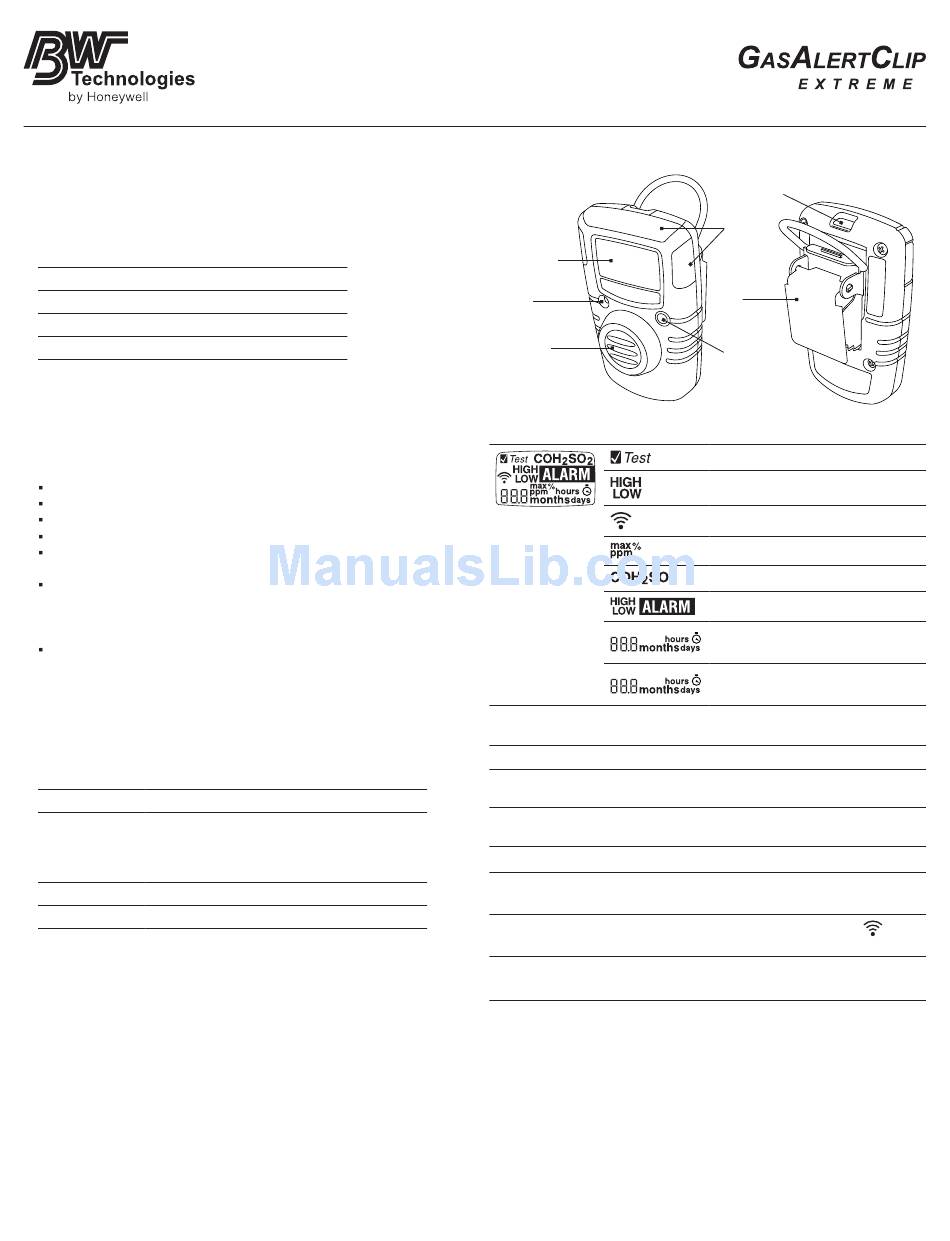

At a Glance

Liquid crystal
display(LCD)
Audible
alarm
Sensor and
sensor grill
LCD and Elements
C Pushbutton Functions
Activate detector Press and hold C for 5 seconds
Perform self-test Press and hold C for 1 second when LCD
displays Test
Press and hold C for 3 seconds
Calibrate oxygen
sensor
Perform Auto Zero Press and hold C for 3 seconds
View maximum gas Press C within 24 hours of a gas alarm
exposure
Transmit data
Press C when LCD displays Prn and
Display gas alarm Press C during normal operation
setpoints
2 O R 3 YEA R GAS D ETECTO R
50104153-003/05-2012
Infrared
download port
LED visual
alarms
Alligator
clip
Pushbutton
Self-Test status
High and low alarm setpoints
Data transmission
Maximum exposure in alarm
Gas type
Alarm condition
Detector life-remaining indicators
Months-days-hours since last
Maximum Gas Exposure alarm
