BW Technologies GasAlertClip Extreme O2 Instruction Sheet

BW TECHNOLOGIES
BY HONEYWELL
GasAlertClip Extreme
2 or 3 Year Gas Detector
Instruction Sheet

Introduction

The GasAlertClip Extreme gas detector ("the detector") is a personal safety
device that warns when hazardous gas exceeds factory set alarm setpoints.
The detector stores and transmits gas alarm event data. It is your
responsibility to respond properly to the alarms.
Gas Detected
Oxygen (O ) Percent by volume (%)
2
Carbon monoxide (CO) Parts per million (ppm)
Hydrogen sulfide (H S) Parts per million (ppm)
2
Sulfur dioxide (SO ) Parts per million (ppm)
2
a Safety Information - Read First
Warning: Substitution of components may impair Intrinsic Safety.
Warning: Bump test the O detector before each day's use to confirm its
2
ability to respond to gas by exposing the detector to a gas
concentration that exceeds the alarm setpoints. Manually verify
that the audible and visual alarms are activated.
Warning: To prevent ignition of flammable or combustible atmospheres,
disconnect power before servicing.
⇒
Do not activate the detector after the date on the package.
⇒
This product is a gas detector, not a measurement device.
⇒
Perform a self-test each day prior to use.
⇒
Ensure the sensor grill is free of dirt, debris, and is not obstructed.
⇒
Calibrate and bump test the detector in an ordinary location.
D2139/7 [English]
iERP: 124661
© BW Technologies 2006, all rights reserved.
a Safety Information - Read First
⇒ Periodically test the response of the sensor to gas by exposing the
detector to a target gas concentration that exceeds the low alarm setpoint.
Manually verify that the audible and visual alarms are activated.
⇒
Periodically calibrate the GasAlertClip Extreme O
This instrument contains a lithium battery. Do not mix with the solid
waste stream. Spent batteries should be disposed of by a qualified
recycler or hazardous materials handler.

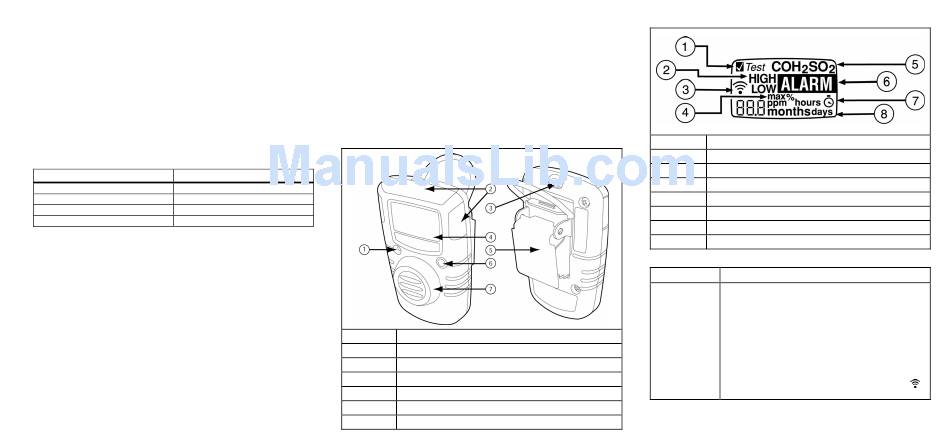

Parts of the GasAlertClip Extreme

Unit of Measure
1
2
3
4
5
6
7
.
2
ec
Note:
Audible alarm
Visual alarm
Infrared download port
Liquid crystal display (LCD)
Alligator clip
Start/test button
Sensor and sensor grill
Display Elements
1
Self-test status
2
High and low alarm setpoints
3 Data transmission
4
Maximum exposure in alarm
5
Gas type
2 / 6
Alarm condition
7 / 8
Detector life-remaining indicators
4 / 8
Months/hours/days since last maximum exposure
Pushbutton
Pushbutton Description
•
To activate the detector, press and hold C for
5 seconds.
•
Press C within 24 hours of a gas alarm to view
the maximum gas exposure.
• When Test displays, press and hold C for
approximately 1 second to activate the self-test.
C
•
To calibrate the O detector, press and hold C
2
for approximately 3 seconds.
•
To display the gas alarm setpoints, press C.
•
To transmit the data, press C when Prn and
display.
