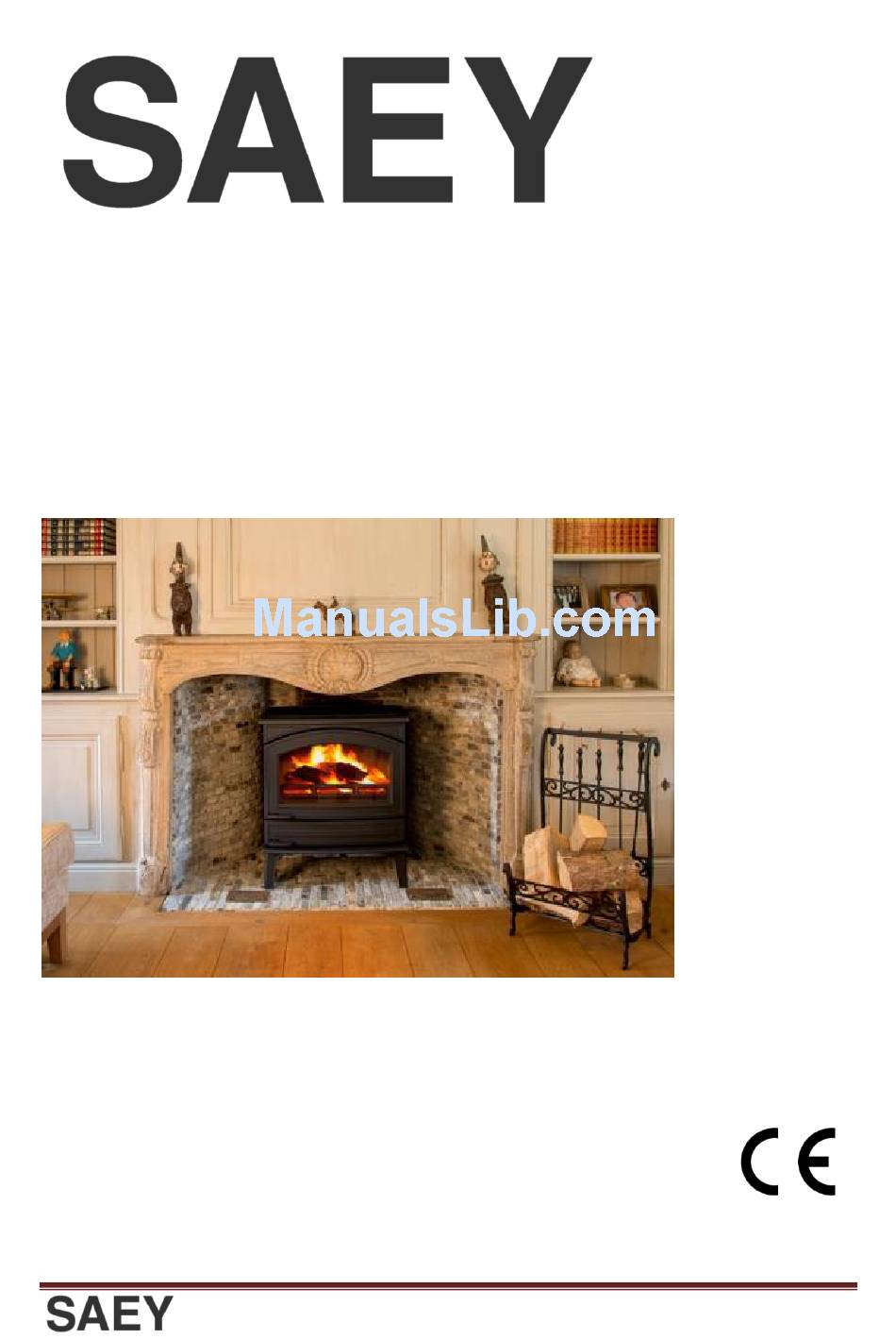

- Page 1 ENG – Installation and user’s guide Art. number : 10.01.001.01.02 EN 13240 Version 2017 Page 1...
- Page 2 Version 2017 Page 2...
-
Page 3: Table Of Contents
Index 1 Packaging and delivery content ......................4 2 Technical information ........................... 5 3 General information and security precautions ..................6 3.1 Risks of fire ............................ 6 3.2 Risks by badly sealed door ......................6 3.3 Risks of insufficient supply of air ....................7 3.4 Risks of using inappropriate fuel .................... -
Page 4: Packaging And Delivery Content
Important user information Congratulations! We sincerely thank you for choosing the Saey brand. With our Saey Duo you have chosen for a technical extraordinary and also modern looking stove. Apart from design, we greatly value an advanced burning technology and high quality. The Saey Duo has been built with the most modern technology available and meets the European DIN EN 13240. -
Page 5: Technical Information
2 Technical information Stove Saey Duo Carbon emission ( at 13% O2 ) Wood: ≤ 0.1 Coal: ≤ 0.8 Emission dust particles Mg/m³n Wood: ≤ 40 Mg/m³n Coal: ≤ 150 Efficiency Wood: ≥ 75 Coal: ≥ 65 Nominal thermal output Flue gas temperature °C... -
Page 6: General Information And Security Precautions
Use original spare parts only coming from the manufacturing company This stove is not equipped to be connected with other ones on the same conduct De Saey Duo was solely made to burn wood, briquettes and cool and only to work in a closed environment. -
Page 7: Risks Of Insufficient Supply Of Air
) 3.4 Risks of using inappropriate fuel The Saey Duo was made solely to burn wood, briquettes or coal. More information on using the right fuel can be find in chapter 5 3.5 Risks of shutting down the air supply As long as the flames look yellow / orange the fresh air supply may never be disconnected. -
Page 8: Installation Guidelines
Before taking your stove in use again ask an expert to check your stove and chimney first This expert must also examine the cause for the chimney fire and solve the problem HINT! A stove makes that tar residues remain behind in your chimney after having burnt. When you heat up your stove 10 minutes each day at maximal power, these residues will be burnt, which will result in minimizing the risk for chimney fire. - Page 9 Improve the density of the chimney Connecting the stove on the chimney The Saey Duo has a rear connection and can be mounted immediately on the chimney. It is important that all of these parts are sealed air tight. The diameter of the exhaust pipes must correspond to the 150 mm exit diameter of the stove.
- Page 10 When the air supply comes from the same room as of the stove, make sure the room is vented sufficiently. If not the case, it may result in incomplete combustion and exhaust fumes combing back from the chimney. Extra air can always be supplied by installing next to the stove an air vent going to the outside ( min.
- Page 11 Safety distances around the stove to be respected Around the stove, safety distances to inflammable objects, should be respected. These are clearly minimum distances. Respect them where possible. The stove may never be put on inflammable materials or surfaces. Always make sure that under the stove a fire-free environment is created, such as a heat-resistant floorplate.
-
Page 12: User's Guide
Advised and authorized fuel Only use wood of clean, untreated, natural, chopped and dry wood or briquettes in the prescribed length and quantity The Saey Duo allows tob urn wood, briquettes and coal. Ideal features for the Saey Duo: Maximum length of logs:... -
Page 13: First Use
Optimal handling with wood and briquettes Only dry wood burns efficiently and with low emission. The ideal fire wood is : Natural : Don’t use painted or impregnated wood, nor glued woord or multiplex. Also avoid pressed wood, which may contain cortex. All plastics and chemical components can be very toxic when burning and may endanger the environment, as well as poluting or damaging certain parts of your stove and chimney. -
Page 14: General Controls
5.3 General controls 1) Door 2) Door handle 3) Ash tray Make sure that the ash tray is well sealed when burning, or unwanted air could enter the stove. Only open it to remove the ashes. Use a heat-resistant glove to do this. 4) Ash tray handle asladedeur 5) Filling door ( always on the right side ) 6) Filling door lock... - Page 15 It works with different positions. IMPORTANT! The Saey DUO is equipped with only one single lever to control the incoming air for both coal as wood burning versions. It can be moved from the left to the right in which the middle position is point zero.
- Page 16 Also the control handle can become really hot. Please use heat-resistant gloves! Thermal - Bimetal air control The Saey Duo is equipped with a bimetal air control mounted on the back of the stove. This bimetal controls the amount of combustion air needed, depending on the amount of heat needed in the room.
-
Page 17: Use Of Wood
5.4 Use of wood Before starting to burn wood, please remove the bunker (1) by opening the filling cover on top and removing the bunker. Open the filling door on the side and insert the baffle plate (2) into the stove. Install it in the right position at the back and close the filling cover again. - Page 18 To refill the stove with wood, please re-open the air control lever to the right. You may refill wood through the filling door on the side, as long as there are no more flames visible. Always open the door in a gentle manner. If necessary you can keep the filling door open for a little while untill the flames flare up.
-
Page 19: Use Of Coal
5.5 Use of Coal When you want to use the Saey Duo on coal you should mount a coal bunker (1) as shown on the figure. Do this by opening the filling cover. Making some fire Burning on coal requires to start with some wood kindling, which means that we should first start to control the combustion air for wood. - Page 20 When lighting the fire, leave the door a little open for a few minutes. When you have a good flame, firmly close the door Let the fire burn untill all wood is burnt and changes in really glowing fuel. Now, open the filling cover with the handle and fill the coal bunker with approximatley 1 kg of coal and reclose the cover afterwards.
- Page 21 After you have stopped refilling, it is for the best to place the air control lever back in the outer left position and to open the ash tray for a few minutes. Please remember to close it back again. A full load of carbon allows you to heat for 4-5 hours, as long as the installation of the stove and chimney was made properly.
-
Page 22: Maintenance
6 Maintenance In order to keep the life expectancy of your stove as high as possible, we advise you to do a yearly check-up and maintenance. When it is frequently used, it is advisable to do little cleaning chores on frequent basis, such as emptying the ash tray / grill and cleaning the window. - Page 23 The next step is removing de stones on both sides (3). Lift it a little and pull the lower side of the stone inwards the stove. Then remove it. Now you see the fire basket, which consists of 2 parts. Start by removing first the left part (4) and continue with the right (5).
- Page 24 ( for ashes ) to remove all remaining ash residue. Cleaning the window The Saey duo has an auto-cleaning system that allows dirty windows to be postponed as long as possible. Yet, there are different reasons that will help the window to get dirty much quicker, and that are inevitable ( humid wood, bad burning, …...
-
Page 25: Malfunctions: Why They Occur And How To Solve Them
7 Malfunctions: why they occur and how to solve them Storing Oorzaak Oplossing The fires burns really bad The wood is too wet wood Humidity max. 20% Wrong fuel Only suitable wood Respect the right quantity of wood Chimney draught is too weak Check the density of the exhaust (min 12 Pa) pipe... -
Page 26: Spare Parts
8 Spare parts Only work with genuine parts in order not to lose the warranty on your stove. These parts can always be obtained at your local installer Saey Duo Artikelnummer Handle (complete) 1005-04111 Clinch filling door ( complete ) -
Page 27: Warranty
When not respecting this manual, all waranties will be rejected. All fundamental changes to the stove are not allowed. 10 Serial number The serial number can be found on the name tag at the bag of your Saey Duo stove Version 2017 Page 27... - Page 28 In case of problems please contact your local dealer Unifire Kortrijksesteenweg 1266 B-9051 Sint-Denijs-Westrem tel: 055 30 35 60 – fax 055 30 35 41 www.Saey-fires.com Version 2017 Page 28...
