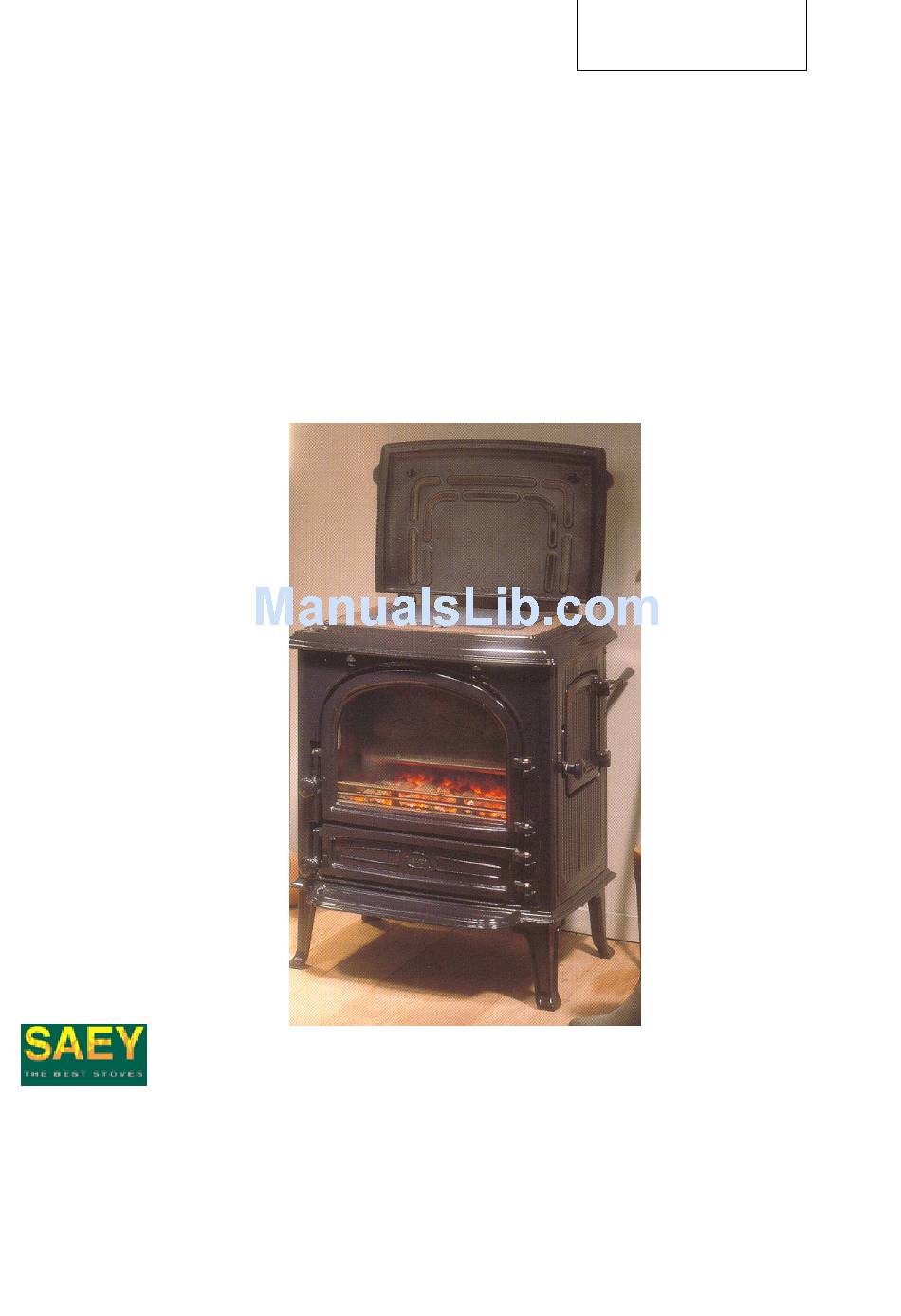

Page 1: Operating Instructions

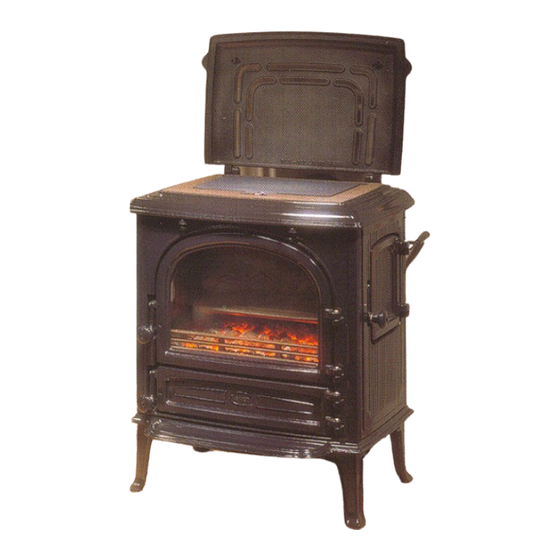

Documentation addressed SAEY nv., Industrielaan 4, to the user and installer 8501 Kortrijk-Heule (Belgium) 06/2000 tel. (56)36.14.64 - fax (56) 36.15.10 OPERATING INSTRUCTIONS SAEY 94 (TOP) COAL / MULTIFUEL 478.0294.XX Saey 94 coal 478.0394.XX Saey 94 TOP coal SAEY 94 MULTI-FUEL... - Page 2 Dimensions Height of standard model..............74 cm Height of TOP model................77 cm Height with open lid..............110 cm Width ..................64,5 cm Depth ....................53 cm Diameter of the outlet duct .............. 150 mm Distance from ground to bottom part of the outlet duct ......
- Page 3 - The smoke duct must be securely attached to the connector. 4. SUITABLE FUELS The SAEY 94 stove makes use of the following fuels: * COAL : Anthracite granules 6/12, 12/22, 20/30 * WOOD : Logs with sticky bark, e.g.
- Page 4 5. FOR THE FIRST KINDLING When used for the first time, the stove must be dried out first. For this purpose, use a little fuel to keep the fire burning for one hour. When burning wood: Air slider R + L (at the front, above the glass panel) slide to the outside (open position) When burning coal: Air slider R + L (at the front, above the glass panel) slide to the inside (closed position) When the air sliders are open, the glass is 'washed' by an air current that glides over the window.
- Page 5 It is advisable to set the thermostat to a lower position after about half an hour. This will ensure that combustion takes place correctly. The setting of the thermostat depends on the heat level required, and must be determined individually. The heat capacity is also determined by other factors : the local conditions, the condition of the building and the chimney.
- Page 6 * danger of asphyxiation Wood provides intense combustion of short duration. Sustained combustion is only achieved through regular top-ups, which means: only when the wood has almost been burnt up and the degassing process completed - high flames are reduced to small, low flames and wood is converted into glowing embers - can the emission of heat be slowed down by closing the air slider above the door with the glass panel and the one of the ash pan.
- Page 7 THE MANUFACTURER DOES NOT GUARANTEE Parts that are subject to wear and tear, and damage to and defects in the appliances or their parts, caused by: Chemical or physical influences from outside with regard to transport, storage, incorrect installation and use of appliance (e.g.
- Page 8 0094-161 inner rear wall A 14/85 poker rod 0094-170 right fire basket A 02/86 thermostat LIST OF SPARE PARTS FOR SAEY 94 TOP COAL 0094-012 floor 0094-180 left fire basket 0094-020 top coal plate 0092-015 foot 0094-027 front wall 0094-030 front wall...
