SAEY Home & Garden plc.
Industrielaan 4
8501 Kortrijk-Heule (Belgium)
tel. (056) 36.14.55 - fax (056) 36.15.10

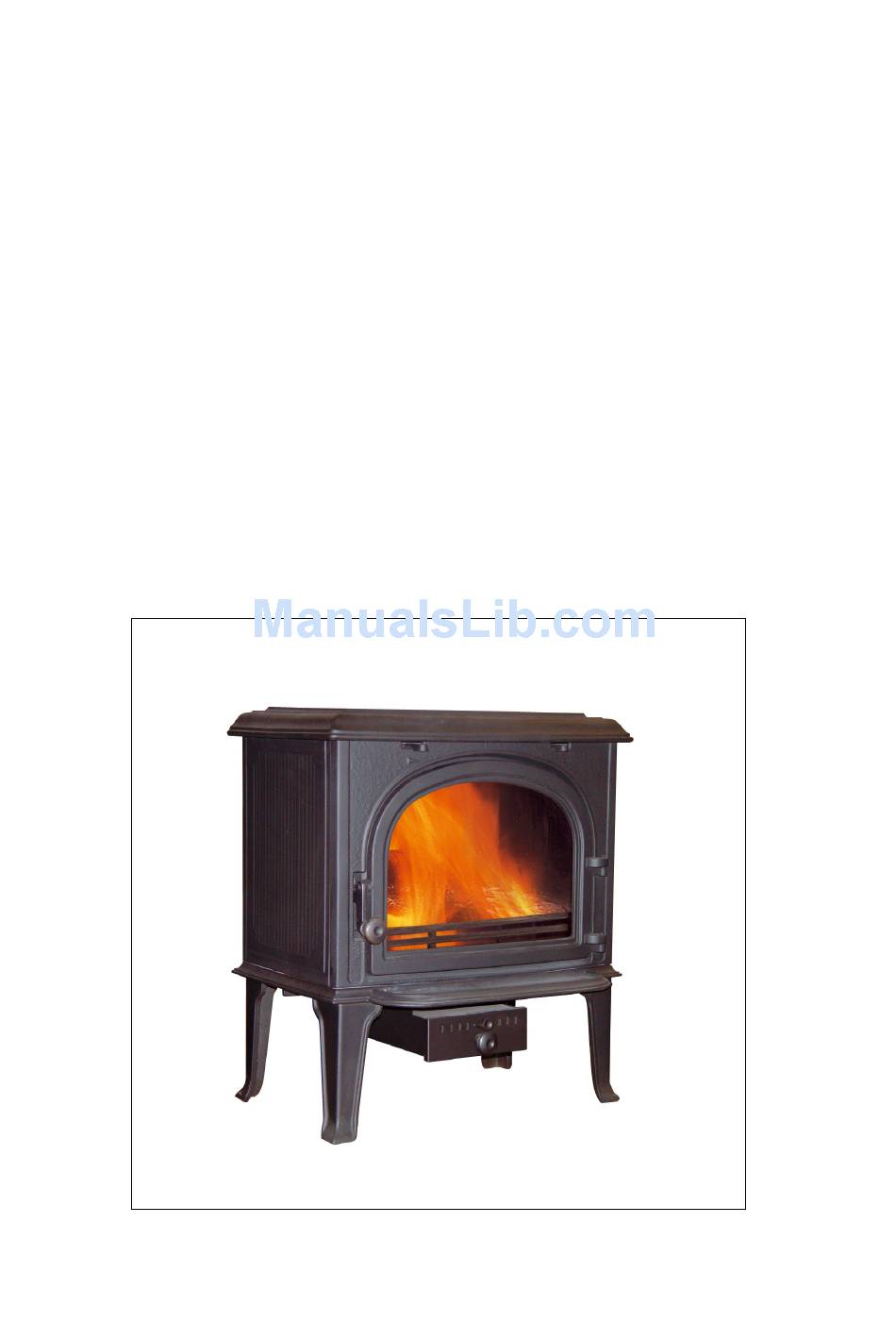

OPERATING INSTRUCTIONS
477.0220.000
477.0220.280
477.2520.000
477.2520.280

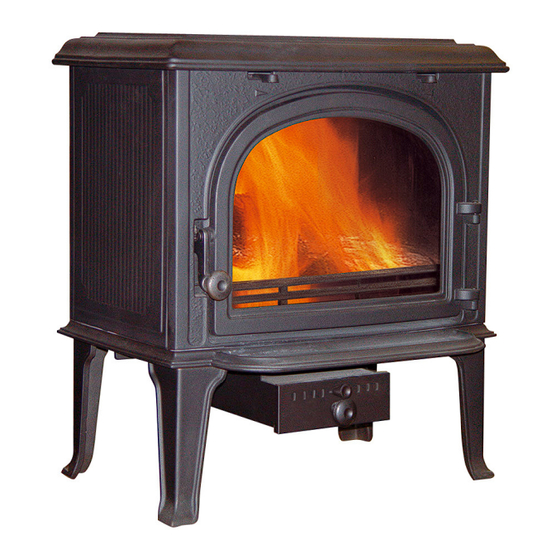

SAEY 200 & 200 + Anthracite
SAEY 200 + Glossy dark blue
SAEY 200 + CUCINA Anthracite
SAEY 200 + CUCINA Glossy dark blue
Documentation addressed to
the user and installer
e-mail
e-mail
Advertisement
Table of Contents
Related Manuals for Saey 200+ series
Summary of Contents for Saey 200+ series
- Page 1 8501 Kortrijk-Heule (Belgium) tel. (056) 36.14.55 - fax (056) 36.15.10 OPERATING INSTRUCTIONS 477.0220.000 SAEY 200 & 200 + Anthracite 477.0220.280 SAEY 200 + Glossy dark blue e-mail 477.2520.000 SAEY 200 + CUCINA Anthracite 477.2520.280 SAEY 200 + CUCINA Glossy dark blue e-mail...
-
Page 2: Important Warnings
Dimensions Height ..................… 67,5 cm Width ................…. Depth ..................… 52 Diameter of the outlet duct …………………………………….. 150 mm Distance from ground to bottom part of the outlet duct………… 45,6 cm 1. IMPORTANT WARNINGS WARNING! - The user of a stove must read the manual attentively before using the appliance for the first time. -
Page 3: Connecting The Stove To The Chimney
False air results in a weaker chimney draught. If the chimney draught is too strong, the installation of a draught regulator is recommended. Saey 200 + : Top vent Normally the discharge of fumes takes place at the back. Another option is to install the smoke duct at... - Page 4 - The chimney may not conduct any false air. Ensure that the chimney control valves as well as the cleaning openings in the cellar are closed. - The smoke duct must be securely attached to the connector. Saey 200 + cucina The discharge of fumes takes place at the back.
-
Page 5: Suitable Fuels
4. SUITABLE FUELS The SAEY 200 + stove makes use of the following fuels: * WOOD : Logs with sticky bark, e.g. cleaved logs with a length of 45 cm. The wood should be stored for about two years, and should have a maximum residual humidity level of 20 %. - Page 6 6. PRECAUTIONS A stove gets hot, especially the covering plate, the casing and the glass panel! Install your stove in a safe place in order to prevent playing children from touching it. Even if all the safety regulations are observed, there is still a risk of accidents occurring.
- Page 7 Method The burning of wood is accompanied by high flames and heavy smoke production. Wood must be burnt up rapidly and with a constant oxygen supply. The combustion process may not be slowed down under any circumstances. Negative consequences could be: - smouldering fire, condensation and tar discharge - excessive production of soot - inconvenience caused by smoke (emission of harmful substances)
- Page 8 This improves the durability of your stove. 11. INSTRUCTIONS With regard to the Saey 200 + cucina, you may only place kettles, pans, etc. on the polished cooking plate after the stove has been used for a month. No water may be spilled on the hot plates, to prevent cracks from forming.
- Page 9 12. GUARANTEE THE MANUFACTURER GUARANTEES impeccable quality and processing of the raw materials according to the stated requirements assembled by an expert The guarantees a. and b. provide for free replacement to the appliance to parts declared unfit for use. Such parts are only replaced free of charge when it can be proven that there are flaws in the raw materials or in the workmanship.
- Page 10 Maximum stacking height of logs Detail cucina upper plate (Saey 200 + cucina ) Secondary air conditioning inside : closed outside : open 040123...
