Philips FC8434 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- Colour: Cherry Red
- Electronically controlled motor speed
- Built-in cord winder
- Dustbag-full indicator in dust cover
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Maximum air displacement
- Maximum vacuum water column : 270 cm
- Power consumption (IEC)
- Dust storage capacity
- Cord length (depends on version) : 6 m
- Filter system
- Dimensions of cleaner
- Dimensions of packaging
- Net weight
- Gross weight
- Noise
OPTIONAL (accessories)
- FC8021 S-paper dustbags
- FC8032 Exhaust AFS micro filter
- HR6997 Sydney cotton dustbag
Published by Philips Domestic Appliances and Personal Care
06/07
City Line Melbourne
: 36 l/sec.
: 1600 W
: 2 l
: 5 filters
: 382 x 292 x 218 mm
: 510 x 305 x 330 mm
: 4.5 Kg
: 8,0 Kg
: 80 dB
8838 021 00000
4822 015 70056
8836 997 01010
Printed in the Netherlands

Vacuum cleaner

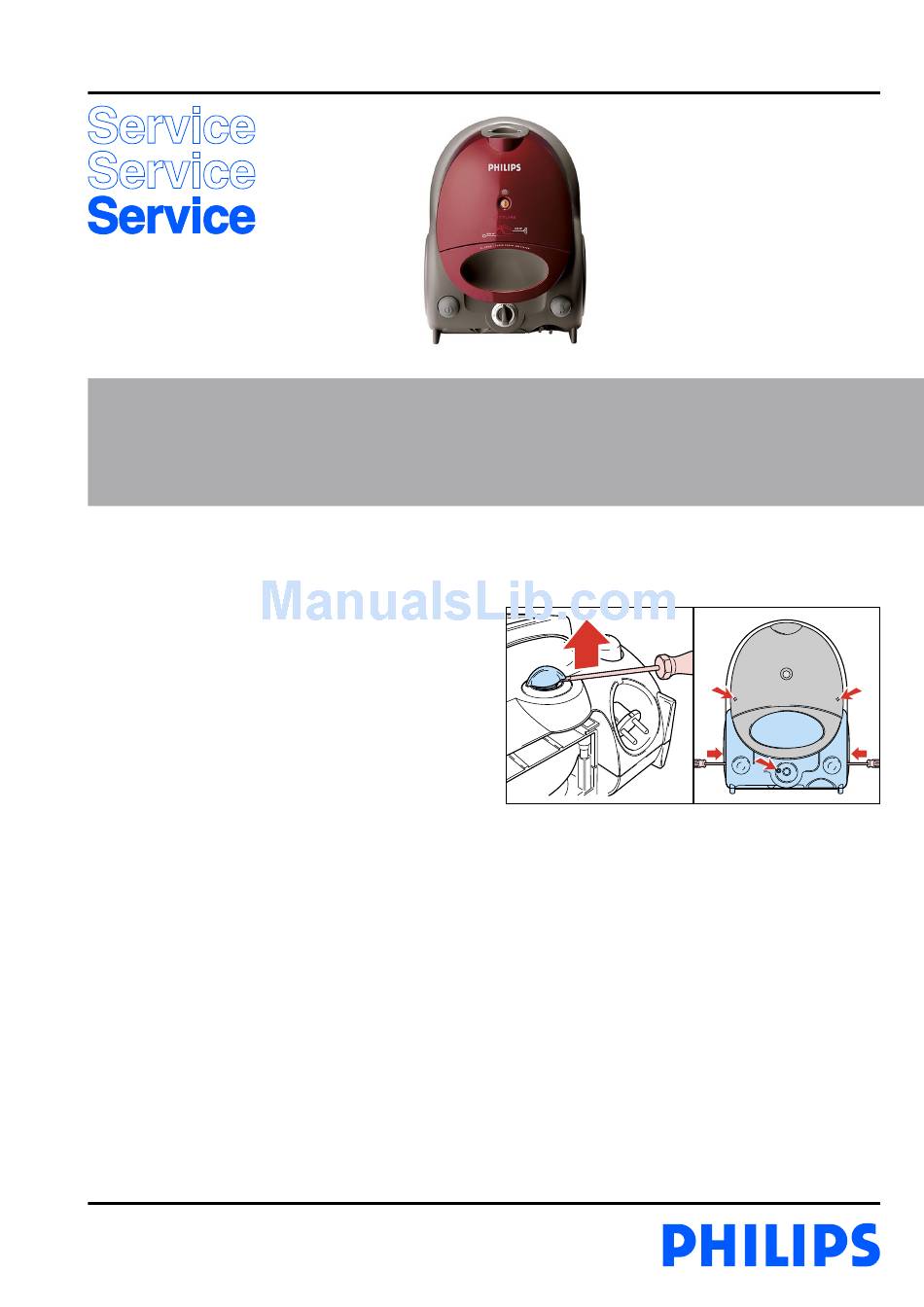

DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- First lift and remove the knob and printed knob base and
then loosen mounting screws A.
- Lift the motor housing (item 26) out of the lower housing
and take out the cord winder unit.
- To disassemble the cord winder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).
© Copyright reserved
FC8434
A A
A
Subject to modification
