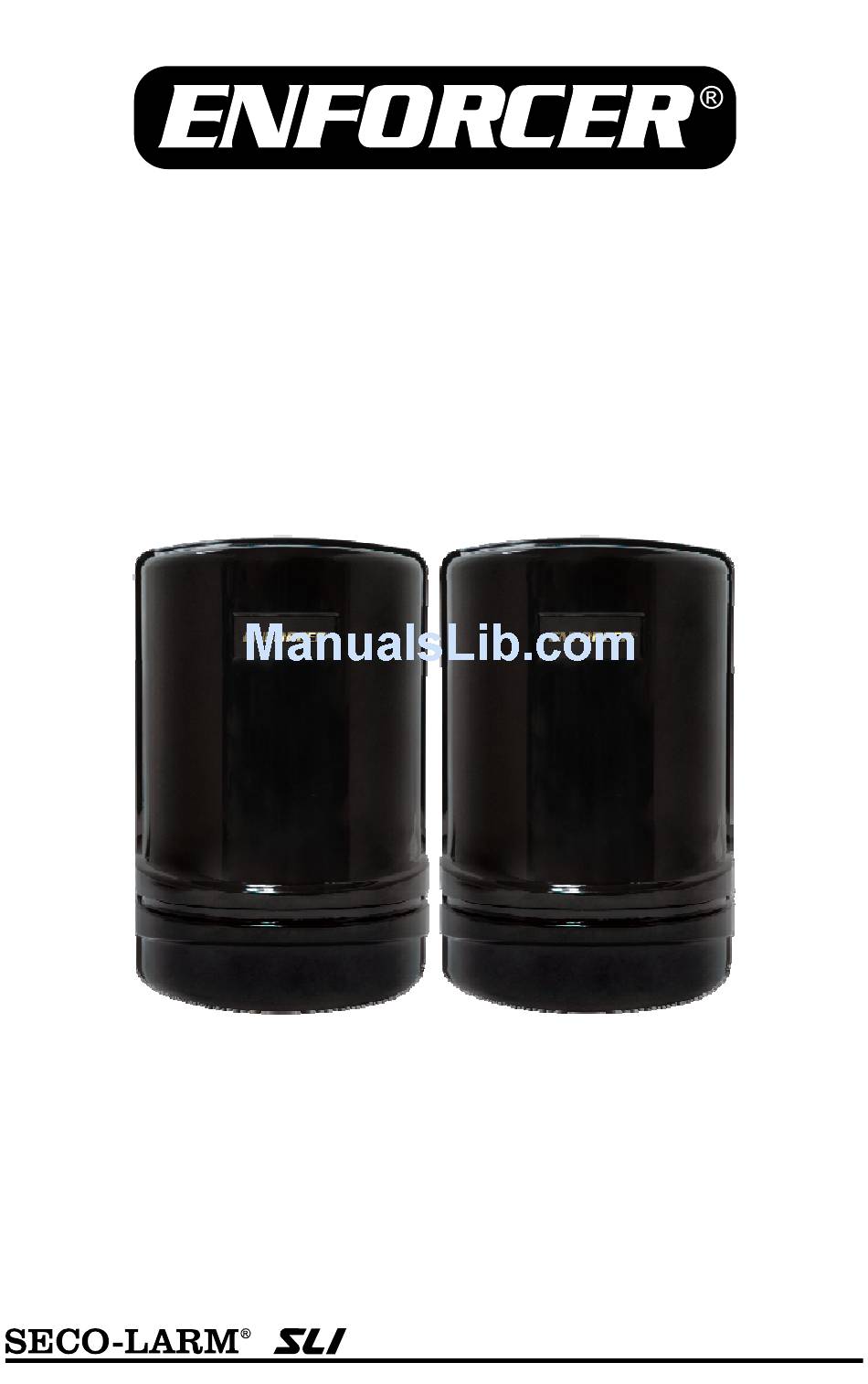

ENFORCER E-964-S50TB Manual

Multi-frequency single photobeam

Download this manual

Multi-Frequency Single Photobeam

 4 selectable frequencies to reduce interference

 Small size for a less conspicuous installation

 Simple to install

 Signal strength indicator for easier alignment

 Weatherproof for indoor/outdoor use (IP65)

E-964-S50TB

Manual

 Built-in AGC control to filter out lighting

disturbances

 LED indicators for power, signal strength,

and trigger

 Mounting hardware included

Need help?

Do you have a question about the E-964-S50TB and is the answer not in the manual?

Page 1 E-964-S50TB Multi-Frequency Single Photobeam Manual  4 selectable frequencies to reduce interference  Built-in AGC control to filter out lighting  Small size for a less conspicuous installation disturbances  LED indicators for power, signal strength,  Simple to install and trigger ...
Page 2 ENFORCER Multi-Frequency Single Photobeam Specifications: Number of beam channels Single infrared beam Number of beam frequencies Sensor range 3~50ft (1~15m) Infrared LED wavelength 940nm LED beam spread angle Approximately ±10° Interrupt speed* 50ms Input power 10~24VDC 15mA@12VDC Transmitter Current draw...
Page 3 ENFORCER Multi-Frequency Single Photobeam Sample Installation: NOTE: Do not mount the E-964-S50TB where it is exposed to direct sunlight to prevent sensor damage. NOTE: For best operation, allow a minimum of 40 inches (1 meter) between the transmitter and receiver.
Page 4 ENFORCER Multi-Frequency Single Photobeam Frequency Selection Chart: Important: Transmitter and receiver must be set to the same frequency. Troubleshooting:  Object may have a reflective surface which confuses the Sensor does not detect the object sensor. Try changing the angle of the sensor ...
