(If the connector does not fit you will
need one of the optional cables as
a replacement for your phone cable.
This cable has a smaller connector
on one end, so try it both ways.)

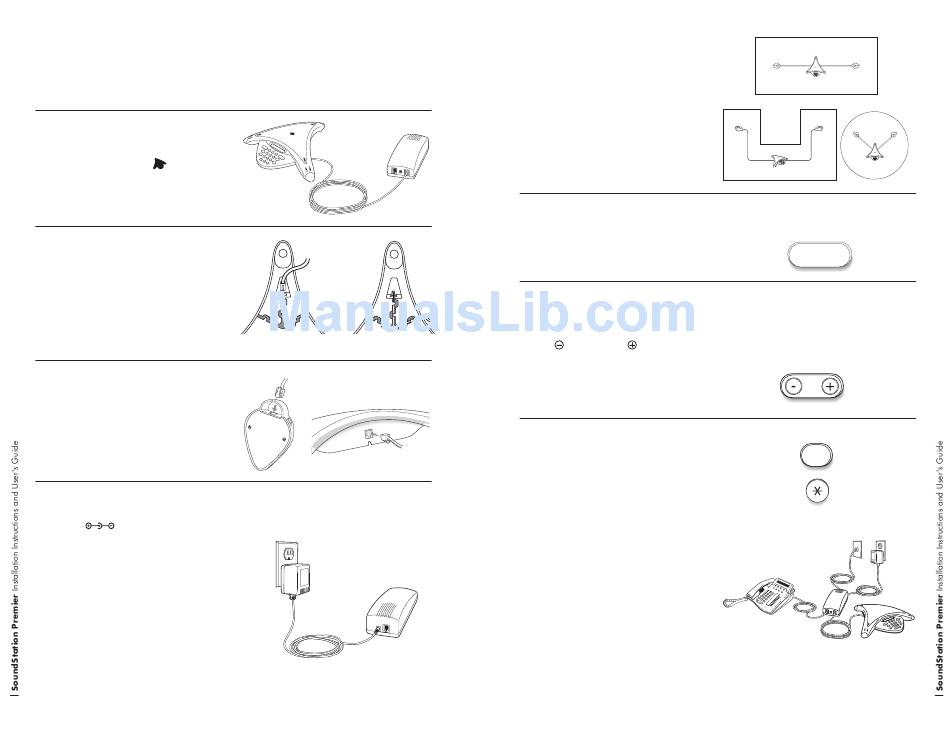

3. Plug the long SoundStation Premier
cable into the jack on the 500D/550D
Interface Module labeled with the
SoundStation Premier ( )icon as
shown.
4. Plug the other end into the slot under
the SoundStation Premier 500D/550D
Console as illustrated.
Then thread the cable through the
channels on the underside of the
console as shown at right.
5. The SoundStation Premier 550D
is designed for greater room
coverage with extended microphones.
If using the optional extended
microphones, connect to SoundStation
Premier 550D as shown at right.
6. Plug the Power Adapter Cable into
the 500D/550D Interface Module jack
marked then plug the Power
Adapter into the electrical outlet.
The first time the SoundStation Premier
500D/550D is powered up and
connected to the network through the
500D/550D Interface Module, it will
run a brief self-test and synchronize
itself with your telephone network.
During this time the LEDs will blink.
When the process is complete you
will hear a "bong" tone and the
LEDs will switch off. (This process
can take 20 seconds.)
4
Any digital phone supported by your
telephone network can be connected
to the phone jack on the 500D/550D
Interface Module.
500D/550D
Interface Module
SoundStation Premier
500D/550D Console
Extended SoundStation Premier
Microphone 550D Console
Electrical
Outlet
Power
Adapter
500D/550D
Interface Module
7. Place the SoundStation Premier
500D/550D on a flat, stable surface
in the center of the room.
If using the extended hypercardiod
microphones with the 550D, for the
best coverage, position as shown in
the examples to the right.
8. Press to hear a dial tone.
ON/OFF
The microphone status LEDs on the
top of the console will show a steady
9. Press again and while
ON/OFF
the phone is off adjust the ringer
volume on the SoundStation Premier
500D/550D by pressing SHIFT
then VOL or VOL .
.To program your phone number, press
10
then press the key.
SHIFT CONF
Enter the phone number with area code,
using the * key to enter a space.
When finished, press again.
CONF
To retrieve the phone number at any
time during a phone call, press
SHIFT
then press the key. The phone
CONF
number will be displayed for 10
seconds, after which the display will
return to its previous mode. This display
will default to this number while the
conference phone is inactive.
You are now ready to use your
SoundStation Premier 500D/550D.
green when the system is on.
Press to terminate any
ON/OFF
conference call.
ON/OFF
There are four settings: OFF, LOW,
MID, and HIGH. The levels will be
heard after each key press and shown
on the display. After 5 seconds the
display will return to its previous mode.
RINGER VOL
VOL
THIS PHONE #
CONF
L09/Volumn button
