AXA Remote 2.0 Instructions

AXA Remote 2.0
Remote-controlled window opener
Information
You have just acquired a high quality AXA product.
The instructions below must be followed closely in order to
effectively assemble and operate this product.
88
38
310
Implementation:
Top and side-hung windows, opening outwards
Package contents
(2x) AAA Batteries
1.
(4x) AA Batteries
2.
(1x) Closing unit
3.
(1x) Window casing plate
4.
2
1
3

User manual

Remote control (figure ):
A
The remote control has 3 buttons: Open, Stop and Close.
When the Open or Close buttons are pressed briefly, the
window will fully open or close.
When the Open or Close buttons are pressed continuously,
the window will open or close as long as the button is pressed.
When the Stop button is pressed, the movement will be
stopped.
Always point the remote control at the front of the
closing unit (figure ).
3 B
Configuring remote control:
1 Place 2x AAA batteries
and 4x AA batteries
2
2 The LED light in the closing unit will come on for 20 seconds
(green). Press the Open button (top button) on the remote
control. The light will briefly turn off when configuration has
taken place.
1
26
26
50
(1x) Drilling template
5.
(1x) Cover
6.
(1x) Window plate
7.
(1x) Screw ring
8.
4
in the remote control
1 12
in the closing unit (figure
C
Assembly tools (recommended):
Tape measure, (cordless) drill, screwdriver, Ø 2 mm drill bit,
pencil or stiletto, screw ring and socket wrench
Assembly location
Hinge side
Top-hung
window
Stay
min. 38 cm, max. 100 cm
Minimum window height: 30 cm.
Maximum range remote control: distance 10 m.
(2x) Screws 3.5 x 30 mm
9.
10. (9x) Screws 4.0 x 40 mm
11. (1x) Socket wrench

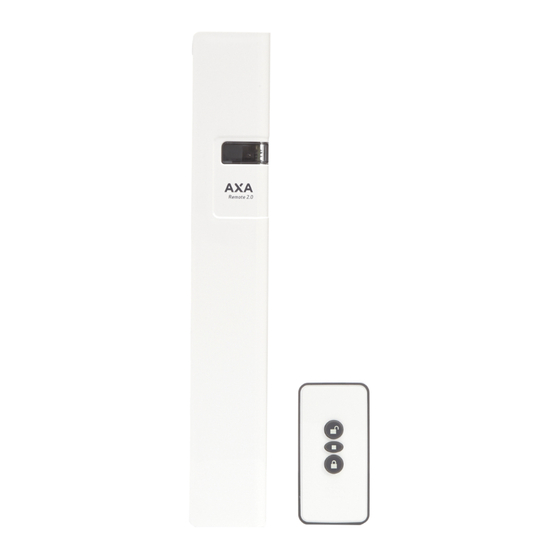

12. ((1x) Remote control
5
7
A
Open
Stop
Close
C
).
EMC 2004/108/EC
Minimum required
assembly space:
380 mm
Window
Window casing
9
8
6
B
POLICE
HALLMARK
SAFE LIVING
40 mm
38 mm
11
10
12
