AXA Remote 2.0 Manual

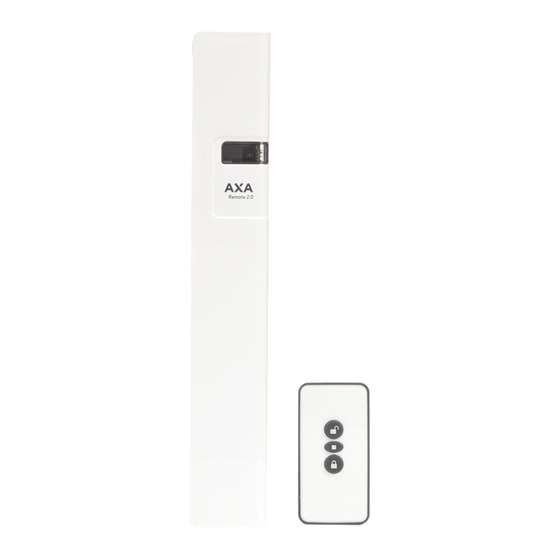

AXA Remote 2.0
Remote-controlled window opener
Information
You have just acquired a high quality AXA product.
The instructions below must be followed closely in order to
effectively install and operate this product.
Application:
Casement windows, outward-opening
Installation tools (recommended):
Tape measure, (cordless) drill,
screwdriver, Ø 2 mm drill bit, pencil
or bradawl, screw hook and allen key
Package contents
(2x) AAA Batteries
1.
(4x) AA Batteries
2.
(1x) Closing unit
3.
(1x) Window casing plate
4.
2
1
3
User manual
Remote control (figure ):
A
The remote control has 3 buttons: Open, Stop and Close.
If the Open or Close button is pressed briefly, the window opens
or closes fully.
If the Open or Close button is pressed for longer, the window
opens or closes while the button is kept depressed. If the Stop
button is pressed, the movement stops.
Always point the remote control at the front of the
closing unit (figure ).
B
3
Configuring remote control:
1 Insert 2x AAA batteries
4x AA batteries into the closing unit (figure
2
2 The LED light in the closing unit will come on for 20 seconds
(green). Press the Open button (top button) on the remote
control. The light will briefly turn off when configuration is
taking place.
1
310
38
(1x) Drill template
5.
(1x) Cover
6.
(1x) Window plate
7.
(1x) Screw hook
8.
4
into the remote control
1 12
).
C
EN
Installation
location:
Casement
window
min. 30 cm,
max. 100 cm
Minimum window width: 30 cm. Maximum range of
remote control: distance 10 m.
Always mount the product vertically on a fully
functioning and glazed window, preferably in the final
position.
50
(2x) Screws 3.5 x 30 mm
9.
10. (9x) Screws 4.0 x 40 mm
11. (1x) Allen key
12. (1x) Remote control
5
7
A
Open
Stop
Close
C
and
EMC 2004/108/EC
Casement
window
min. 30 cm,
max. 100 cm
9
8
6
B
Minimum
required
installation
space:
40 mm
38 mm
11
10
12
