Summary of Contents for Dwyer Instruments TSC Series

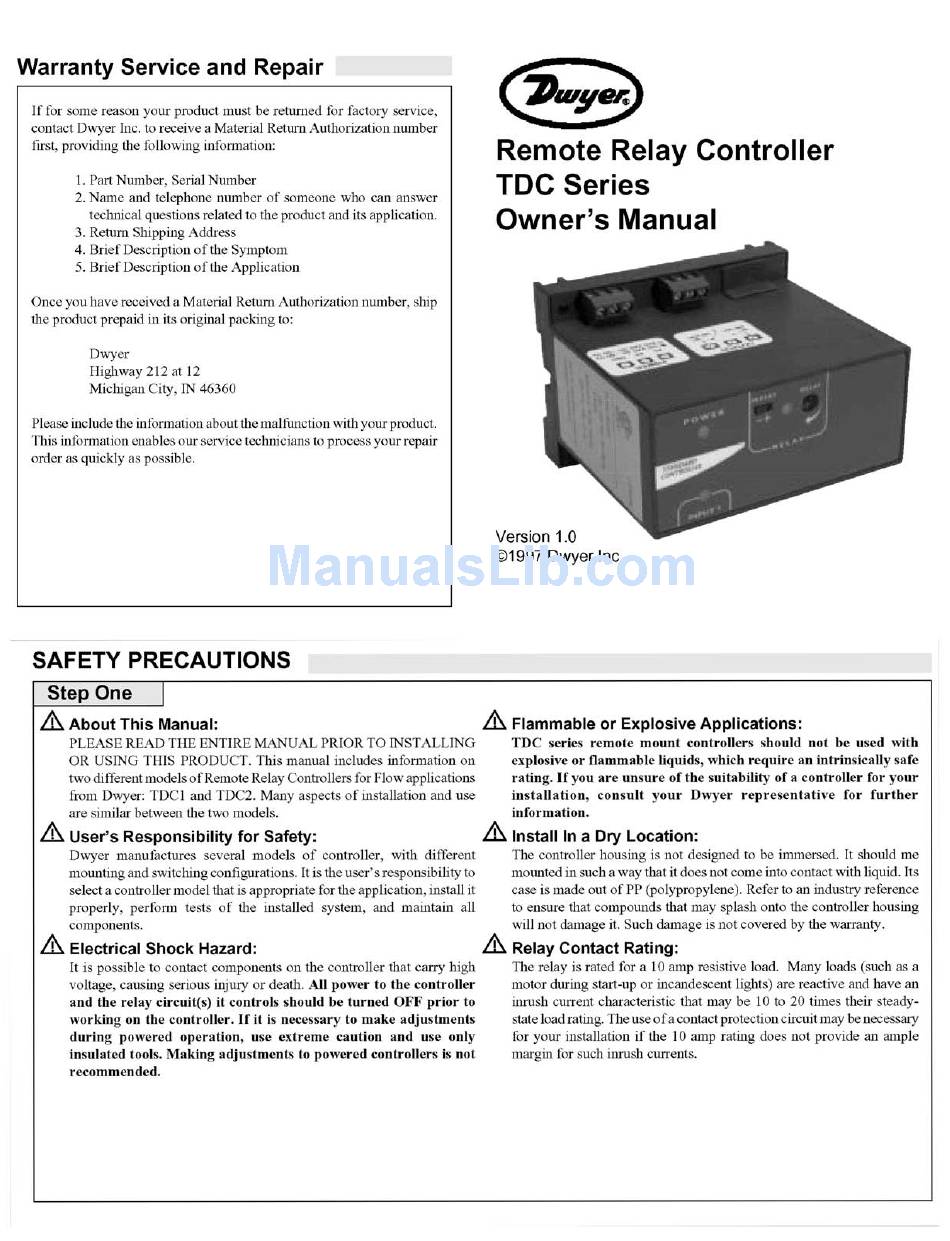

- Page 2 SPECIFICATIONS Step Two Dimensions Supply voltage: 120 / 240 VAC, 50 - 60 Hz. Consumption: 5 Watt 3.9" Sensor supply: 13.5 VDC @ 100 mA Relay type: TDC1: (1) SPDT TDC2: (1) SPDT, (1) Latched SPDT Relay load: 250 VAC, 10A, 1/2 hp. P O W E R I N V E R T D E L AY...
- Page 3 GUIDE TO CONTROLS INSTALLATION Step Three Step Four Panel DIN Rail Mounting The controller may be mounted by either a back panel using two screws through mounting holes located at the corners of the controller or by P O W E R snapping the controller on 35 mm DIN Rail.
- Page 4 INSTALLATION TROUBLESHOOTING Step Five Step Six VAC Power Input Wiring Controller Logic Note: Polarity does not matter with the AC input terminal For all controllers, please use the following guide to understand the operation of the Dwyer TDC1/TDC2 controllers. Ground Ground Neutral Neutral...
