DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, IN 46361, U.S.A.
All manuals and user guides at all-guides.com
Series DH Digihelic
Specifications - Installation and Operating Instructions
®
Differential Pressure Controller
.ca
Phone: 219/879-8000
www.dwyer-inst.com
Fax: 219/872-9057
e-mail: info@dwyer-inst.com
Bulletin B-32
1.800.868.7495

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digihelic DH Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dwyer Instruments Digihelic DH Series

Summary of Contents for Dwyer Instruments Digihelic DH Series

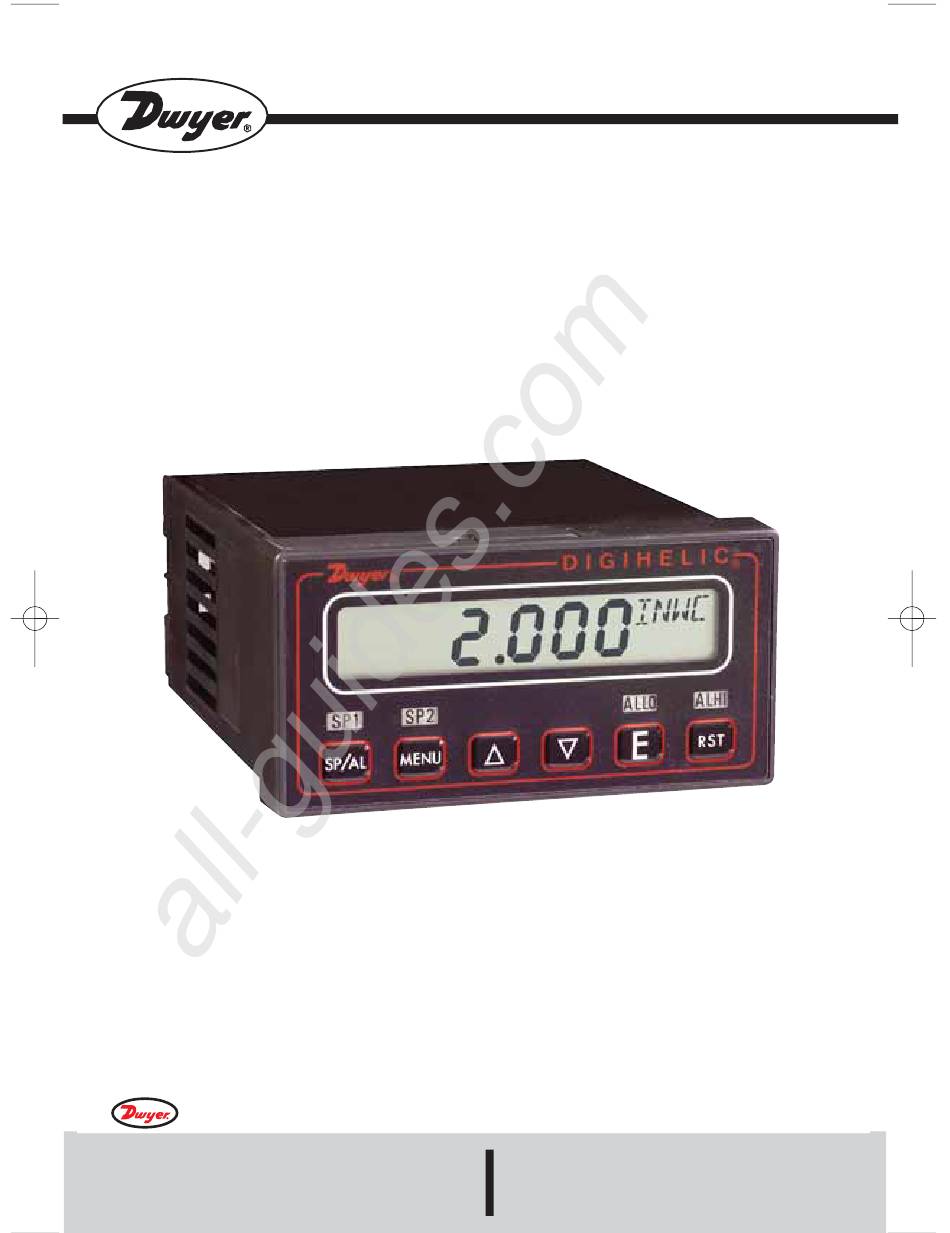

  • Page 1 All manuals and user guides at all-guides.com Bulletin B-32 Series DH Digihelic ® Differential Pressure Controller Specifications - Installation and Operating Instructions QualityInstruments-Direct 1.800.868.7495 DWYER INSTRUMENTS, INC. Phone: 219/879-8000 www.dwyer-inst.com P.O. BOX 373 • MICHIGAN CITY, IN 46361, U.S.A. Fax: 219/872-9057 e-mail: info@dwyer-inst.com...

  • Page 2: Panel Cut Outs

    All manuals and user guides at all-guides.com DIMENSIONS 3-19/32 [91.28] 4-1/2 [114.30] 1-3/4 1-15/16 [44.45] [49.21] 3-25/32 [12.70] [96.04] 4-1/2 [114.30] Face Designed to Meet NEMA 4X (IP66) PANEL CUT OUTS Horizontal 3.620 in. + 0.032 - 0.0 (92.00 mm + 0.8 - 0.0) 1.772 in.
  • Page 3 All manuals and user guides at all-guides.com SPECIFICATIONS Service: Air and non-combustible, compatible gases. Wetted Materials: Consult factory. Housing Material: ABS plastic, UL approved 94-V-0. Accuracy: ±0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up). Stability: < ±1% per year. Pressure Limits: Ranges ≤...
  • Page 4 All manuals and user guides at all-guides.com WIRING WIRING SP2 OR SP2 OR 100-240 VAC or 100-240 VAC or ALARM ALARM 132-240 VDC POWER 132-240 VDC POWER RELAY RELAY RELAY RELAY NOTE1 NOTE1 3/8A 250VAC 3/8A 250VAC MEDIUM LAG MEDIUM LAG Pressure Pressure High Pressure Port...

  • Page 5: Installation

    All manuals and user guides at all-guides.com It is not necessary to remove the control chassis from the housing for installation. If the control chassis is removed from the housing, you must follow industry standard practice for control and protection against Electro-Static Discharge (ESD).

  • Page 6: Key Functions

    All manuals and user guides at all-guides.com MULTIPLIER DESCRIPTOR MULTIPLIER DESCRIPTOR VISIBLE WITH S VISIBLE WITH SOME VELOCITY ME VELOCITY PRESSURE PRESSURE AND FLOW RANGE AND FLOW RANGE FRONT PANEL FRONT PANEL VALUE VALUE UNITS UNITS DESCRIPTOR DESCRIPTOR ALLO ALLO ALHI ALHI DESCRIPTOR...

  • Page 7: Set Point Adjustment

    All manuals and user guides at all-guides.com SETTING SET POINTS AND ALARMS SP/AL SP/AL hot key provides direct access to the Set Point and Alarm MENU. The Set Point and Alarm MENUS that are displayed are based upon the Control (CtrL) SUB MENU.
  • Page 8 All manuals and user guides at all-guides.com MENU MAP MENU MAP MAIN MENUS SUB MENUS SETTINGS SETTINGS SP/AL SP/AL MENU MENU MENUS UNAVAILABLE BI-DIRECTIONAL RANGES AND RANGES ABOVE SP/AL 25 IN. W.C. MENU SP/AL QualityInstruments-Direct 1.800.868.7495 CONTINUED CONTINUED MENU MENU...
  • Page 9 All manuals and user guides at all-guides.com SETTINGS SETTINGS MAIN MENUS SUB MENUS SP/AL SP/AL MENU MENU SP/AL MENU SP/AL CONTINUED CONTINUED MENU MENU QualityInstruments-Direct 1.800.868.7495...
  • Page 10 All manuals and user guides at all-guides.com SETTINGS MAIN MENUS SUB MENUS SP/AL SP/AL Menus present only in pressure operation MENU MENU SP/AL MENU SP/AL MENU MENU QualityInstruments-Direct 1.800.868.7495 PAGE 5...
  • Page 11 All manuals and user guides at all-guides.com Main Menu Selections (Upper Right Display Reads MENU ) SECr Security - Lock out access to Set Point and Alarm settings, or lock out access to all settings. OPEr Operation - Selection of Pressure, Velocity or Flow and corresponding engineering units.

  • Page 12: Main Menus And Sub Menus

    All manuals and user guides at all-guides.com MAIN MENUS and SUB MENUS SECr (Security) MAIN MENU SECr is the only SUB MENU in the security MENU. When the security SUB MENU is selected, the present security level is displayed in the upper right hand display.
  • Page 13 All manuals and user guides at all-guides.com PrES (Pressure) SUB MENU For pressure measurement, the following units are available: INWC MMHG - Inches of water column - Millimeters of mercury FTWC MBAR - Feet of water column - Millibar MMWC - Millimeters of water column - Pascal CMWC...
  • Page 14 All manuals and user guides at all-guides.com FLO (Flow) SUB MENU For flow measurements the following units are available: SCFM - Standard cubic feet per minute M^3H - Cubic meters per hour FLO r (Flow Range) SUB MENU - 99.99 x 1K flow range - 999.9 x 1K flow range Tables 3 -6 show the flow ranges available, and the maximum duct size that can be set for each input range.
  • Page 15 All manuals and user guides at all-guides.com ArEA XDIM and YDIM SUB MENUS These SUB MENUS become accessible if the instrument is set for flow. When meas- uring flow, the area of the duct must be specified. Tables 3 and 4 show the input range vs maximum flow and duct size.
  • Page 16 All manuals and user guides at all-guides.com CtrL (Control) SUB MENU - Single set point - Two fully independent set points SPAL - Single set point and alarm 1SP (SP1 Reverse or Direct Acting) SUB MENU - Direct. Relay turns on with increasing pressure - Reverse.

  • Page 17: Alarm Adjustment

    All manuals and user guides at all-guides.com CtrL The following alarm function SUB MENUS are activated when is set to SPAL AL (Alarm Type) SUB MENU - High alarm - Low alarm HILO - For a high/low guardband type alarm ALARM ADJUSTMENT Alarm settings are dependent upon the selected alarm mode.
  • Page 18 All manuals and user guides at all-guides.com ALrE (Alarm Reset) SUB MENU ONOF - Automatic reset HOLD - Manual reset. An alarm is reset by the RESET key on the front panel, or an external reset switch. AL.H (Low Alarm Inhibit) SUB MENU - Alarm inhibit is on - Alarm inhibit is off AL.H...
  • Page 19 All manuals and user guides at all-guides.com rESO (Resolution) SUB MENU The Digihelic ® Controller is capable of displaying four digits of resolution. However, at very low pressures the instability of the pressure may cause fluctuations in the least significant digit causing the least significant digit to be 3DIG of little value.
  • Page 20 Modbus ® is a registered trademark of Schnieder Automation and Company. QualityInstruments-Direct 1.800.868.7495 ©Copyright 2009 Dwyer Instruments, Inc. Printed in U.S.A. 7/09 FR# 443246-00 Rev. 4 DWYER INSTRUMENTS, INC. Phone: 219/879-8000 www.dwyer-inst.com P.O. BOX 373 • MICHIGAN CITY, IN 46361, U.S.A.
