Operating Guide ECL Comfort 310, application P330

5.5 Flow / power limit

A flow or energy meter can be connected (M-bus signal) to the ECL
controller in order to limit the flow or consumed power.
The flow / power limitation can be based on the outdoor
temperature. Typically, in district heating systems a higher flow or
power is accepted at lower outdoor temperatures.

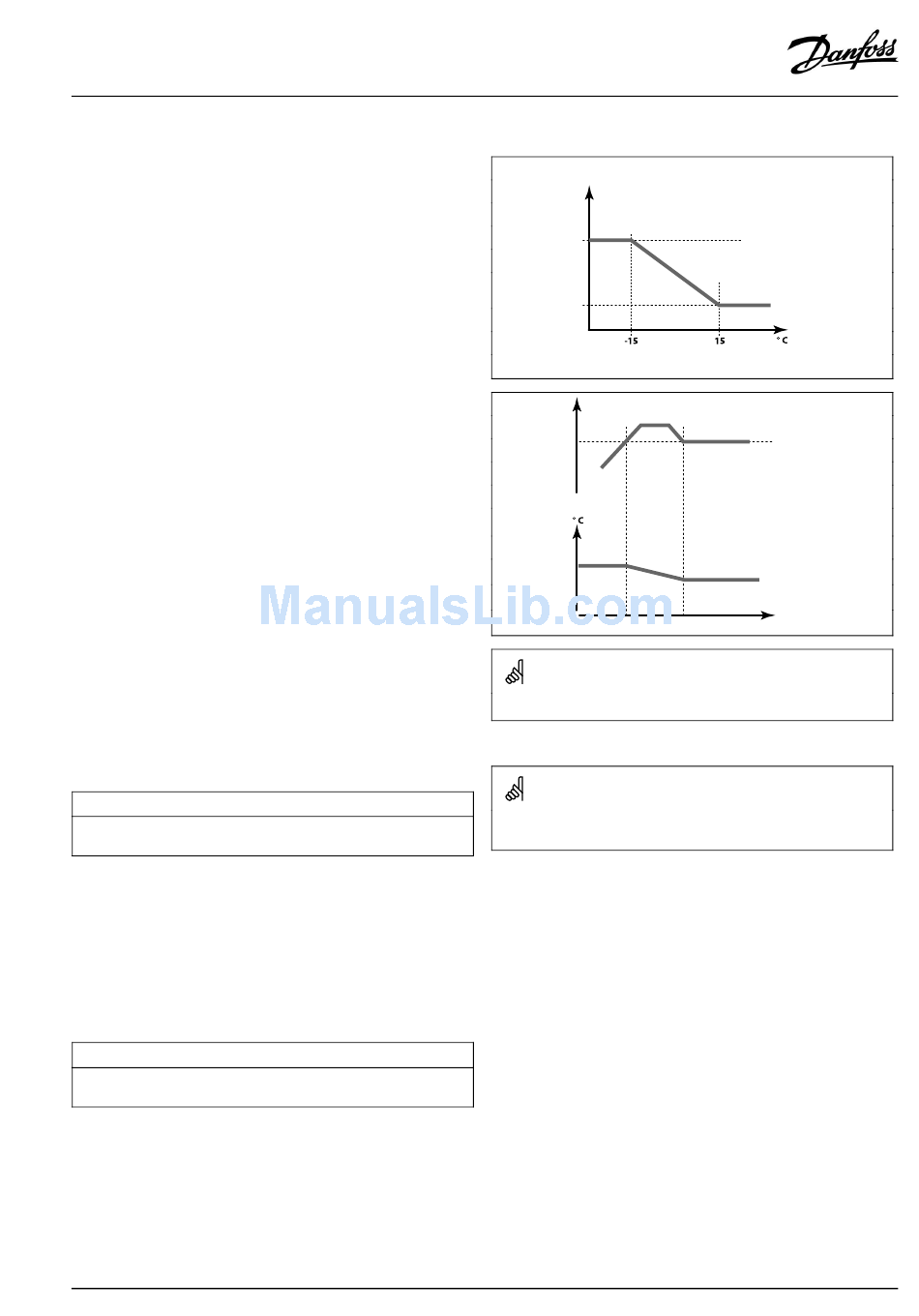

The relationship between the flow or power limits and the outdoor
temperature is set in two coordinates.
The outdoor temperature coordinates are set in 'High T out X1'
and 'Low T out X2' .
The flow or power coordinates are set in 'Low limit Y1' and 'High
limit Y2' . Based on these settings, the controller calculates the
limitation value.
When the flow / power gets higher than the calculated limit, the
controller gradually reduces the desired flow temperature to obtain
an acceptable max. flow or power consumption.
MENU > Settings > Flow / power limit
Input type
Choice of M-bus signal from energy meter number 1 ... 5. Only possible
in ECL Comfort 310.
See Appendix "Parameter ID overview"
OFF:
No M-bus signal acquired.
EM1 ... EM5: Energy meter number.
MENU > Settings > Flow / power limit
Actual (actual flow or power)
The value is the actual flow or power based on the signal from flow / energy
meter.
See Appendix "Parameter ID overview"
VI.GU.O3.02
Flow / power limitation
High limit Y2
Low limit Y1
Flow / power
limitation
Desired flow
temp.
If the 'Adapt. time' is too high, there is a risk of unstable control.
1x109
Flow or power limitation is based on M-bus signal (ECL Comfort 310
controllers only).
1x110
Low T out X2 High T out X1
© Danfoss | 2017.08 | 83
Outdoor temp.
Limit
Time
