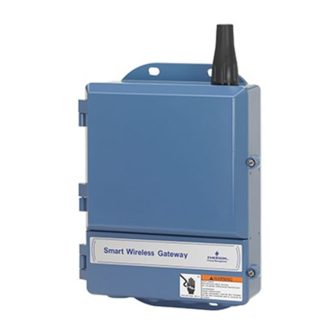

Emerson Smart Wireless Gateway Quick Start Manual
  1. Manuals
  2. Brands
  3. Emerson Manuals
  4. Gateway
  5. Smart Wireless Gateway
  6. Quick start manual

Emerson Smart Wireless Gateway Quick Start Manual

Hide thumbs Also See for Smart Wireless Gateway:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
Quick Start Guide
00825-0200-4420, Rev EA
April 2013
Smart Wireless Gateway

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Wireless Gateway and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Smart Wireless Gateway

Summary of Contents for Emerson Smart Wireless Gateway

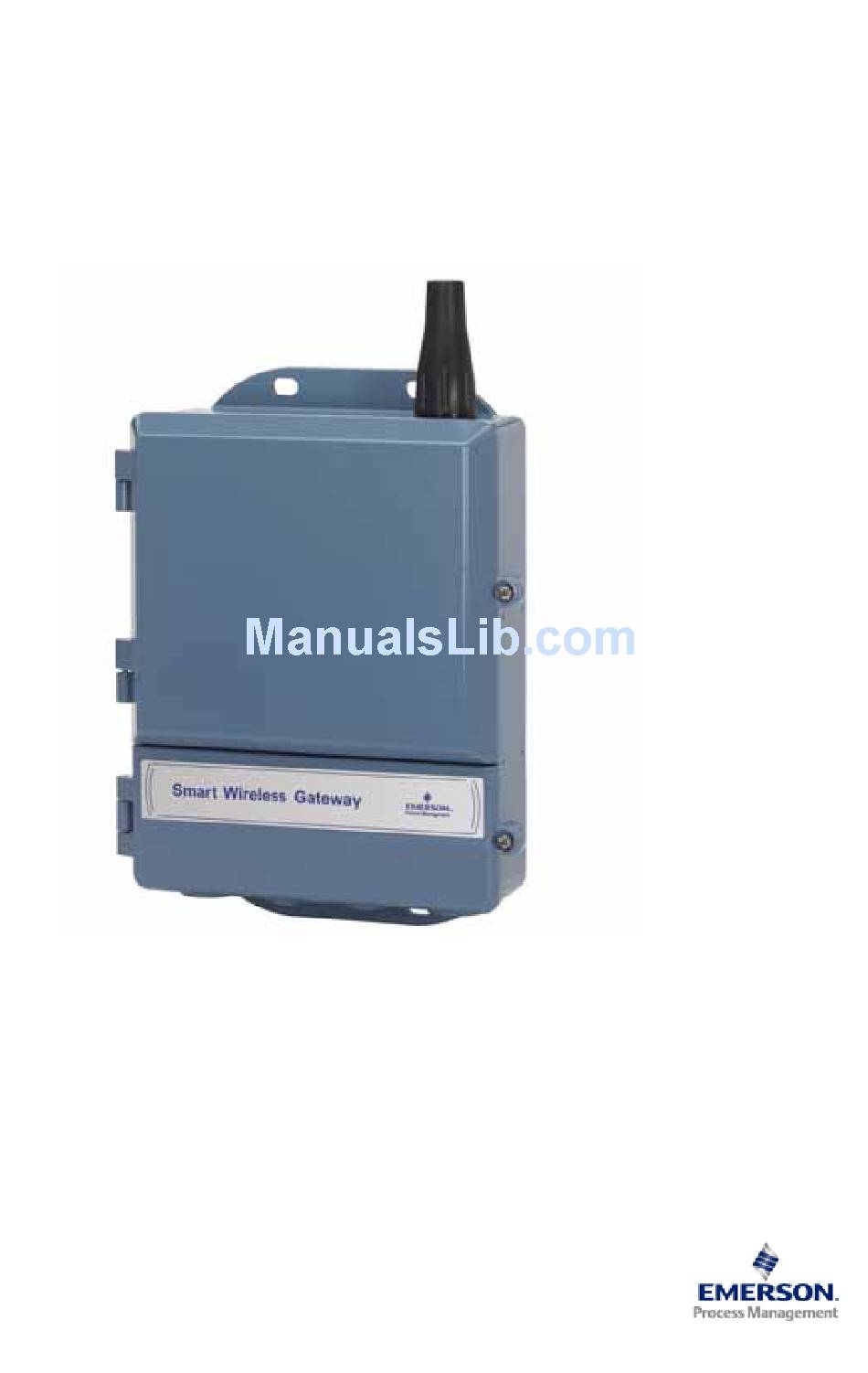

  • Page 1 Quick Start Guide 00825-0200-4420, Rev EA April 2013 Smart Wireless Gateway...
  • Page 2 April 2013 Quick Start Guide NOTICE This installation guide provides basic guidelines for the Smart Wireless Gateway. It does not provide instructions for diagnostics, maintenance, service, or troubleshooting. Refer to the Smart Wireless Gateway Reference Manual (Document Number 00809-0200-4420) for more information and instructions.

  • Page 3: Wireless Considerations

    Wireless considerations Power up sequence The Smart Wireless Gateway (Gateway) should be installed and functioning properly before Power Modules are installed in any wireless field devices. Wireless field devices should also be powered up in order of proximity from the Smart Wireless Gateway beginning with the closest.

  • Page 4: Initial Connection And Configuration

    Initial Connection and Configuration is not required. Proceed to Step 2: Physical Installation, and connect the Gateway to a DeltaV 10.3 or newer control network. Initial connection and configuration To configure the Smart Wireless Gateway, a local connection between a PC/Laptop and the Gateway needs to be established. Powering the gateway Bench top power will be needed to power the Gateway by wiring a 24 VDC (nominal) power source, with at least 250 mA, to the power terminals.
  • Page 5 Quick Start Guide April 2013 Step 1 continued... Figure 2. Gateway PC/Laptop Connection Illustration PC/Laptop Ethernet 1 Receptacle 24 V DC 24 V DC Power Input Power Input Modbus Modbus Not Used Not Used Not Used Not Used Case Case Not Used Not Used Not Used...
  • Page 6 April 2013 Quick Start Guide Step 1 continued... Note If the PC/Laptop is from another network, record the current IP address and other settings so the PC/Laptop can be returned to the original network after the Gateway has been configured. d.
  • Page 7 Quick Start Guide April 2013 Step 1 continued... Configure the Smart Wireless Gateway To complete initial configuration for the gateway: 1. Access the default web page for the Gateway at https://192.168.1.10. a. Log on as User: admin. b. Type in password: default.
  • Page 8 April 2013 Quick Start Guide Step 1 continued...
  • Page 9 Quick Start Guide April 2013 Step 2: Physical installation Pipe mount Tools Needed: 2-in. (51 mm) mounting pipe or mast  -in. (7,9 mm) u-bolts supplied with Gateway  -in. socket-head wrench  For installing the Gateway in a pipe mount: 1.
  • Page 10 If the supplied remote mount antenna kit is not installed per these instructions, Emerson Process Management is not responsible for wireless performance or non-compliance with spectrum regulations.
  • Page 11 Quick Start Guide April 2013 Step 2 continued... The remote mount antenna kit includes coaxial sealant for the cable connections for the lightning arrestor and antenna. Find a location where the remote antenna has optimal wireless performance. Ideally this will be 15-25 ft (4,6 - 7,6 m) above the ground or 6 ft (2 m) above obstructions or major infrastructure.
  • Page 12 April 2013 Quick Start Guide Step 2 continued... Installation of WL3/WL4 option (indoor to outdoor applications): 1. Mount the antenna on a 1.5-2 inch pipe mast using the supplied mounting equipment. 2. Mount the lightning arrestor near the building egress. 3.
  • Page 13 Quick Start Guide April 2013 Step 2 continued... Figure 5. Applying coaxial sealant to cable connections Table 3. Remote Antenna Kit Options Kit Option Antenna Cable 1 Cable 2 Lightning Arrestor Wavelength Dipole 50 ft. (15,2 m) Head mount, jack to plug Omni-Directional LMR-400 Gas discharge tube...

  • Page 14: Connect To The Host System

    April 2013 Quick Start Guide Step 2 continued... WL4* WL4* WL3* WL3* Antenna Antenna Antenna Antenna 10 ft. (3,0 m) cable 20 ft. (6,1 m) cable Lightning Arrestor Lightning Interchangeable Interchangeable Arrestor cables cables 50 ft. (15,2 m) 25 ft. (7,6 m) 30 ft.
  • Page 15 Gateway side. To avoid grounding issues be sure to insulate the shield. Power Wire a 24 VDC (nominal) power source, with at least 250 mA of current, to the power terminals using the Smart Wireless Gateway Terminal Block Diagram Figure 6 shown in...

  • Page 16: Step 3: Software Installation (Optional)

    If the autorun function is disabled on the PC, or installation does not begin automatically, double click D:\SETUP.EXE (where D is the CD/DVD drive on the PC) and click OK. For more information about the Security Setup Utility and AMS Wireless Configurator, see the Smart Wireless Gateway Reference Manual (doc. # 00809-0200-4420).

  • Page 17: Step 4: Verify Operations

    Explore tab using the web interface. The time needed for the network to form will depend on the number of devices. For more detailed installation instructions, see the Smart Wireless Gateway Reference Manual (doc. # 00809-0200-4420). For software and integration support, call the Emerson Global Service Center.

  • Page 18: Product Certification

    Product certification Approved manufacturing locations Rosemount Inc. - Chanhassen, Minnesota, USA Emerson Process Management GmbH & Co. - Karlstein, Germany Emerson Process Management Asia Pacific Private Limited - Singapore Beijing Rosemount Far East Instrument Co., Limited - Beijing, China Telecommunication compliance All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum.
  • Page 19 Quick Start Guide April 2013 European certification N1 ATEX Type n Certificate Number: Baseefa 07ATEX0056X ATEX Marking: Ex II 3 G EEx nA Nl IIC T4 (-40 °C < T < 70 °C) Special Conditions for Safe Use (X) The surface resistivity of the antenna is greater than one gigaohm. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
  • Page 20 April 2013 Quick Start Guide Figure 8. EC Declaration of Conformity for Smart Wireless Gateway EC Declaration of Conformity No: RMD 1067 Rev. H Rosemount Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product,...
  • Page 21 Quick Start Guide April 2013 Schedule No: RMD 1067 Rev. H EMC Directive (2004/108/EC) EN 61326-1: 2006 R&TTE Directive (1999/5/EC) All Models with ”Operating Frequency and Protocol Code A1” EN 301 489-17: V1.4.1 2002 EN 60950-1: 2001 EN 300 328 V 1.6.1 (2004-11) Country Restriction Bulgaria...
  • Page 22 April 2013 Quick Start Guide Schedule No: RMD 1067 Rev. H ATEX Directive (94/9/EC) Model 1420 Wireless Gateway Baseefa07ATEX0056X – Type n Certificate Equipment Group II, Category 3 G (Ex nA nL IIC T4) Harmonized Standards EN60079-0: 2006; EN60079-15: 2005 Baseefa07ATEX0057 –...
  • Page 23 Quick Start Guide April 2013...
  • Page 24 © 2013 Rosemount Inc. All rights reserved. All marks property of owner. Instrument Co., Limited The Emerson logo is a trade mark and service mark of Emerson Electric Co No. 6 North Street, Hepingli, Rosemount and the Rosemount logotype are registered trademarks of Rosemount Dong Cheng District Inc.
