OmniSistem Magic Box II User Manual

Introduction
Thank you for purchasing Magic Box II. Magic Box II is a 2 channel DMX laser can
be controlled via a standard DMX controller. It is a lightweight, mini intelligent fixture
and is an ideal product for discos, clubs, exhibitions and any place that need visionary
effect. For safe operation, read this manual before powering or installing the fixture,
follow the safety precautions listed below, and observe all warnings printed in this
manual and on the fixture.
Safety Precautions
Do not spill liquids in to or on to your unit. If this ever happens, disconnect the
main power immediately. Do not connect this unit to any dimmer pack.
Always disconnect from main power before making any type of connection.
Be sure to locate this unit in a place with adequate ventilation at least 15 cm from a
wall, and mount this unit in safe and stable matter.
To prevent fire or shock hazard, do not expose this unit to a high temperature or
high humidity area. Please unplug unit when not in use.
Always keep combustible materials away from the fixture.
Class 3B laser should be mounted at or above 3 meters height. Project Class 3B
laser light above eye level. Do not project Class 3B Laser light on specular material.
The entrance to area where Class3B laser is used should be posted with
appropriate warning signs.
This unit is intended for indoor use. Use of this unit outdoors voids all warranties.
Always refer service to a qualified technician. Never look directly into laser beam.
Occasional breaks are necessary to prevent breakdowns.
Caution - Use of controls or adjustments or performance of procedures other
than as specified herein may result in hazardous radiation exposure!
Set Up
Unpacking
Magic Box II comes with: 2 keys, 1 hanging bracket, 2 clamp levers,
2 washers, 1 power cord and 1 user manual. Unpack carefully and be sure that
no damage has occurred during shipping. If there is anything missing or appear
to be damaged please contact your dealer.
Power Connection
Be sure the source voltage in your area matches the
required voltage for your Magic Box II before plugging your unit in. Incorrect
voltage selection will detrimentally affect the operation of this product.
DMX Cable Connection Magic Box II is a 2 channel DMX fixture that can be
operated with universal DMX controller. This unit and DMX controller require a
standard 3-pin XLR connector for data input and data output.
Installation/Mounting
Magic Box II should be properly mounted by using a
suitable hanging clamp and safety cable. Use in a well-ventilated area. Be sure
no ventilation slots are blocked.

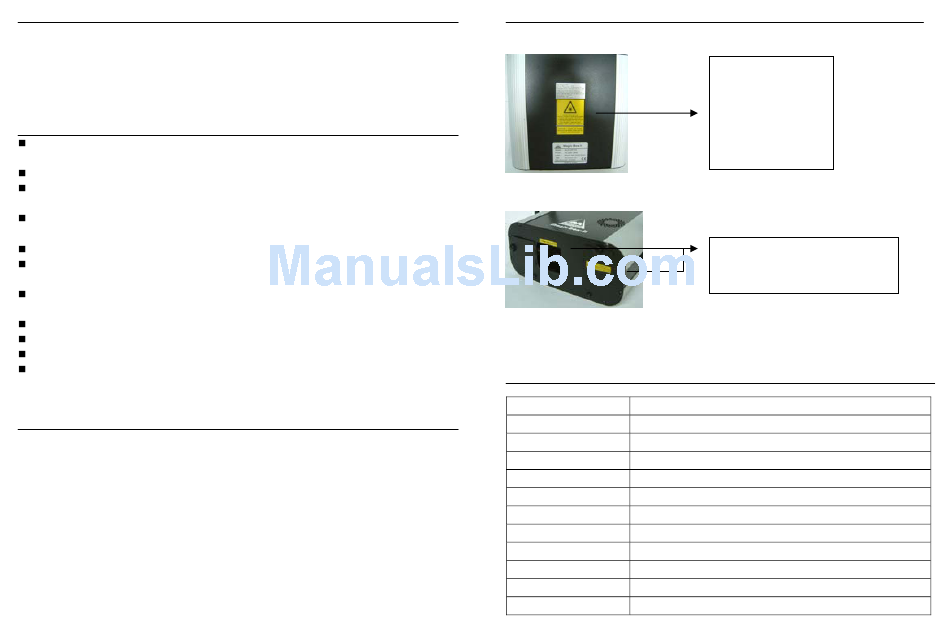

Safety Label Position
Bottom
Front Panel
Specifications
Product Name
Model No. AL20-5R5G/ 20R10G/ 50R20G/ 100R30G/ 200R50G
Laser Diode
Laser Color
Net Weight
Power AC 100V~120V or 220V~240V 50/60HZ
Classification
Size (mm)
Fuse
Housing
Beam Divergence
Operating temperature
Identification label
Certification label
Warning label
Specification label
Laser aperture & aperture label
& warning label
Magic Box II
4.9~200mW red & 4.9~50mW green
Red, Green and Yellow
4Kgs
4.9~20mW: 3R/ 30~200mW: 3B
L220 × W280 × H172
20mm×2A
Metal
< 1.5 mrad
18℃~25℃
